Pfaff 438 Series User Manual

Adjustment:
5.1

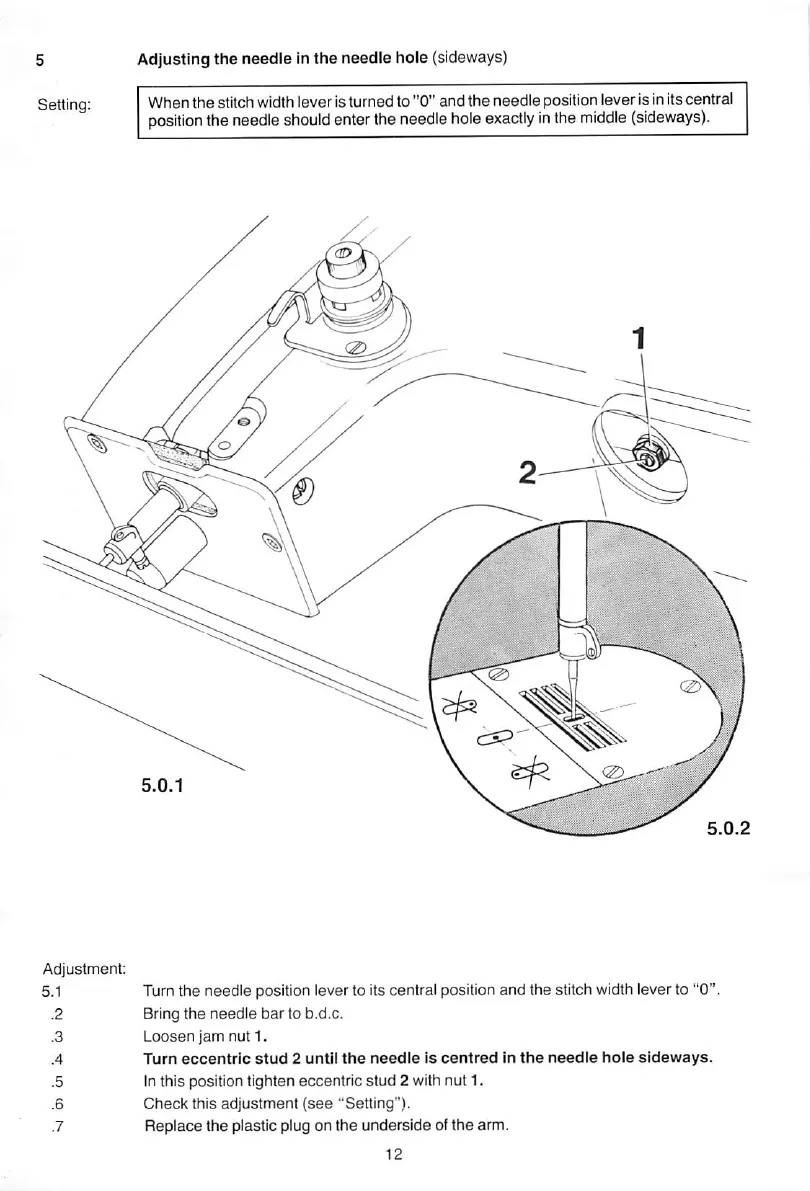

Adjusting the needle Inthe needle hole (sideways)
When the stitch widthlever is turned to "0" and the needie position lever is initscentral
position the needie shouid enter the needle hole exactly in the middle (sideways).
m
I
Turnthe needie position iever to its central positionand the stitch widthleverto "0'
Bring the needle bar to b.d.c.
Loosen jam nut 1.
Turn eccentric stud 2 until the needle Is centred In the needle hole sideways.
In this position tighten eccentric stud 2 with nut 1.
Check this adjustment (see "Setting").
Replace the plastic plug on the underside of the arm.
From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
