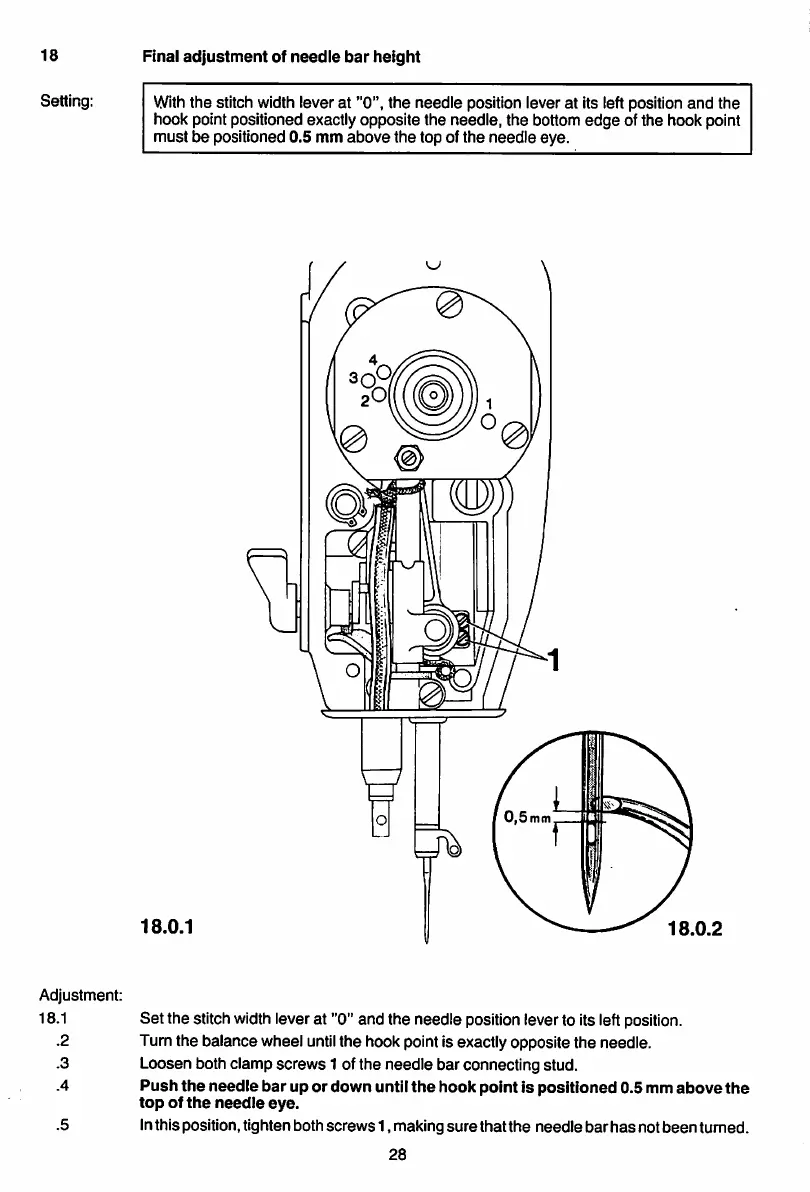

Final adjustment of needle bar height
With the stitch width lever at "0", the needle position lever at its left position and the
hook pointpositioned exactly opposite the needle, the bottom edge ofthe hook point
must be positioned 0.5 mm above the top of the needle eye.
18.0.1
V
18.0.2
Set the stitch widthlever at "0" and the needle positionlever to its leftposition.
Turn the balance wheel untilthe hook point is exactly opposite the needle.
Loosen both clamp screws 1 ofthe needle bar connecting stud.
Push the needle bar up or down until the hook pointis positioned 0.5 mm above the
top of the needle eye.
Inthis position, tighten bothscrews1, making sure that the needlebar has not been tumed.
28
