8
Setting:
Adjustment:
8.1
.4
.5
.6
.7
.8
.9
.10
.11
Adjusting
the
needle
position
lever

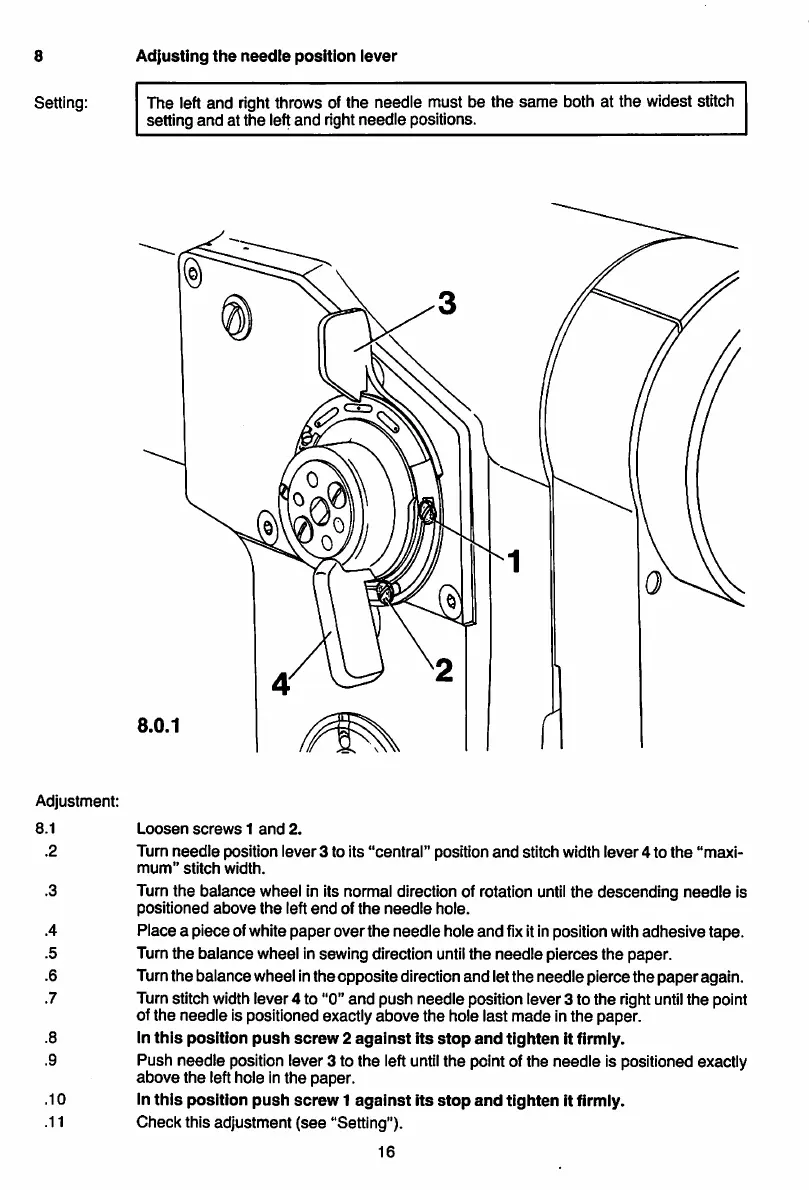

The left and rightthrows of the needle must be the same both at the widest stitch
setting and at the leftand rightneedle positions.
8.0.1
Loosen
screws
1
and
2.
Tum needle position lever 3 to Its "central" position
and
stitch width lever 4 to the "maxi
mum"
stitch
width.
Tum the balance wheel in its normal direction of rotation untilthe descending needle is
positioned
above
the
left
end
of
the
needle
hole.
Place a piece ofwhitepaperoverthe needle hole and fixitinpositionwithadhesive tape.
Turn the balance wheel Insewing direction untilthe needle pierces the paper.
Turnthe balancewheel inthe oppositedirection and letthe needlepierce the paperagain.
Turn stitch widthlever 4 to "0" and push needle position lever 3 to the right untilthe point
of the needle Is positioned exactly above the hole last made Inthe paper.
In
this
position
push
screw
2
against
its
stop
and
tighten
it firmly.
Push needle position lever 3 to the leftuntilthe point of the needle Is positioned exactly
above
the lefthole Inthe paper.
In
this
position
push
screw
1
against
its
stop
and
tighten
it firmly.
Check this adjustment
(see
"Setting").
