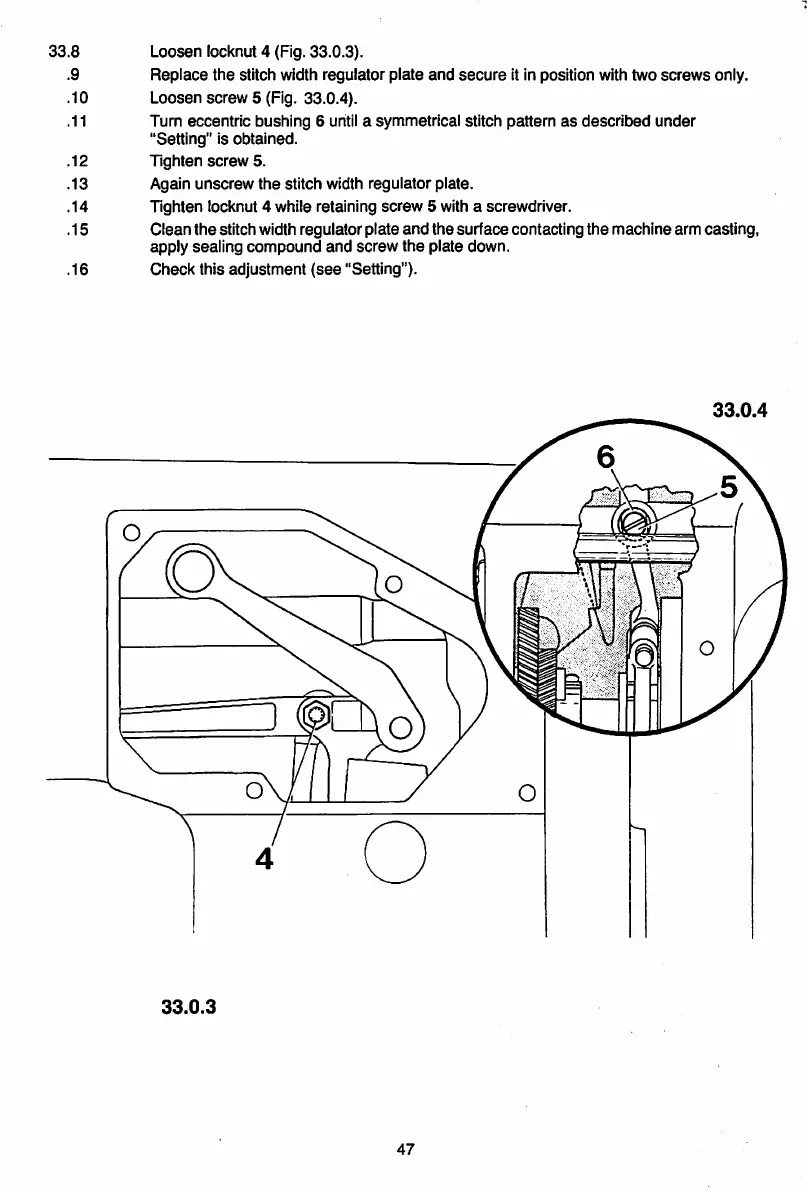

33.8 Loosen lockout 4 (Fig. 33.0.3).
.9 Replace the stitch width regulator plate and
secure
it in position with two
screws
only.
.10 Loosen
screw
5 (Fig. 33.0.4).
.11 Turn eccentric bushing 6
uritii
a symmetrical stitch pattern
as
described
under
"Setting" is
obtained.
.12
Tighten
screw
5.
.13 Again unscrew the stitch width regulator plate.
.14 Tighten lockout 4 while retaining
screw
5 with a screwdriver.
.15 Clean
the
stitch width regulator plate
and
the
surface
contacting the machine arm casting,
apply sealing compound and screw the plate down.
.16
Check
this adjustment
(see
"Setting").
33.0.4
33.0.3
