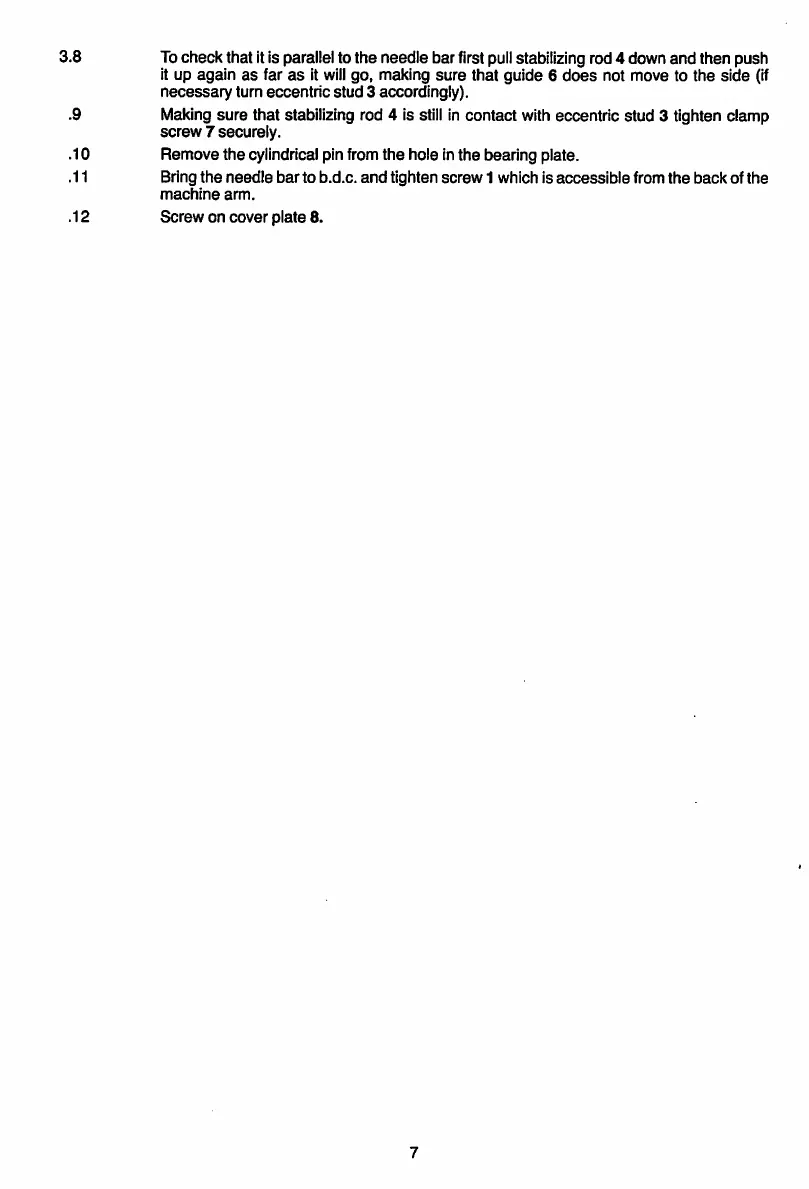

3.8
To
check
that
it
is
parailel
to
the
needle
bar
first
pull
stabilizing
rod
4
down
and
then
push
it
up
again
as
far
as
it
will
go,
making
sure
that
guide
6
does
not
move
to
the
side
(if
necessary
turn
eccentric
stud
3
accordingly).
•9
Making
sure
that
stabilizing
rod
4
is
still
in
contact
with
eccentric
stud
3
tighten
clamp
screw
7
securely.
.10
Remove
the
cylindrical
pin
from
the
hole
in
the
bearing
plate.
.11
Bring
the
needle
bar
to
b.d.c.
and
tighten
screw
1
which
is
accessible
from
the
back
of
the
machine
arm.
.12
Screw
on
cover
plate
8.
From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
8
10
Table of Contents
Table of Contents
2
Preparations for Adjusting
4
Centring the Needle in the Needle Hole (in Sewing Direction)
7
Setting the Stabilizing Rod Parallel to the Needle Bar
8
Stitch Width Control
10
Zeroing the Needle for Straight Stitching
10
Stitch Width Scale
11
Limiting the Maximum Stitch Width
12
Adjustung the Locking Lever
13
Adjusting the Needle Inthe Needle Hole (Sideways)
14
Adjusting the Needle Throw
15
Needle Position "Left, Centre, Right
16
Adjusting the Needle Position Lever
18
Adjusting the Stitch Length Scale Ring
19
Adjustment with Closed Gearcase
20
Zeroing the Bottom Feed
20
Adjustment with Open Gearcase
21
Adjusting the Bottom Feed Driving Motion
22
Bottom Feed Lifting Motion 21+22
23
Tensloning the Driving Belt in the Gearcase
25
Adjusting the Hook Bearing Bracket
26
Preliminary Adjustment of Needle Bar Height
27
Oil Distributor Ring
28
Hook Timing and Hook-To-Needle Clearance
29
Final Adjustment of Needle Bar Height
30
Bobbin Case Opener
31
Position of Bobbin Case Opener 29+30
31
Timing the Bobbin Case Opener
33
Adjusting the Slack Thread Control
34
Clearance between Presser Foot and Needle
35
Feed Dog Height 34+35
36
Oil Check Valve
38
Tension Release Mechanism 37+38
39
Lubrication of Zigzag Eccentric
41
Hook Lubrication
42
Knee Lever Stroke Limitation
43
Knee Lever Play
44
Bobbin Winder
45
Presser Foot Pressure
46
Thread Check Spring and Thread Regulator
46
Annex for Machines Equipped with Zigzag Control -716
47
Needle Vibration
47
Left, Center and Right Needle Positions 46+47
48
Needle Position Lever 48+49
50
