Control elements

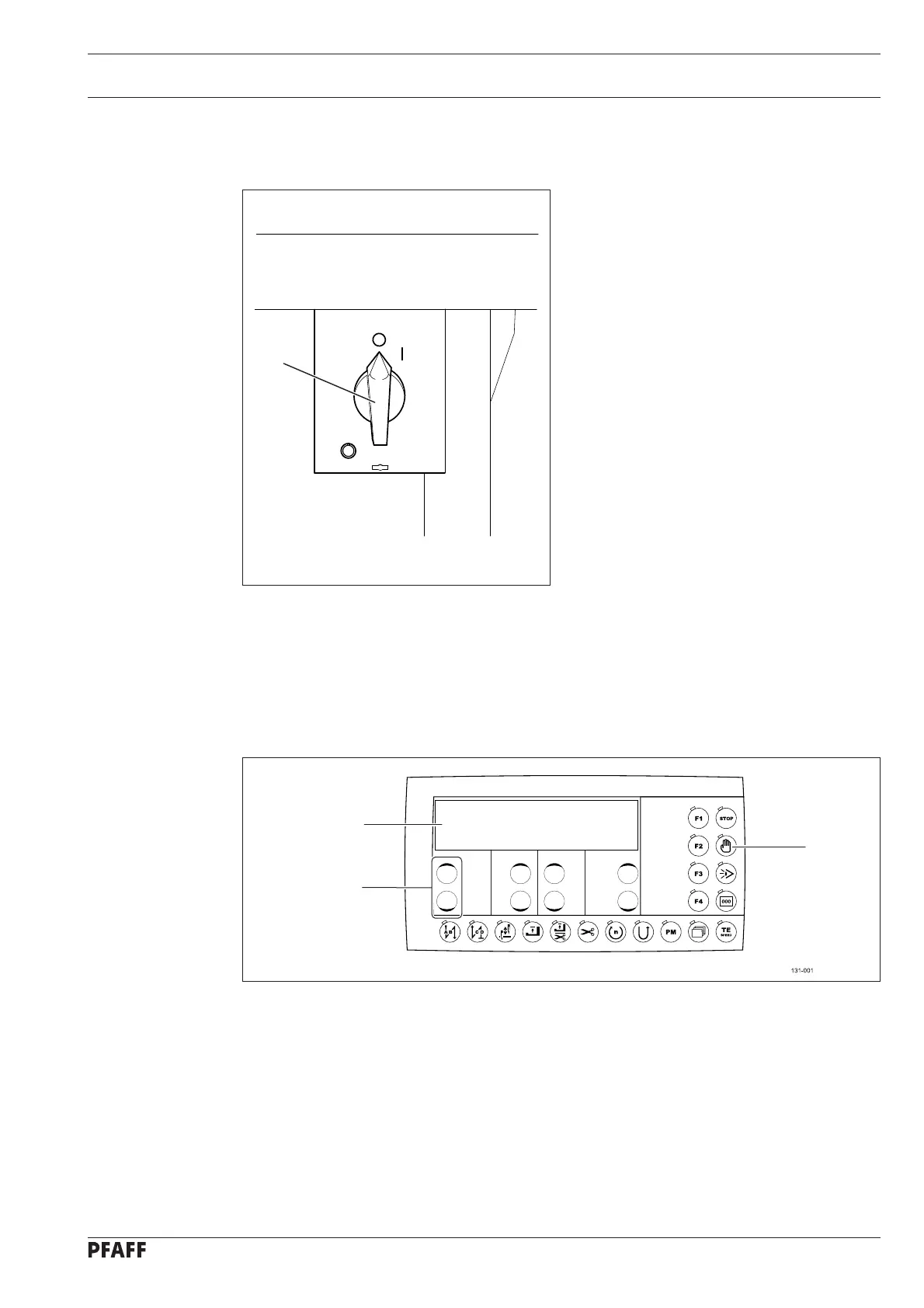

Fig. 6 - 01
6 Control elements
6
.01 Main switch
Turn main switch ● 1 to switch the power
supply of the sewing machine drive on
or off.
1
6.02 Control panel
The control panel is used to display and call up the machine functions for setting up and for
sewing operation, for entering parameter values and for reading error messages and service
settings.
The control panel has the following control and display elements:
The display screen ● 1 consists of a two-line, alphanumerical LCD display with 16 symbols
per line and is used to show relevant information and selection parameters.
The plus-minus keys ● 2 are used to select or alter the functions and parameters shown on
the display.
The function keys ● 3 are used to switch the relevant function on or off. Activated functions
are shown in each case by an illuminated LED.
Fig. 6 - 02
1
3
2
