Service functions
58

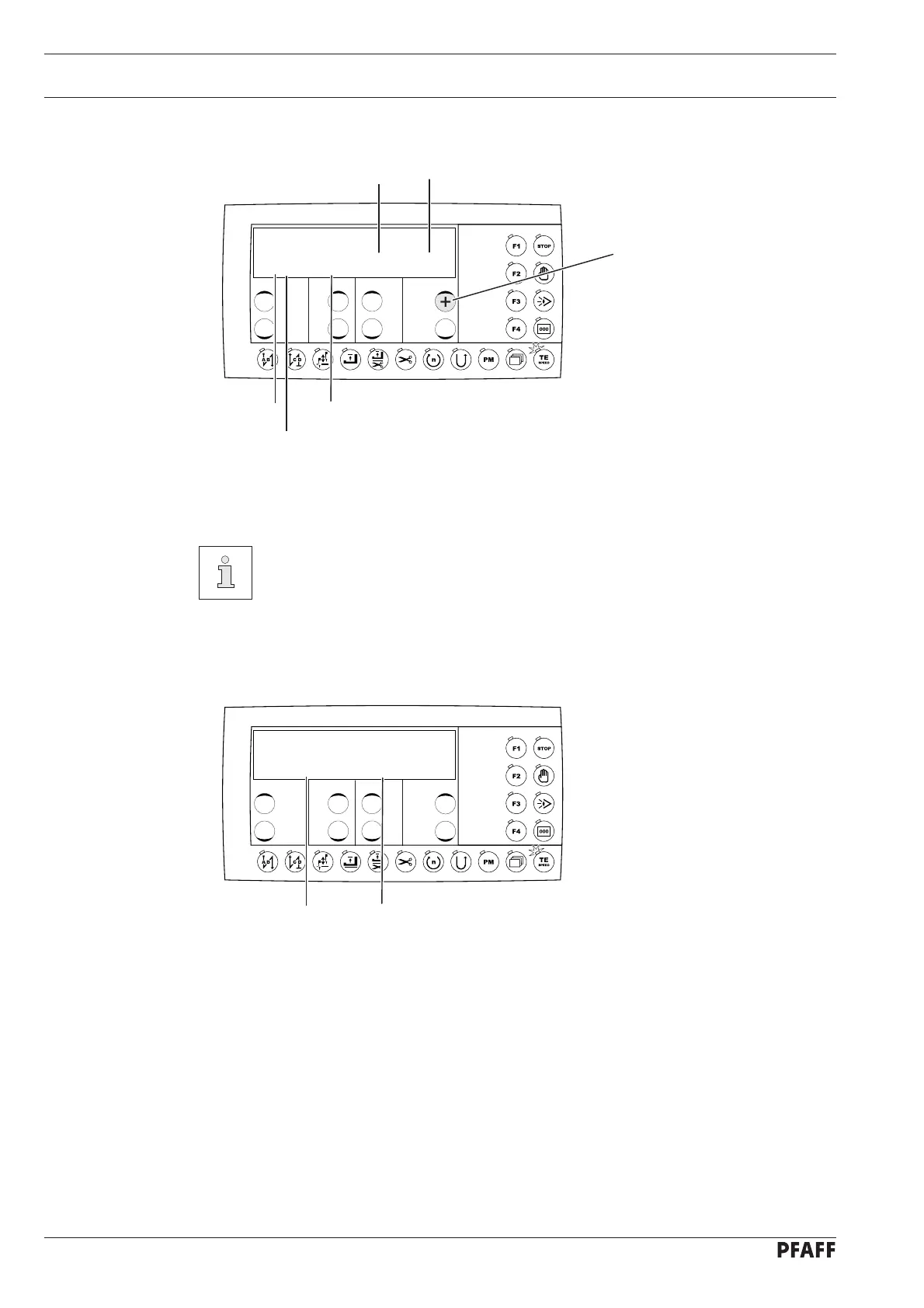

10.02.02 Test block 2 – outputs
Press plus key "D+" to switch on the relevant output for ● 200 ms.
The allocation of the functions of the outputs displayed is shown in the general
plan of Chapter 10.03 Connection plan for connector X5.
A1 X5: 28 0
Output
Output number
Connector
Output status
Contact numberr
D+
10.02.03 Test block 3 – speed control unit
By pressing pedal operation all ● 16 control steps can be called up.
If all displays from -2, -1, 0, 1, 1D to 12D appear, the speed control unit is in order.
SWG -2
Speed control unit
Pedal position
