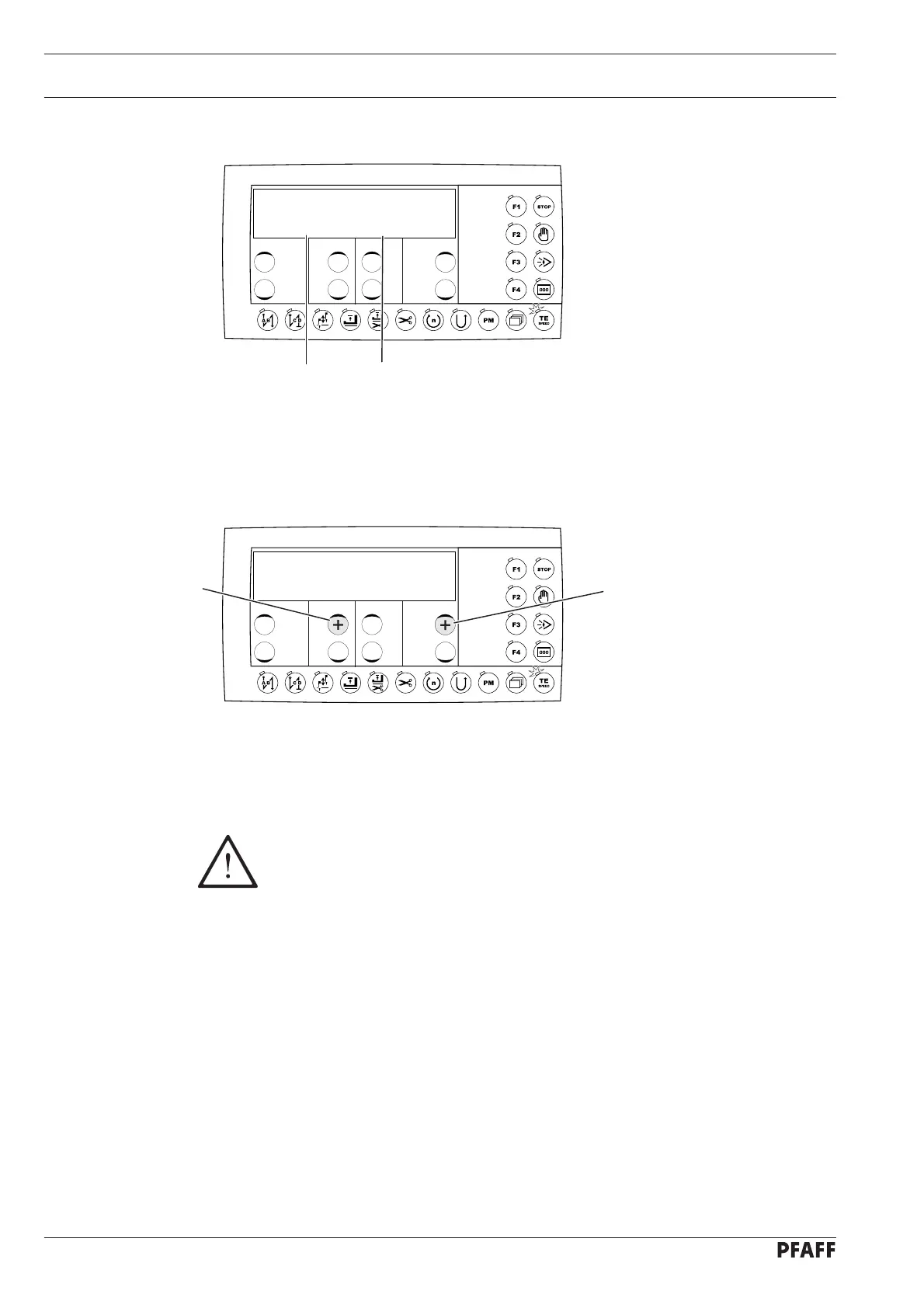

10.02.06 Test block 6 – thread monitor (only on subclass -926/06)
The analogue value of the thread monitor is shown here in %. ●
FW 0%
Thread monitor
Analogue value of thread monitor
If the plus key "B+" is pressed, all data from the control unit is transferred to the program- ●
ming device.
If the plus key "D+" is pressed, all data from the programming device is transferred to the ●
control unit.
Before the data transfer, the Instruction Manual of the programming device
must be observed!
B+
D+
update Data
B+ ->QP D+ QP->
10
.02.07 Test block 7 – data transfer
