3 Product description
3.1 Identifying the product
►
To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
►
Learn about certifications through test seals on the product or at www.certipedia.com with compa-
ny ID no. 000024550.
3.2 Product features
Feature DCU 002 DCU 110 DCU 180 DCU 310 DCU 400
Power supply pack None integrated integrated integrated integrated
Power input 5 VA 130 VA 210 VA 340 VA 450 VA
Suitable for HiPace all 10, 60, 80 300 300, 400, 700, 800 300, 400, 700, 800
Electronic drive unit TC 110
TC 120
TC 400
TM 700
TC 1200
TC 110 TC 110 TC 400 (24 V DC) TC 120 (48 V DC)
TC 400 (48 V DC)
TM 700
Tbl. 4: Product features
3.3 Shipment
●
Display and control unit DCU
●
Interface cable M12 to M12, 3 m in length
●
Fixing materials
●
Operating manual
3.4 Function
The DCU is a display and control unit for Pfeiffer Vacuum vacuum pumps with integrated electronic
drive unit. This device provides an overview of all control parameters for the electronic drive unit. It is
also possible to connect a pressure-measuring tube.
DCU
1
2
3
4

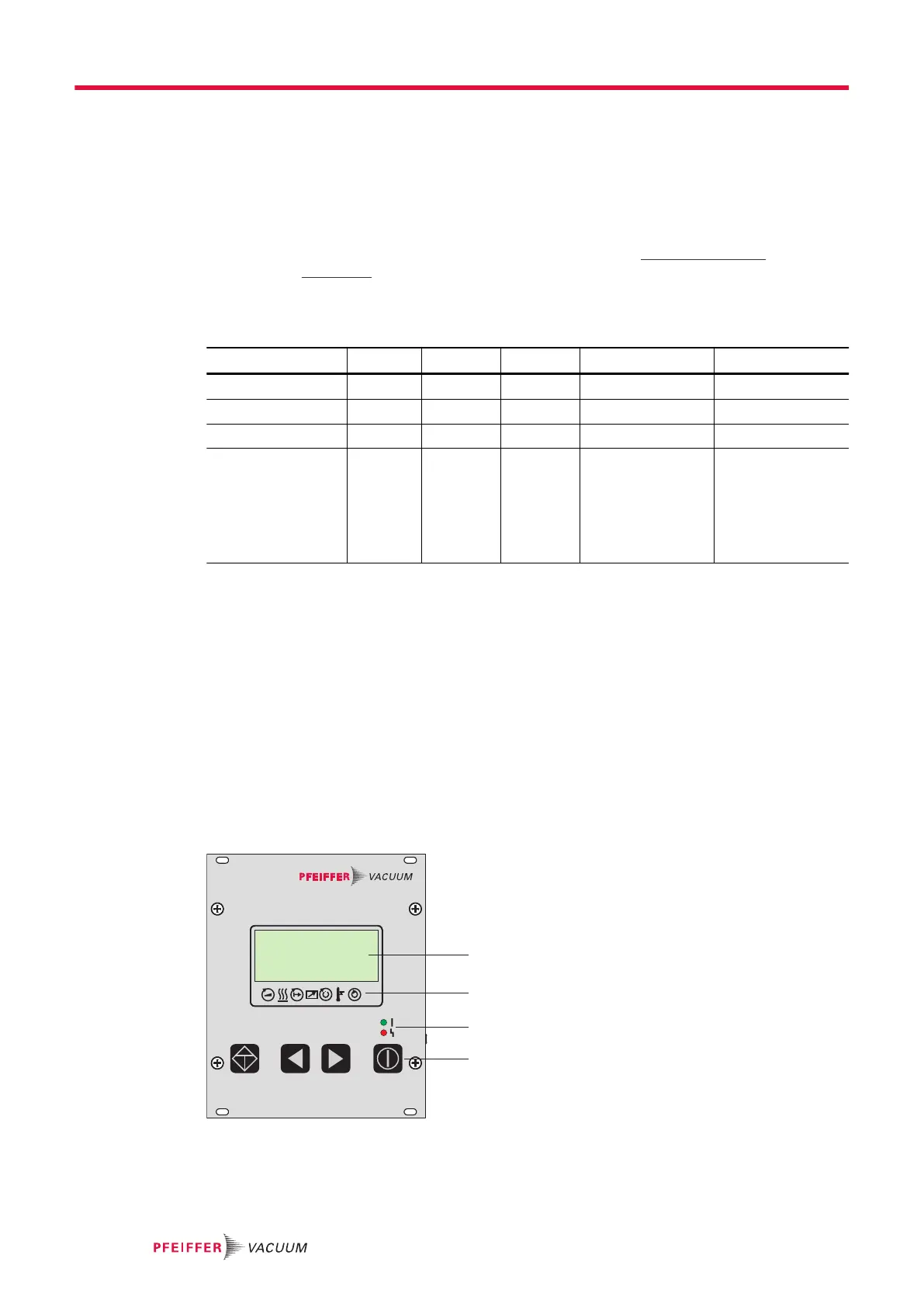

Fig. 2: DCU control panel, front view
1 LC display, illuminated 3 LED operating mode display
2 Status symbols 4 Controls
