PHILIPS 4000 and 3000 07 DISASSEMBLY
1/9

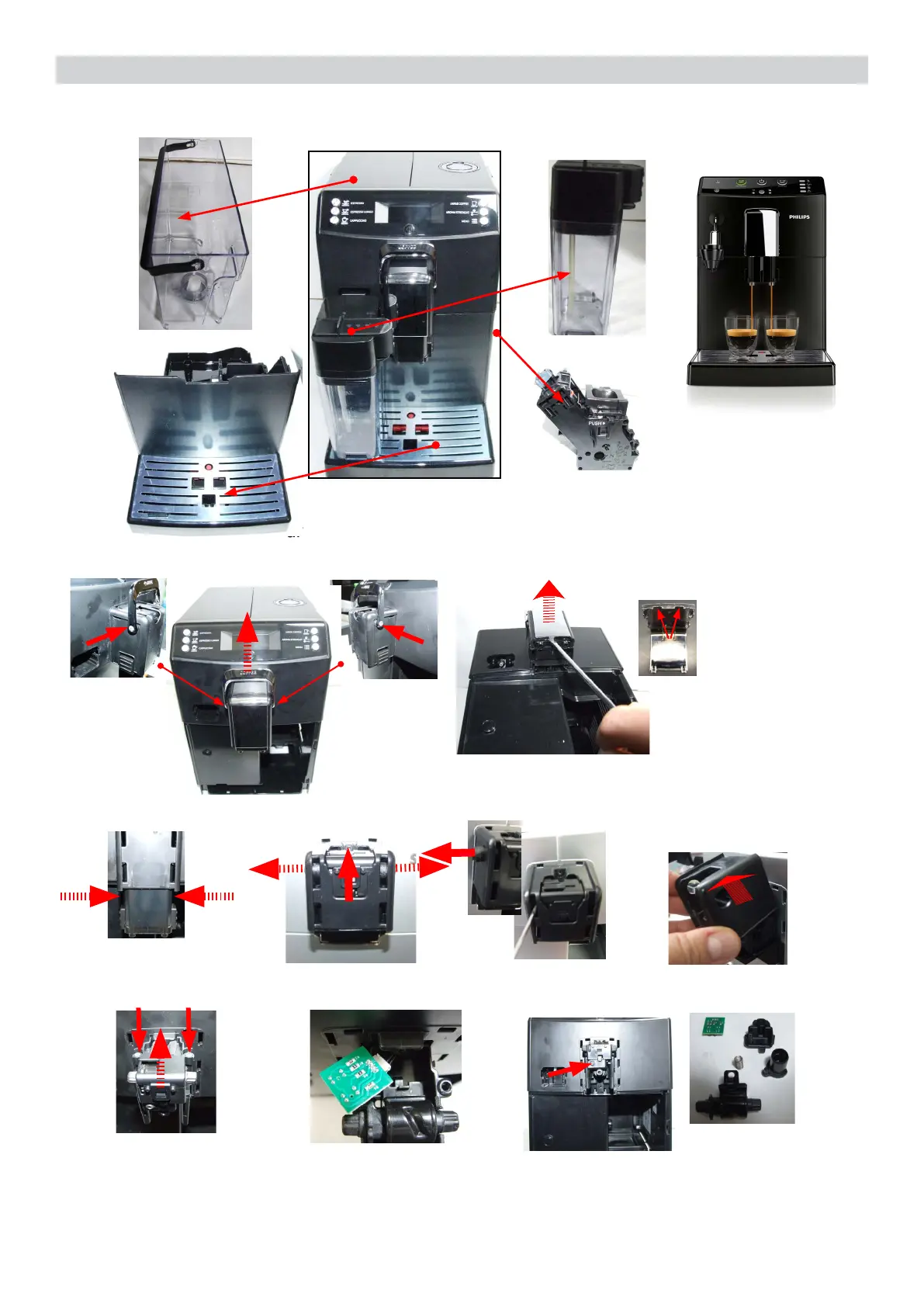

7.1. Outer Shell
Coffee dispenser 4000
Philips 3000
Removethewatertank,coffeecontainercover,
driptray,dregdrawer,brewingunit.
Unscrew the screws shown and remove the lever
Remove the dispenser
cover leveraging the
grooves
Remove the cover
Unscrew the screw shown
and remove the cover
Unscrew the screw shown
and remove the cover
KYB Selection
DRIP ESPRESSO
Remove the dispenser
by pressing sideways
Unscrew the screw shown and remove
the inserts with a screwdriver
