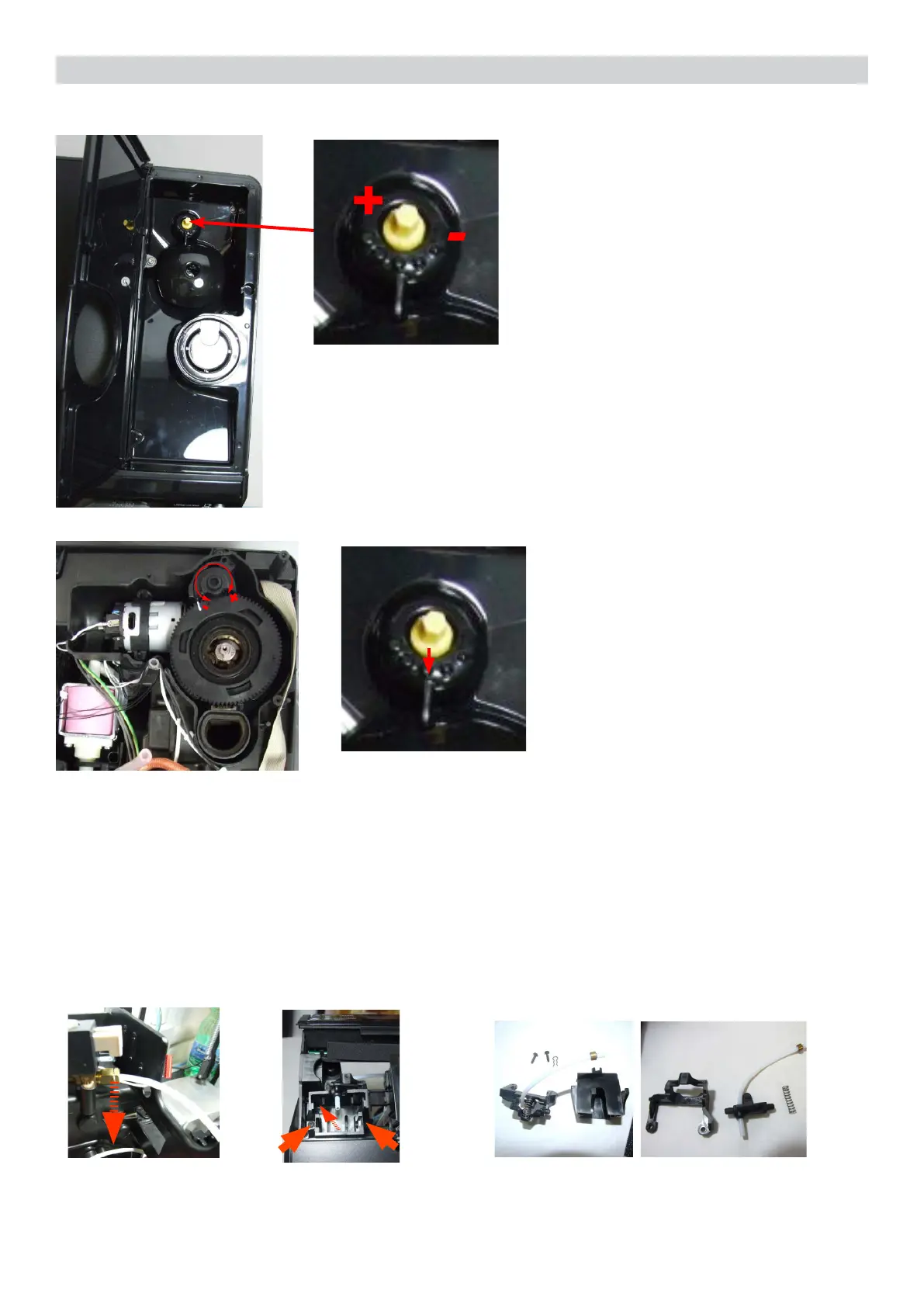

7.4. Coffee grinder adjustment
The grinding adjustment can be set by the user (only with the cof-
fee grinder in operation) by pressing and turning (only by one click at
a time) the insert inside the coffee bean hopper with the aid of the
wrench supplied.
Adjustment by a service center
Toadjustgrindingfurther,theengineercanworkdirectlyonthecoffeegrinderbypressingandturning
the ring nut (C) shown. (clockwise + to increase the particle size of the coffee and anticlockwise - to
decrease it).
If there are any remains of coffee powder between the two grinding blades it is recommended to
tighten by max. two marks at a time.
Lastly,movethearrow(A)ontheadjustmentknobtothecenteroftheadjustmentdotsonthe
cover (B).
+
-
B
A
Loosen the screws holding
the carafe connection
When reassembling the assembly to be
careful to correctly position the spring.
Slide out the fork
as illustrated
7.5.Carafe connection and hot/steam water dispenser
+
-
