12
Connector Connect to
1Yellow wireThe +12V car battery
which is live at all times.
2Blue wireThe electric antenna
control lead or power
supply lead of the
antenna booster
If there is no electric
antenna or antenna
booster, or it is manually
operated telescopic
antenna, it is not
necessary to connect this
lead.
3 Orange wire Illumination switch
4Black wireA metal surface of the
car
First connect the black
ground (earth) lead, then
connect the yellow and
red power supply leads.
5Red wire The +12V power
terminal which is live
in the accessory (ACC)
position of the ignition
switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be
sure to connect the black
ground (earth) lead to a
metal surface of the car
first.
6 Green and
green/black
wires
Left speaker (Rear)
7 White and
white/black
wires
Left speaker (Front)
8 Gray and
gray/black
wires
Right speaker (Front)
9 Purple and
purple/black
wires
Right speaker (Rear)

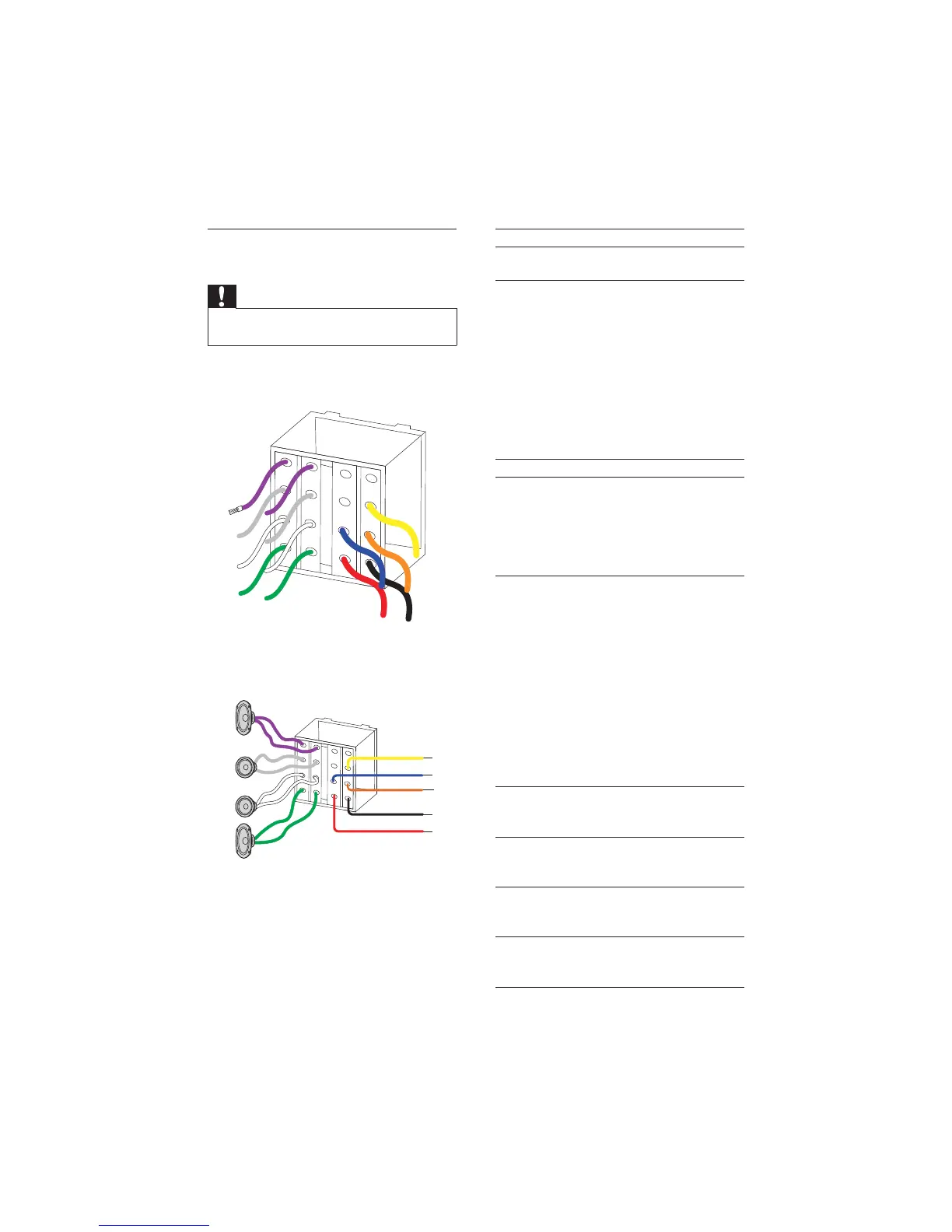

Connect wires: without ISO
connectors
Caution
Ensure that all loose leads are insulated with •
electrical tape.
1 Cut off the bigger end of the supplied
standard connector.
2 Check the car’s wiring carefully, then
connect them to the standard connector.
2
1
3
4
5
6
7
8
9
EN
