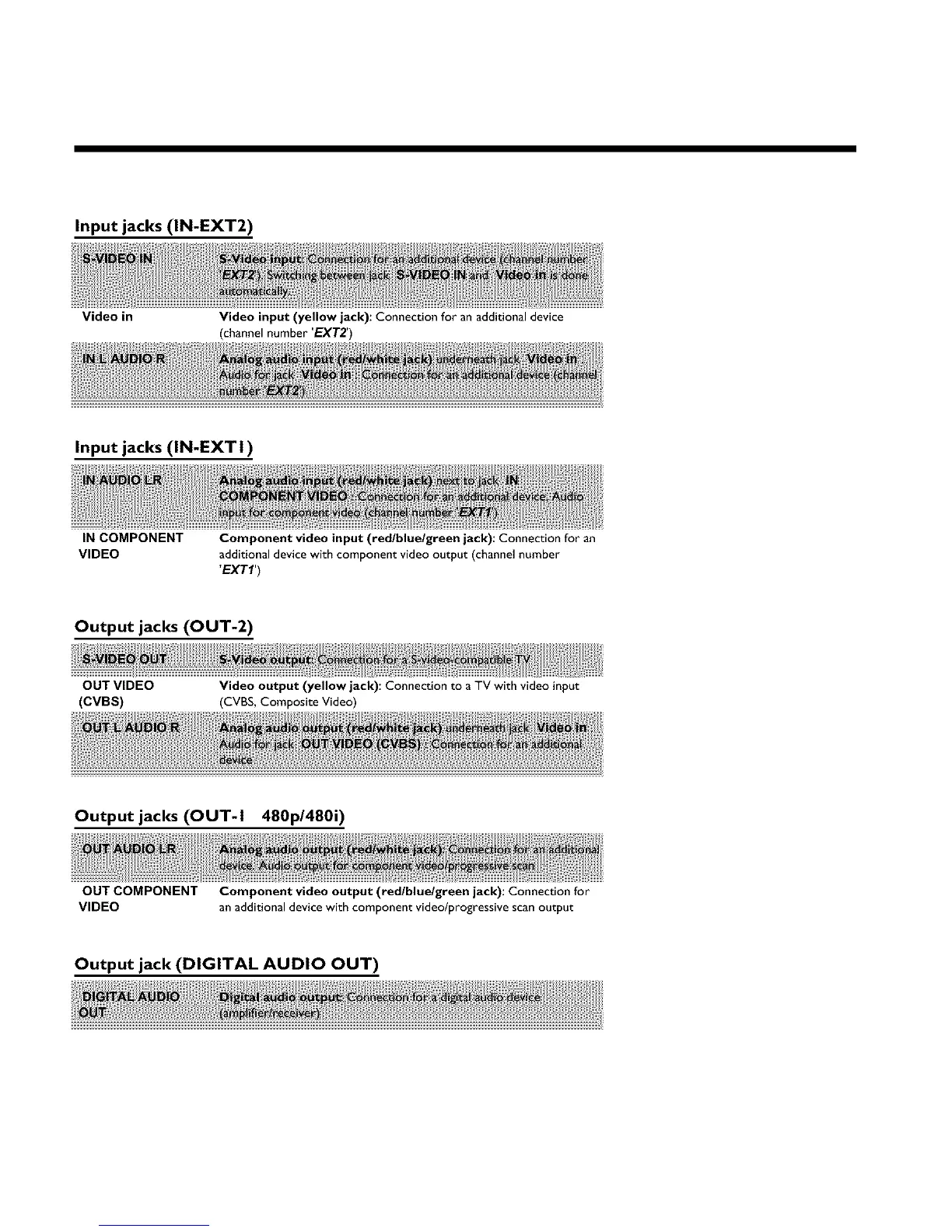

Input jacks (IN-EXT2)
Video in
Video input (yellow jack): Connection for an additional device
(channel number 'EXTZ)
Input jacks (IN-EXT 1)
IN COMPONENT
VIDEO
Component video input (redlbluelgreen jack): Connection for an
additional device with component video output (channel number
'EXTI')
Output jacks (OUT-2)
OUT VIDEO
(CVBS)
Video output (yellow jack): Connection to a TV with video input
(CVBS, Composite Video)
Output jacks (OUT-I 480p/480i)
OUT COMPONENT Component video output (redlbluelgreen jack): Connection for
VIDEO an additionaldevice with component video/progressive scanoutput
Output jack (DIGITAL AUDIO OUT)
