Philips HD 8753 - Intelia Cappuccino Water Circuit Diagram

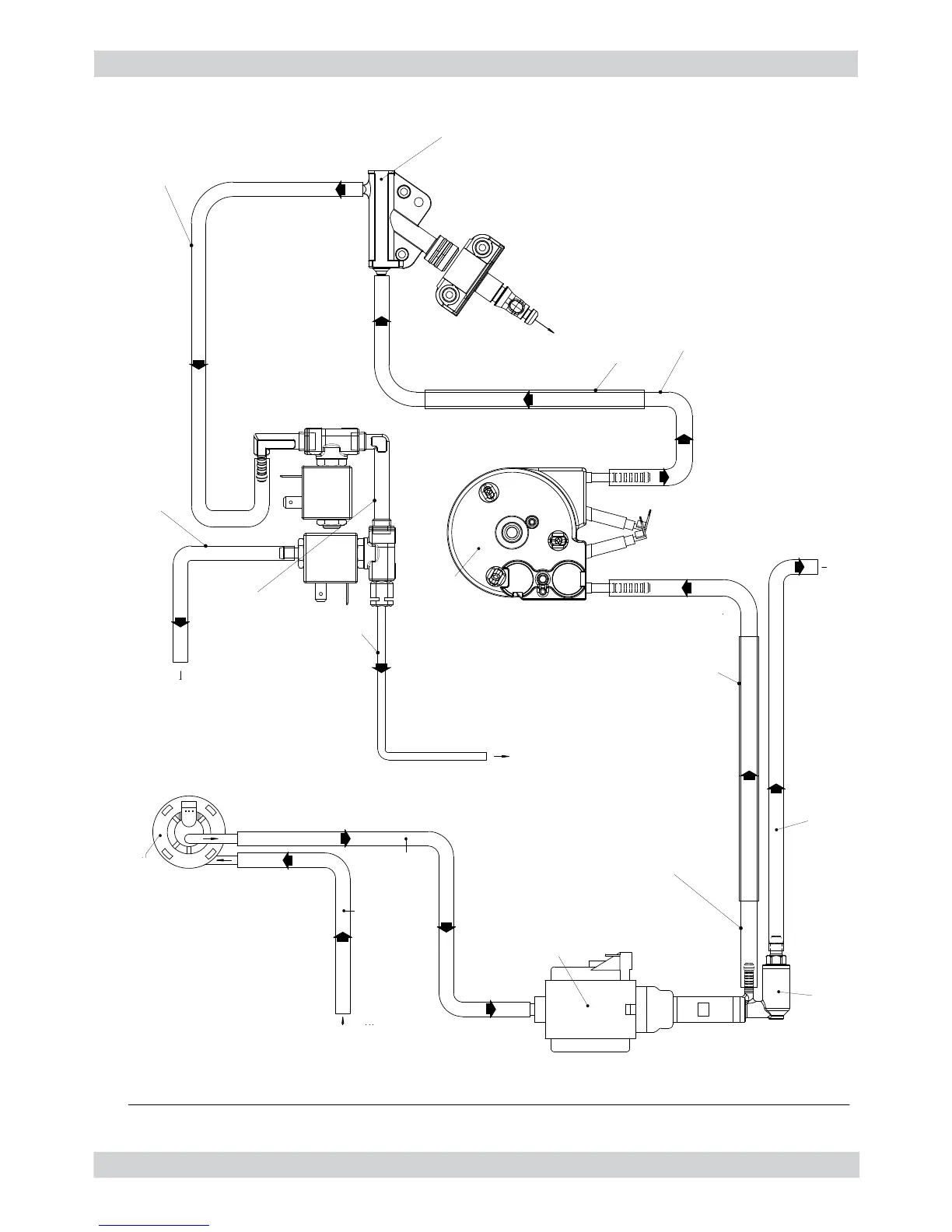

INTELIA 09 WATER CIRCUIT DIAGRAM
Saeco International Group Rev. 01 / September 2011 Page / 01
01
Flow meter
Turbina
Water tank
Serbatoio
acqua
Silicone tube
Tubo silicone
Silicone tube
Tubo silicone
Silicone tube Tubo silicone
Silicone tube
Tubo silicone
Assy Solenoid valve Assieme Elettrovalvole
4 bar Valve
Valvola 4 bar
Water drain Scarico acqua
Water drain Scarico acqua
Pump Pompa
Boiler
Caldaia
Jug
connection
Safety valve Valvola di sicurezza
Intelia Cappuccino
Silicone tube Tubo silicone
Silicone tube Tubo silicone
Tefl on tube
Tubo Tefl on
Silicone tube Tubo silicone
Silicone tube Tubo silicone
Silicone tube Tubo silicone
Brew unit Gruppo caffè
Boiler pin Perno caldaia
