Philips HD 8753 - Intelia Focus and Class Water Circuit Diagram

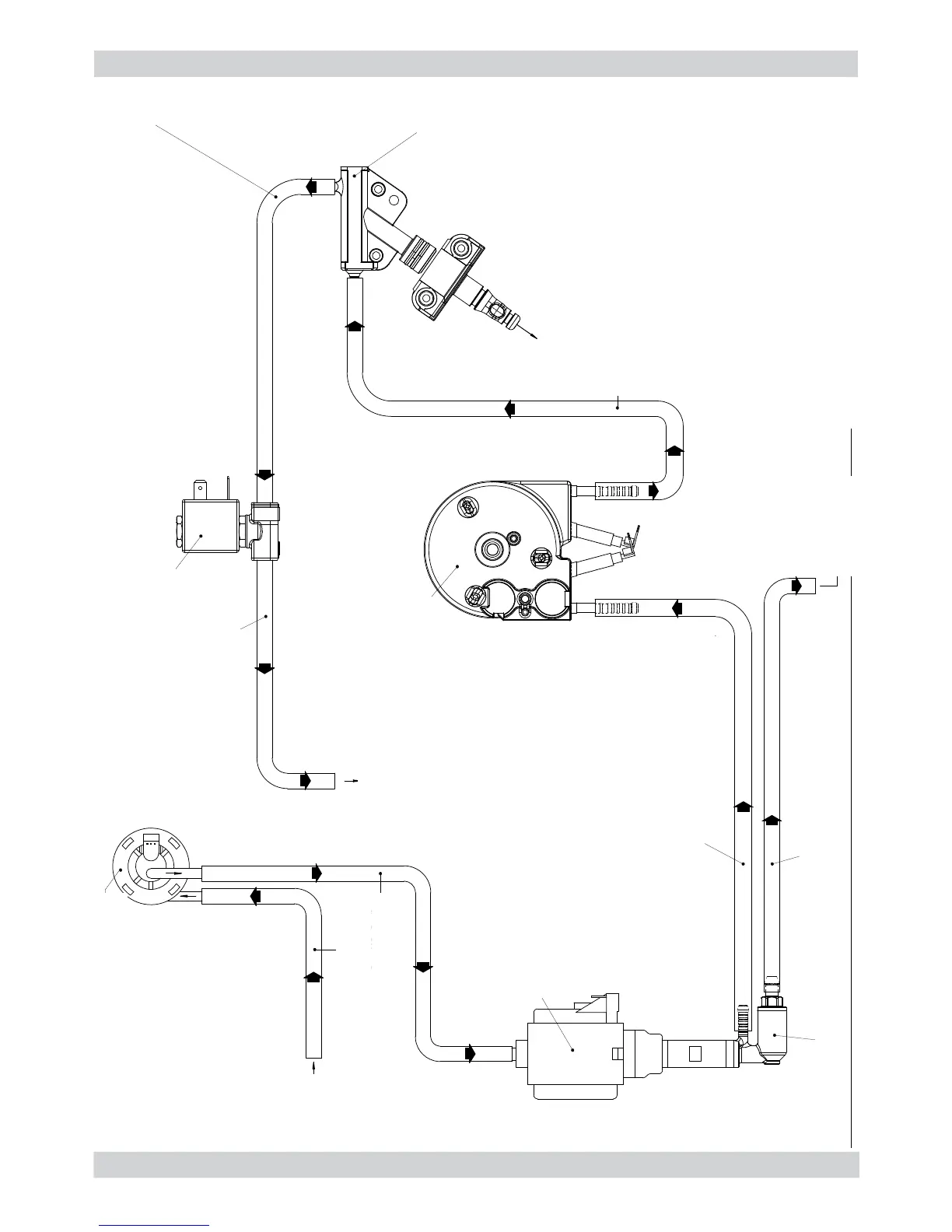

INTELIA 09 WATER CIRCUIT DIAGRAM
Saeco International Group Rev. 01 / September 2011 Page / 01
02
Flow meter
Turbina
Water tank
Serbatoio
acqua
Silicone tube
Tubo silicone
Silicone tube
Tubo silicone
Silicone tube Tubo silicone
Silicone tube Tubo silicone
Silicone tube Tubo silicone
Silicone tube
Tubo silicone
2 way Solenoid valve Elettrovalvola a due vie
Silicone tube
Tubo silicone
4 bar Valve
Valvola 4 bar
Water drain Scarico acqua
Boiler pin Perno caldaia
Brew unit Gruppo caffè
Pump Pompa
Boiler
Caldaia
Steam pipe
Tubo vapore
Safety valve Valvola di sicurezza
Intelia Focus and Class
