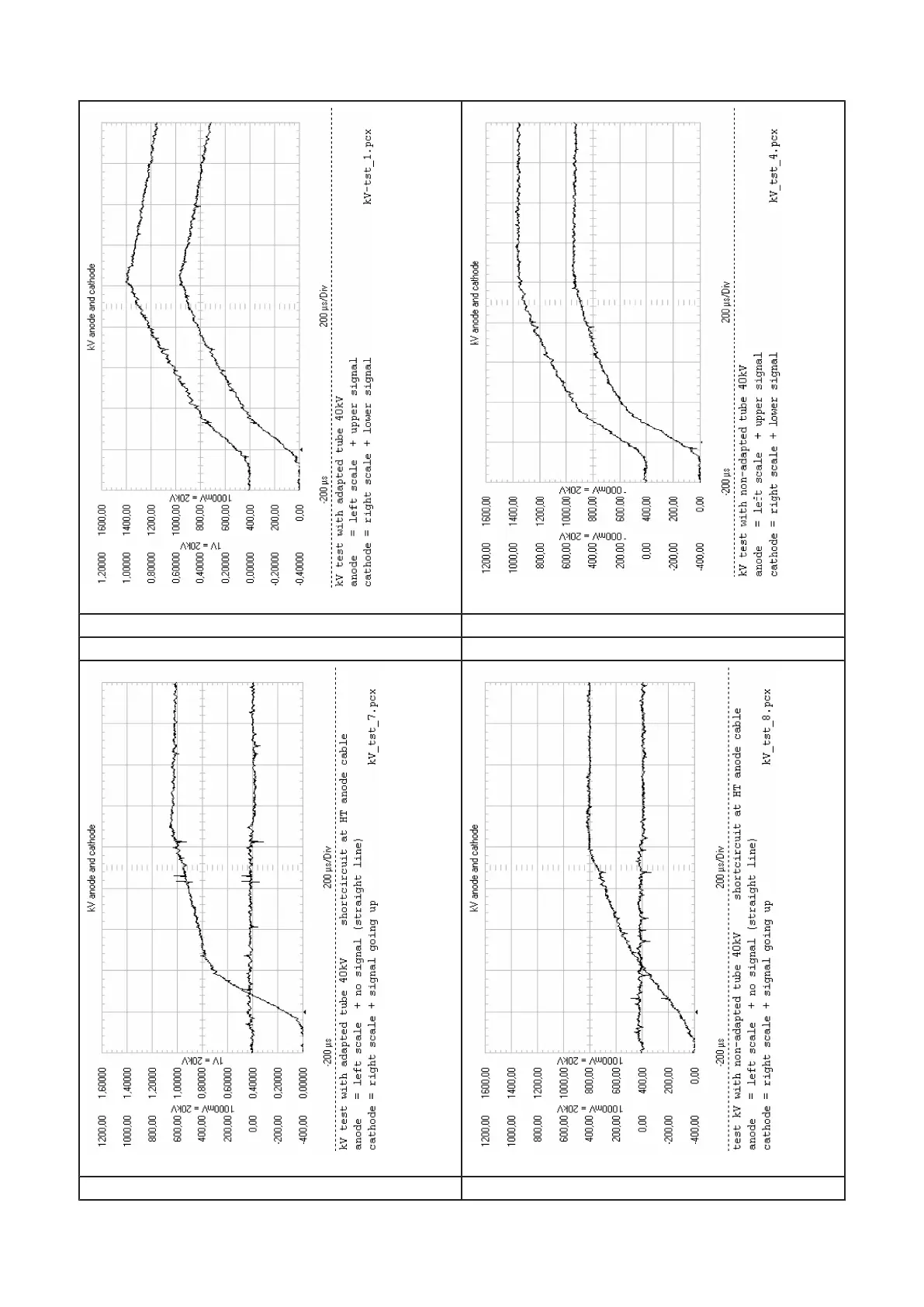

(Fig. 9)
(Fig. 10)
▲adapted tube, tube and cable OK▲ ▲non-adapted tube, tube and cable OK▲
(Fig. 11) (Fig. 12)
▲adapted tube, anode cable short-circuit▲ ▲non-adapted tube, anode cable short-circuit▲
Converter test kit OPTIMUS for OPTIMUS 50/65/80 gen‐
erators release 3.x with converters 4512 104 7231x
28 CSIP Level 1 (08.0)
© 2008 Koninklijke Philips Electronics N.V.
ALL RIGHTS RESERVED
Conv test Optimus
