[2]
[3]
[0]

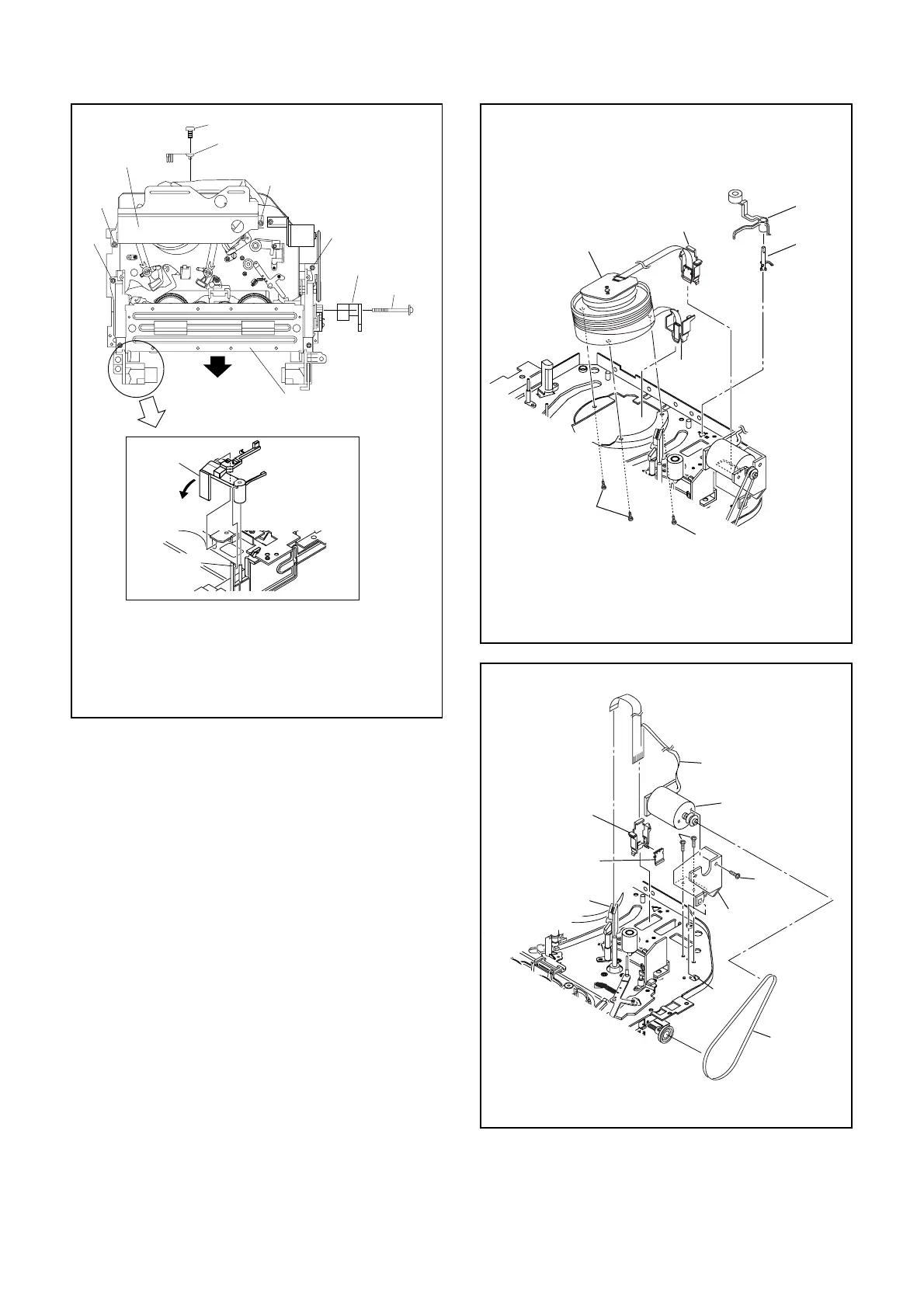

[1] Front Loading Assembly
slide
To remove Front Loading Assembly:
1. Remove Rec Arm while releasing Locking Tab as shown.
2. Remove Screw (S-1) and [0] Joint Holder B.
3. Remove Screw 2(S-2).
4. Lift it up slightly and then, slide Front Loading Assembly.
(S-3)
(S-2)
(S-1)
(S-3)
(S-2)
(S-4)
Bottom View
Locking Tab
Rec Arm
turn
Fig. DM3
CN287
ACH Connector
AN (9P)
ACH Connector
B (9P)
[5]
[6]
(S-6)
(L-1)
(S-7)
LDG
Belt (B)
FFC Cable
Fig. DM5
[4]
(S-5)
(S-5)
[45]
[46]
Connector
Connector
Fig. DM4
2-4-4 H67T0DA
