Philips VR109/55 - Page 61

[12]
(S-10)
(S-10)
Capstan Belt

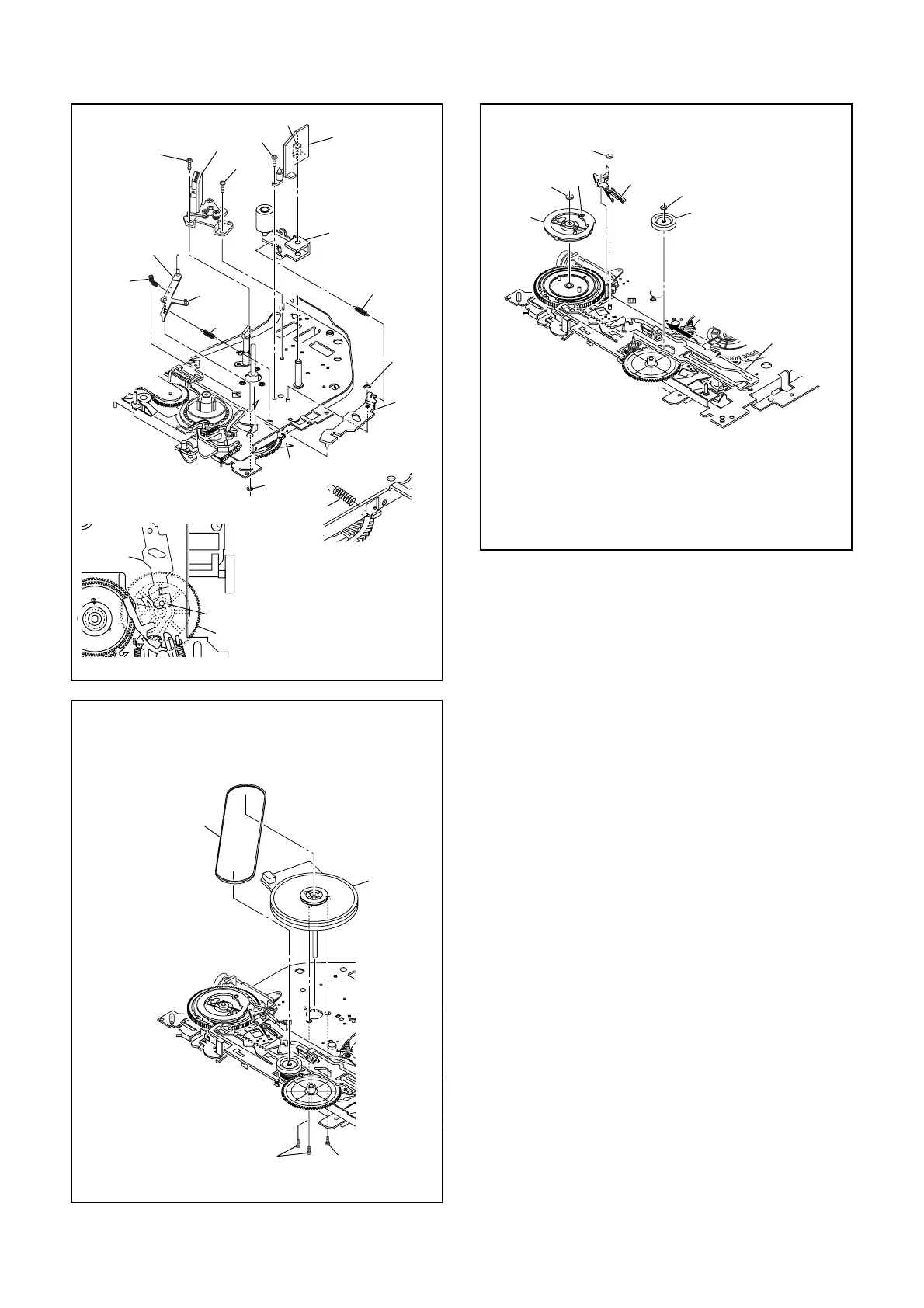

Fig. DM7
[13]
(C-2)
(C-3)
(C-4)
[14]
[15]
[19]
Hole
When reassembling [13], confirm that the hole on [13] is
in the correct position as shown.
After reassembling [13], be sure to slide [19] until the left
edge of [19] touches [13] as shown in Fig. DM7.
Fig. DM8
[11]
E ring
(P-3)
(C-1)
[11]
[21]
Pin of [11]
[7]
[8]
[9]
(L-2)
(P-1)
Adj.
Screw
(S-9)
(S-8)
[10]
(S-8)
B
A
View for A
When reassembling [11],
confirm that pin of [11] is in
the groove of [21] as shown.
(P-2)
View for B
(P-2)
Fig. DM6
2-4-5 H67T0DA
