UM EN ILC 1XX
2-2
PHOENIX CONTACT 7805_en_02
V.24 (RS-232) interface This interface can be used to either assign the IP address of the Inline Controller and
access the controller using the Diag+ diagnostic tool or communicate with serial I/O devices
via function blocks.
ILC 170 ETH 2TX:
Parameterization memory
(SD card)
The ILC 170 ETH 2TX has a plug-in parameterization memory in the form of an SD card.
This memory can be used to save programs and configurations, which belong to your
project, e.g., the visualization project.
2.2 Possible fields of application of the Inline
Controller
2.2.1 ILC 130 ETH
The ILC 130 ETH Inline Controller can be used as a distributed control system of an Inline
station, which is connected to an Ethernet system.
A single Inline local bus (Figure 2-2) can be connected to the Inline Controller.

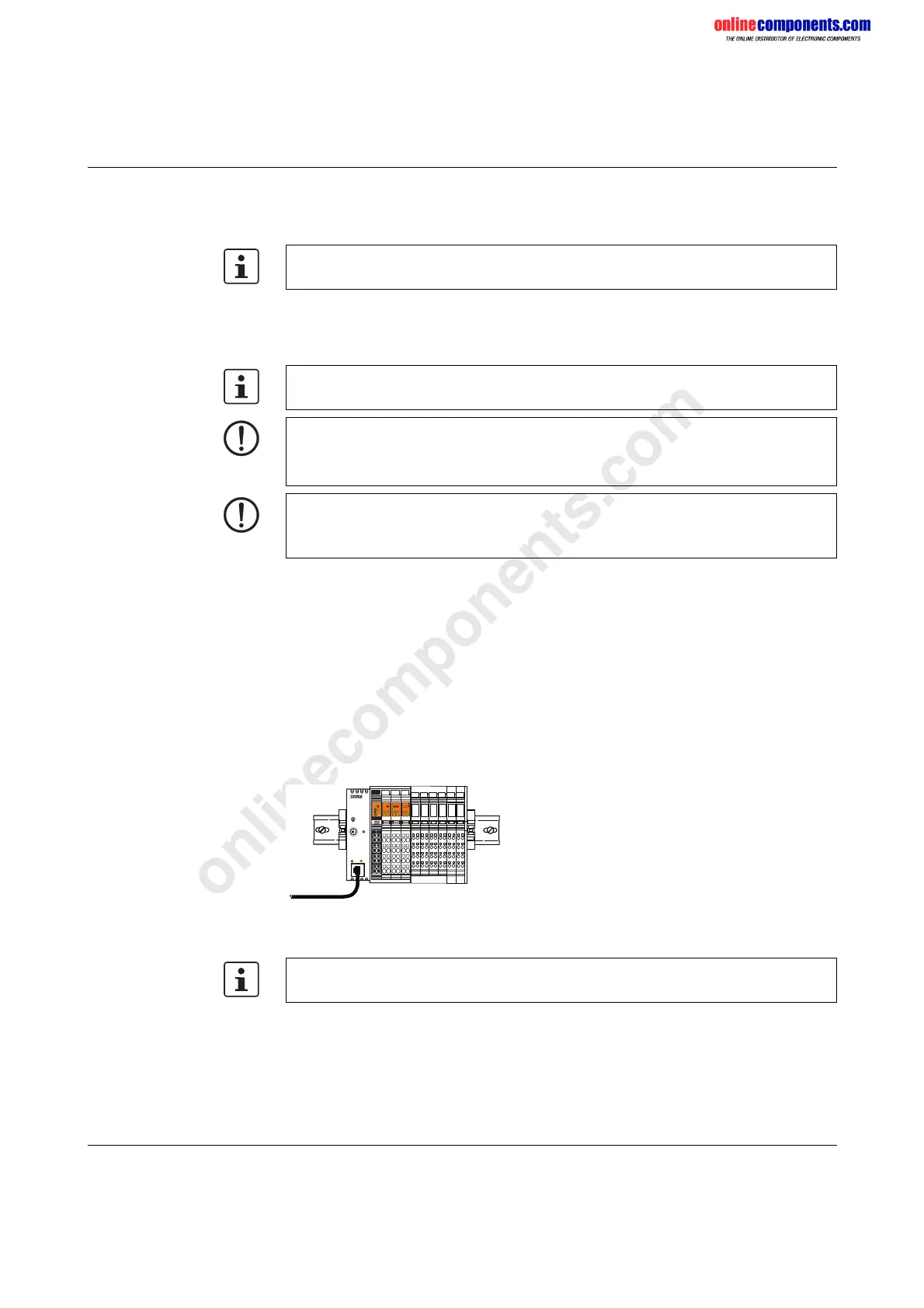

Figure 2-1 Connected Inline local bus
The Inline Controller cannot be programmed via the V.24 (RS-232) interface.
The parameterization memory is not supplied as standard with the ILC 170 ETH 2TX. For
the ordering data, please refer to "Accessories" on page 5-8.
NOTE: Use only a parameterization memory provided by Phoenix Contact:
256 MB parameterization memory:
SD FLASH 256MB Order No. 2988120
NOTE: Parameterization memory (SD card) – formatting note
The SD card is preformatted and designed for use with Phoenix Contact devices. Ensure
that the SD card is not reformatted.
Please note that the ILC 130 ETH does not support connection of the INTERBUS remote
bus.
Ethernet
7805A020
AUTOMATIONWORX
UL
US
UM
FF
I1
I3
I2
I4
ILC 130 ETH
Order-No.: 2988803
HW/FW: 01/301
MAC Addr.:xx.xx.xx.xx
RESET
Q4
E
I5
I7
I6
I8
PRG
LNK
ACT
Q3
Q2Q1
RDY FAIL BSA PFFR
RUN / PROG
MRESET
STP
X2
X1
