UM EN ILC 1XX
A-2
PHOENIX CONTACT 7805_en_02
A 3 Connecting unshielded cables
Unshielded cables are used to connect the I/O devices and the supply voltage to the Inline
Controller.
Connect these cables to the relevant Inline connectors using the spring-cage connection
method. You may connect cables with diameters of 0.2 mm
2
to 1.5 mm
2
(24 - 16 AWG).

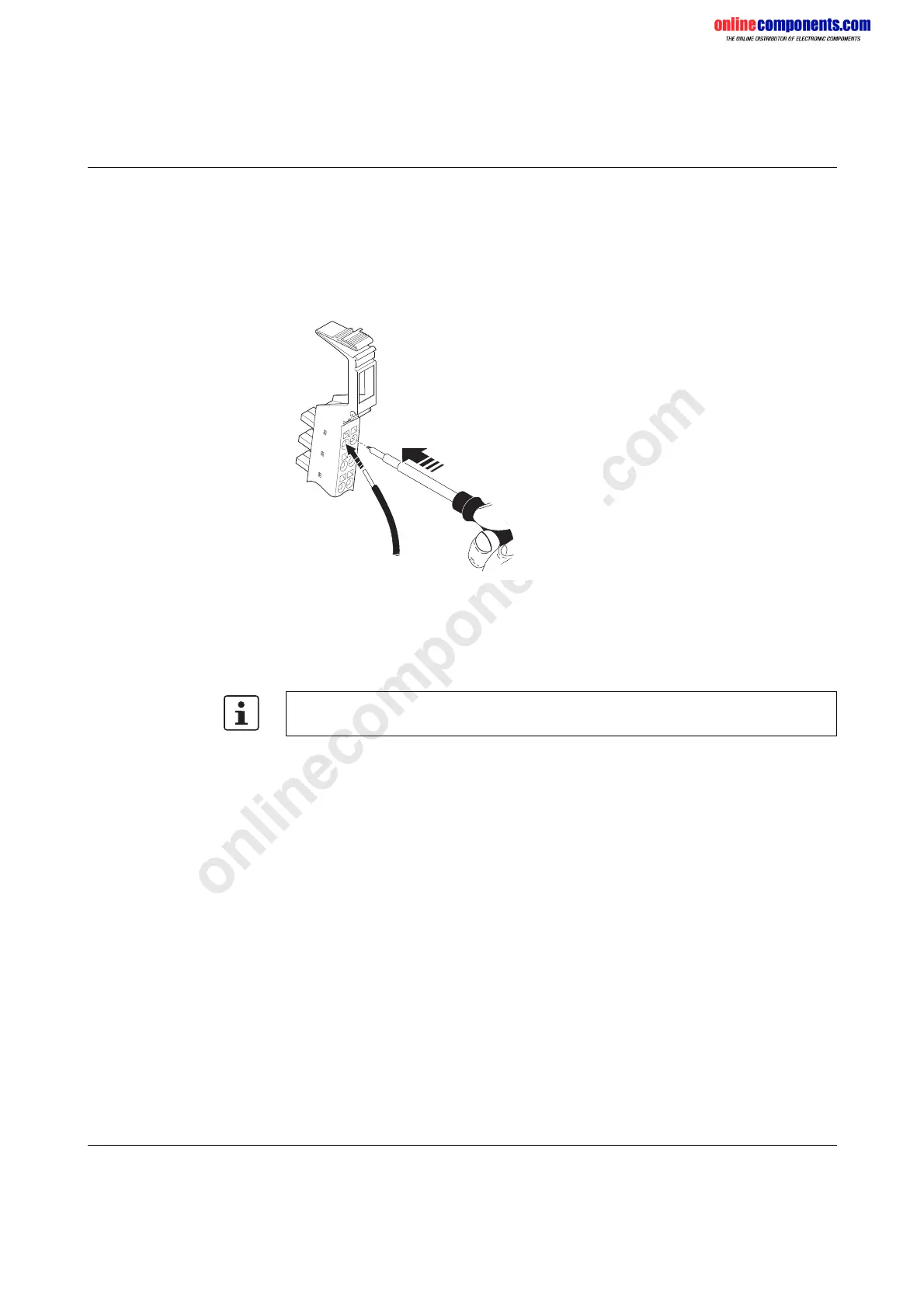

Figure A-1 Connecting unshielded cables
Wire the connectors according to your application.
When wiring, proceed as follows:
• Strip 8 mm off the cable.
• Push a screwdriver into the slot of the appropriate terminal point (Figure A-1, detail 1),
so that you can insert the wire into the spring opening.
Phoenix Contact recommends using an SFZ 1-0,6x3,5 screwdriver
(Order No. 1204517).
• Insert the wire (Figure A-1, detail 2). Remove the screwdriver from the opening.
This clamps the wire.
After installation, the wires and the terminal points should be labeled.
Inline wiring is normally done without ferrules. However, it is possible to use ferrules.
If using ferrules, make sure they are properly crimped.
