2.6 Diagnostic and status indicators
The diagnostic and status indicators are used for quick local error diagnostics.

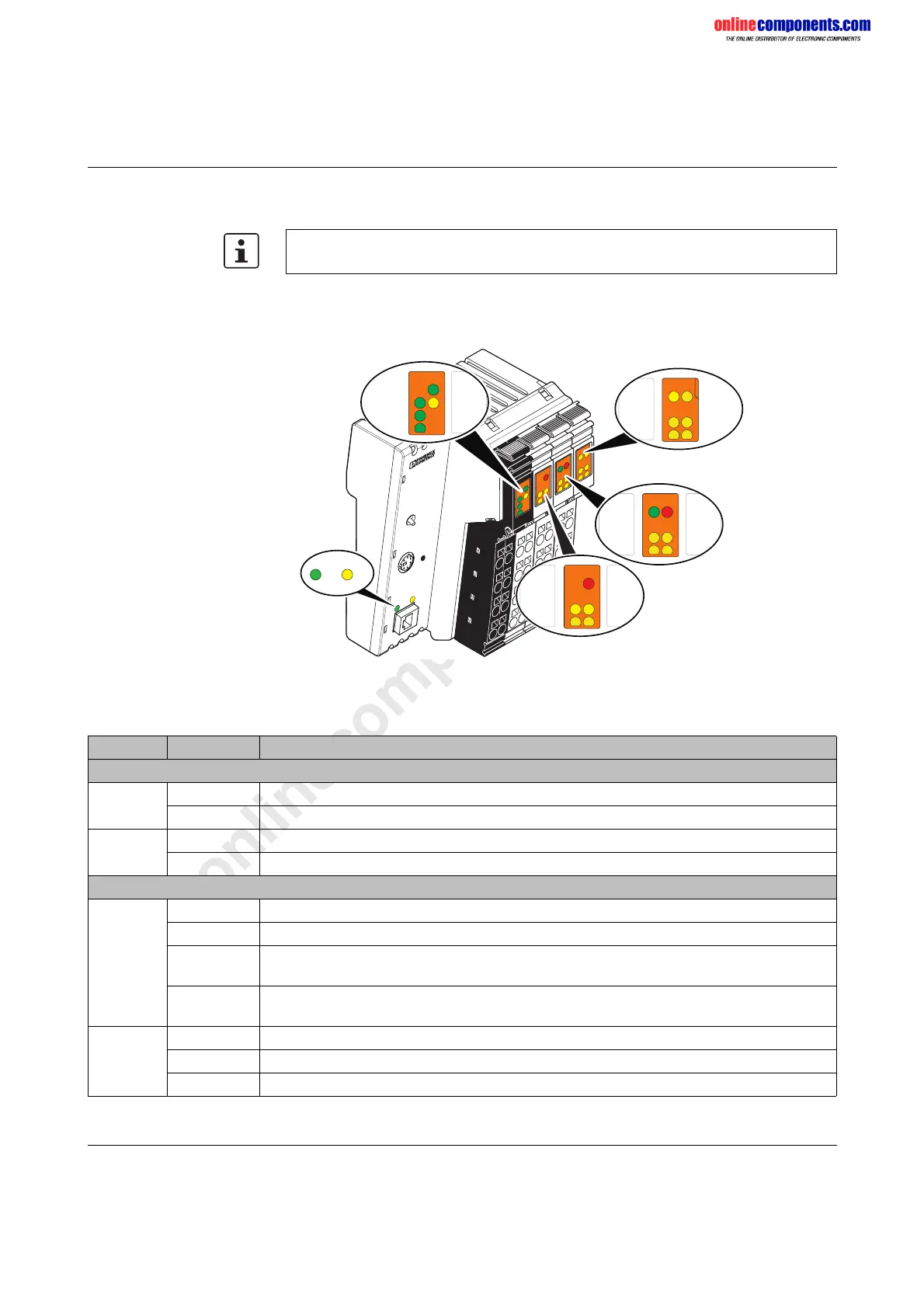

Figure 2-7 Diagnostic and status indicators
Local diagnostic and status indicators
The descriptions for diagnostic and status indicators apply to all the Inline Controllers
listed on the inner cover page of this manual.
A
U
T
O
M
A
T
IO
N
W
O
R
X
ILC 150 ETH
Order-No.: 2985330
HW/FW: 00/100
MAC Addr.: xx.xx.xx.xx
UL
US
UM
I1
I3
I2
I4
I6I5
I8I7
R
E
S
E
T
E
Q
2
Q
1
Q
3
Q
4
1
PR
G
FF
L
N
K
A
C
T
M
R
ES
E
T
RU
N
/PR
O
G
S
T
O
P
FR
PFRDY
FAIL
BF
DIA
UL
US
UM
6
O1
I1
I2
Q4
E
I1
I3
I2
I4
I5
I7
I6
I8
PLC/PWR
BSA
PF
FAILRDY
Q3
Q2Q1
FR
FF
ETH
LNK
ACT
7805A007
BSA
Des. Color Meaning
ETH: State of the Ethernet interface (for ILC 170 ETH 2TX, applies to both interfaces (X2.1, X2.2))
LNK Green Connection established successfully (link)
ON: The Inline Controller is able to contact another network device
ACT Yellow Data transmission (activity)
ON: Ethernet interface transmitting or receiving data
PLC: Diagnostics of the Inline Controller
FR Green Inline Controller running
OFF: IEC 61131 runtime system not ready to operate
Flashing: IEC 61131 runtime system successfully initialized.
Control function in READY/STOP state, program not processed.
ON: IEC 61131 runtime system successfully initialized and program running.
Control function in RUN state.
FF Yellow Failure
ON: A runtime error has occurred in the IEC 61131 runtime system program
OFF: No runtime error has occurred in the IEC 61131 runtime system program
