Description of the Inline Controller
7805_en_02 PHOENIX CONTACT 2-35

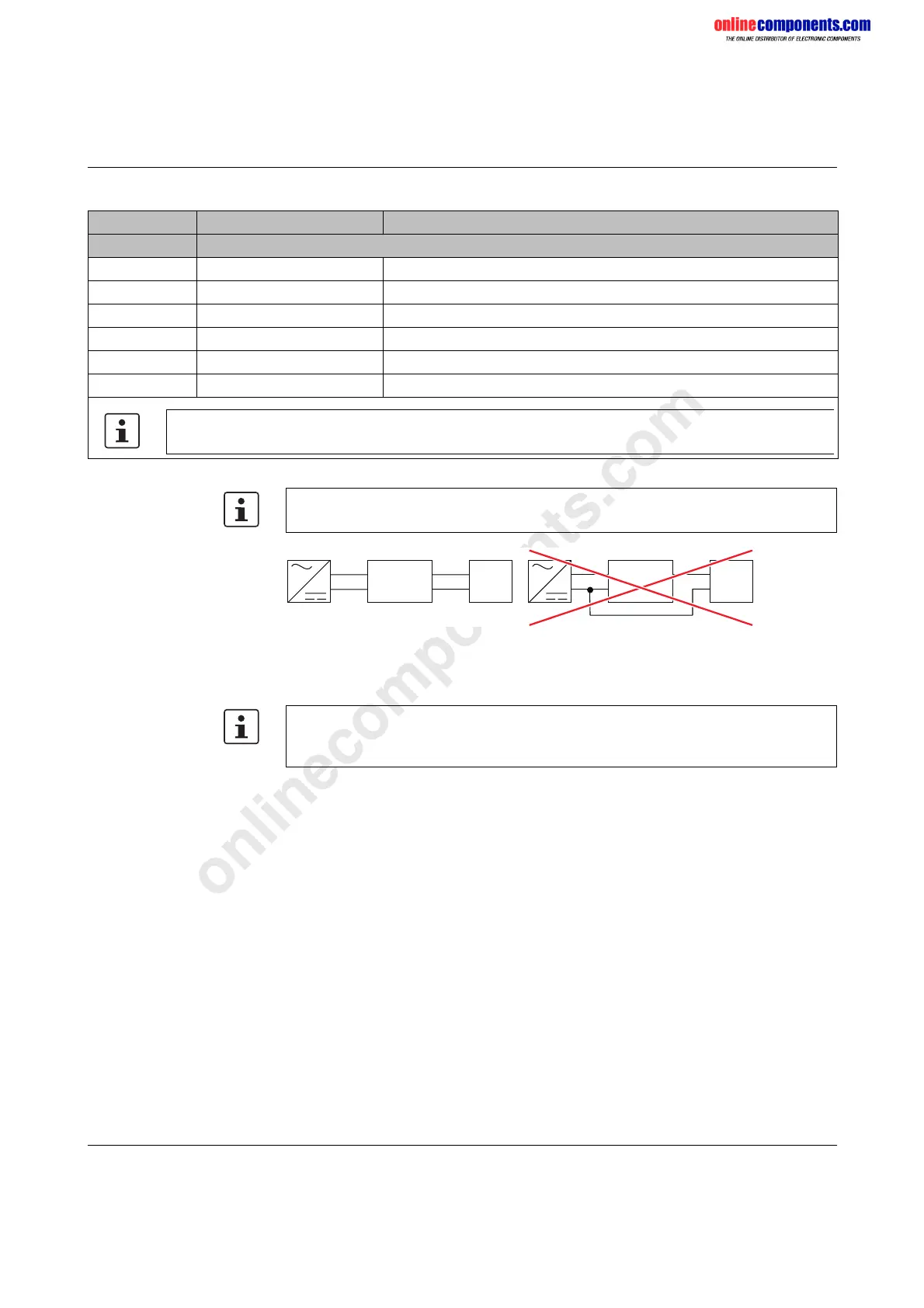

Figure 2-25 Basic wiring of an output with a load (L)
(shown using the ILC 150 ETH as an example)
Connector 4 Input terminal points
3.1 I5 Input 5
4.1 I6 Input 6
3.2, 4.2 24 V Supply voltage U
M
for 2 and 3-wire termination
3.3, 4.3 GND Ground contact for 3-wire termination
3.4 I7 Input 7
4.4 I8 Input 8
Table 2-7 Terminal point assignment (continued)
Terminal point Assignment Remark
The inputs are supplied with 24 V DC from the main supply (U
M
).
The outputs have protection when the ground connection is interrupted and must be wired
accordingly.
For the connection of sensors or actuators in 3-wire technology, Phoenix Contact
recommends using connectors for digital 4-channel or 16-channel Inline terminals
(not supplied as standard, see "Accessories" on page 5-8).
ILC 150 ETH
L
ILC 150 ETH
L
74060016
