Optical Fiber Connector for
a) Glass fiber (OPTOSUB-PLUS-G/OUT)
b) Polymer fiber (OPTOSUB-PLUS-K/OUT)

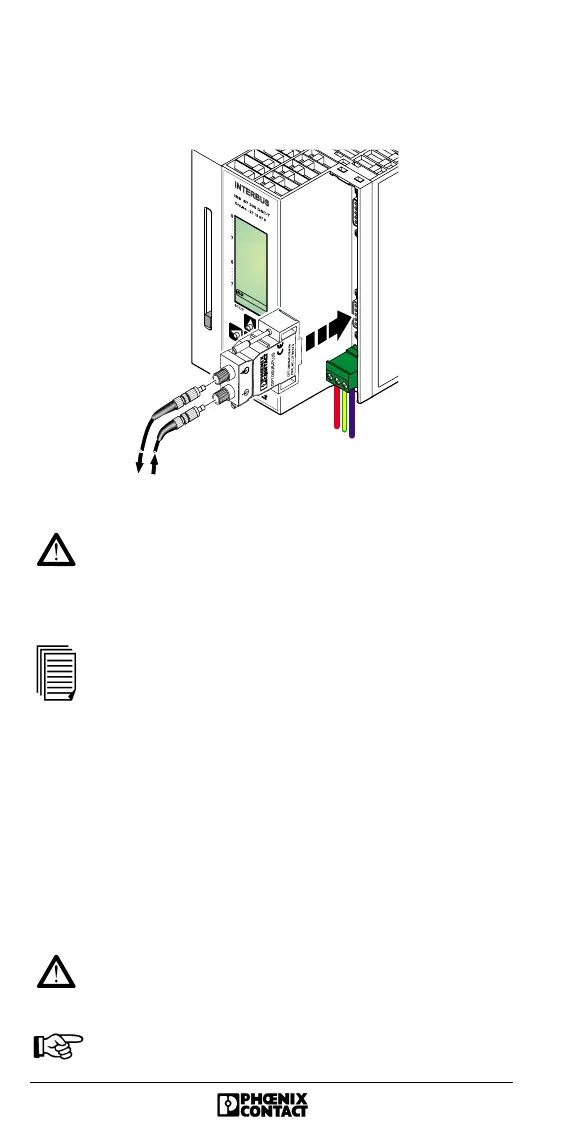

Figure 47 OPTOSUB PLUS cabling
In the case of glass fiber cables, only pre-assembled
cables from Phoenix Contact should be used.
Ordering data:
OPTOSUB-PLUS-G/OUT Order No. 27 99 63 6
Refer to the package slips of the following items and
the Optical Fiber Installation Guidelines when
assembling your own polymer fiber cables, or order
pre-assembled cables from Phoenix Contact.
Ordering data:
OPTOSUB-PLUS-K/OUT Order No. 27 99 61 0
F-SMA connector set with bending protection
(4 connectors)
PSM-SET-FSMA/4-KT Order No. 27 99 72 0
F-SMA polishing set
PSM-SET-FSMA-POLISH Order No. 27 99 34 8
Optical Fiber Installation Guidelines
IBS SYS FOC ASSEMBLY Part No. 94 23 43 9
Make sure that the power supply of the PLC is
switched off when plugging the OPTOSUB connector
in the controller board.
The OPTOSUB connector does not require an
additional power supply.
