RAD-...-IFS
170 / 198
PHOENIX CONTACT
105542_en_05

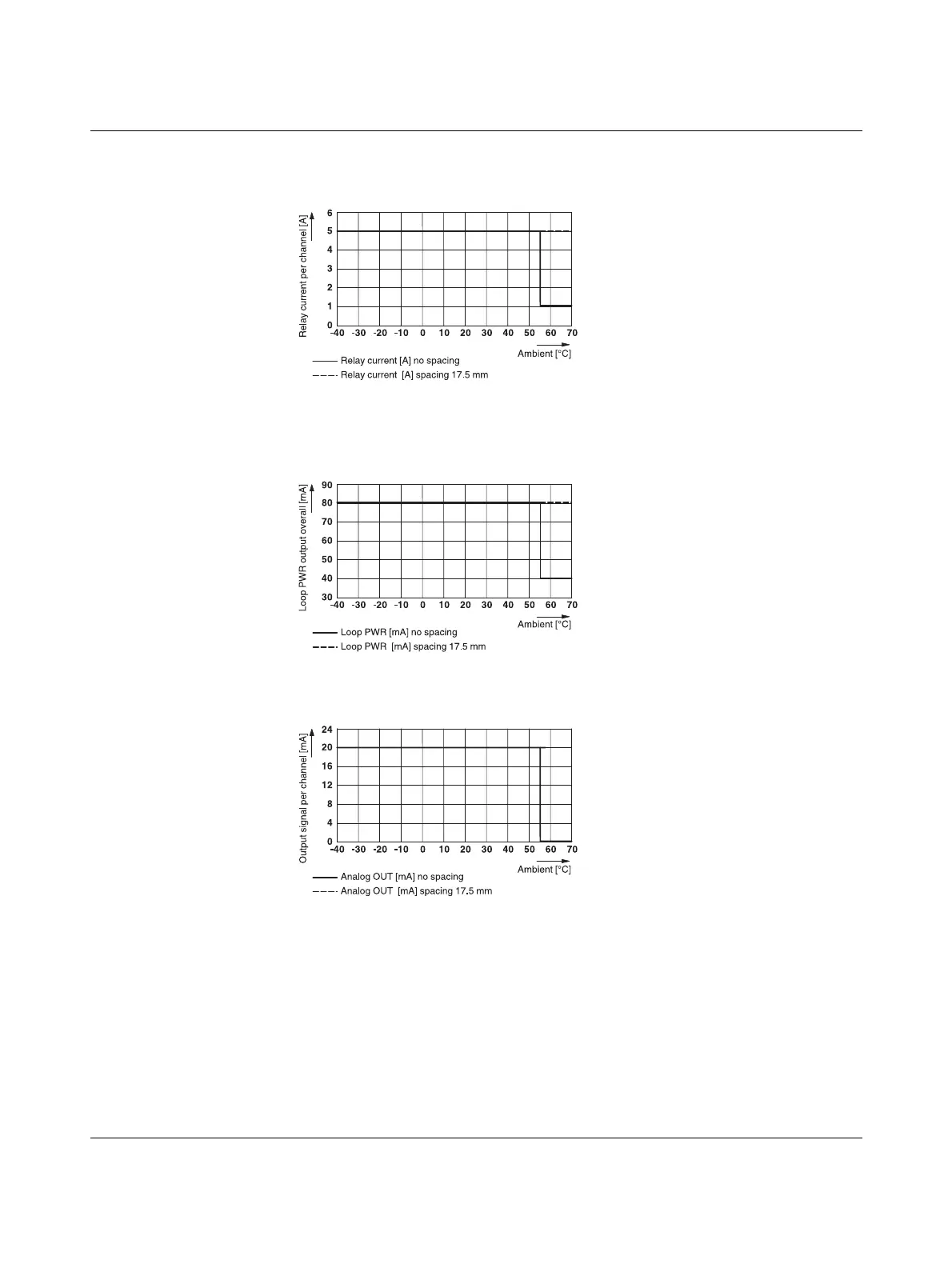

RAD-DOR4-IFS (2901536):
Maximum switching current: 1
A
per channel
RAD-AI4-IFS (2901537):
Make sure that n
o more than 4
0
mA in total
is drawn from loop
power output
s
PWR
1
...
PWR
4
.
RAD-AO4-IFS (2901538):
Only use the analog voltage output (0
V
...
10
V
).
169
171
