4 DEVICE INSTALLATION
To install the device properly, it is necessary to follow the proper sequence of the assembly instructions. Instructions for
assembly of standard PBR FMT150 (400, 1000 and 3000 ml) are described below.
4.1 POWER SUPPLY
• Make sure that both the Photobioreactor and the power supply are switched OFF.
• Connect the thick power cord of the power supply to the round Power connector at the rear panel of the
Photobioreactor (Fig. 11).

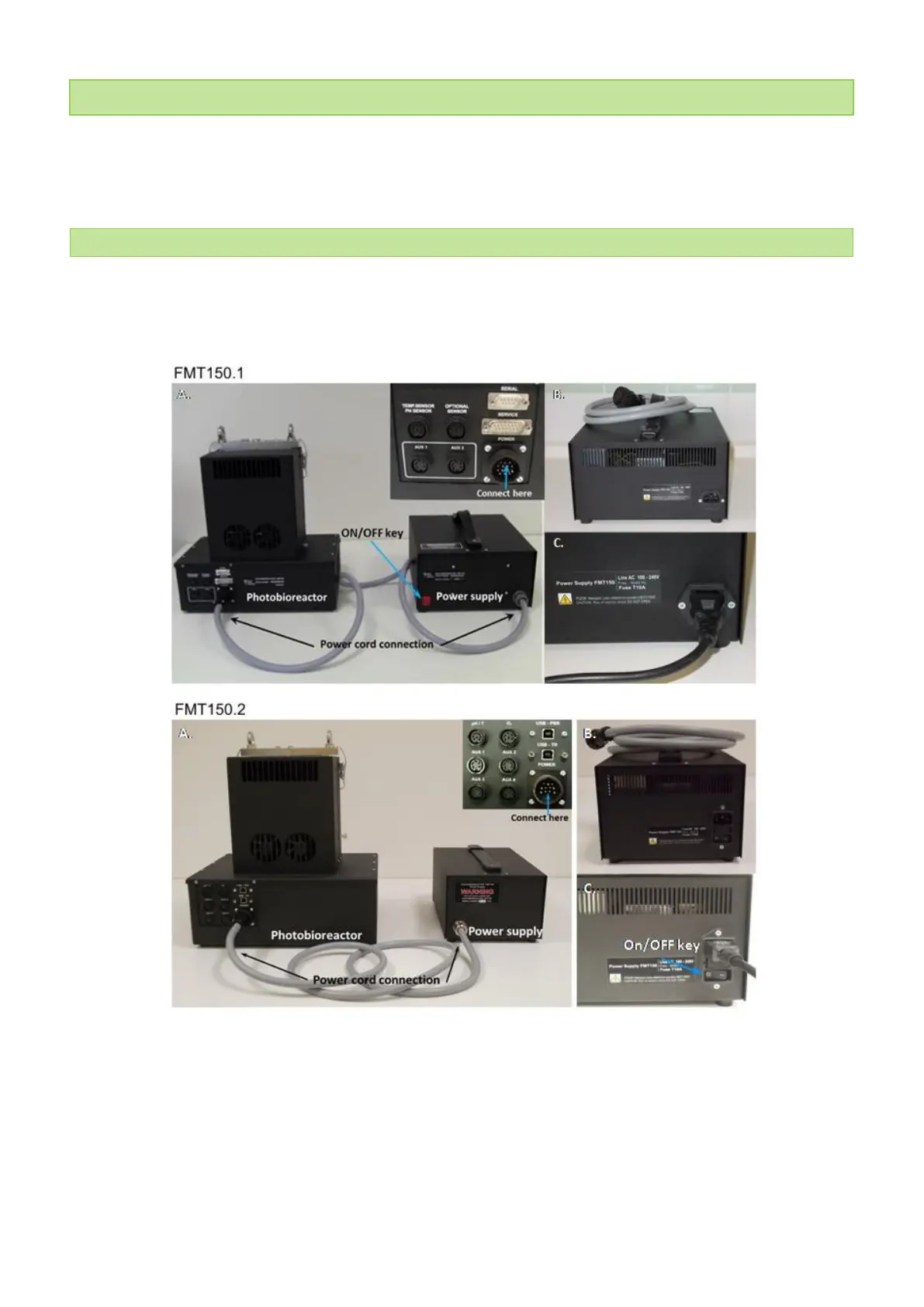

Fig. 11 Connection of the Photobioreactor and the power supply. A) Top right panel shows detail view of the back panel of the
Photobioreactor. B) C) AC power cord connection to the electrical outlet.
• Plug the AC power cord into an electrical outlet (Fig. 11B,C).
• Switch on the power supply.
