3.4 REAR PANEL FOR VERSION FMT150.1
The rear panel houses connectors for all connecting cables (Fig. 8).

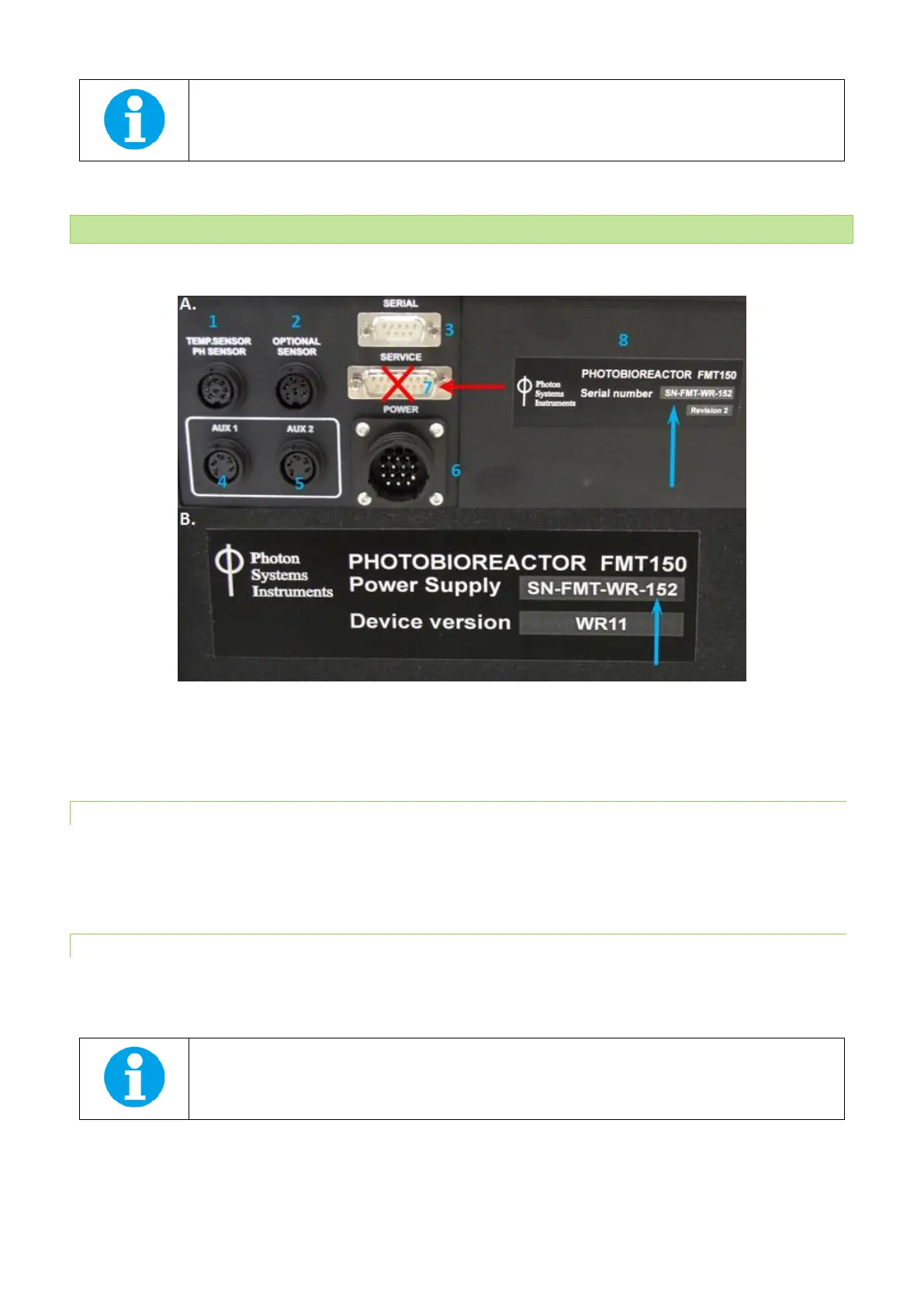

Fig. 8 Photobioreactor control unit and its power supply rear panels. A) Back panel of the Photobioreactor control unit with the serial
number (blue arrow). Numbers correspond to the description on below. B) Rear panel of the power supply with the serial number (blue
arrow). Note the same serial number. Each Photobioreactor has its own power supply and it cannot be interchanged with another
power supply.
3.4.1 CONNECTOR FOR PH/TEMPERATURE SENSOR
pH/temperature sensor should be plugged to this connector when in use. PBR FMT150 control unit recognizes when the
sensor is connected and will automatically control the operation of the sensor.
3.4.2 CONNECTOR FOR OPTIONAL SENSOR
O
2
sensor should be plugged to this connector when in use. PBR FMT150 control unit recognizes when the sensor is
connected and will automatically control the operation of the sensor.
Only O
2
sensor can be plugged to this connector.
