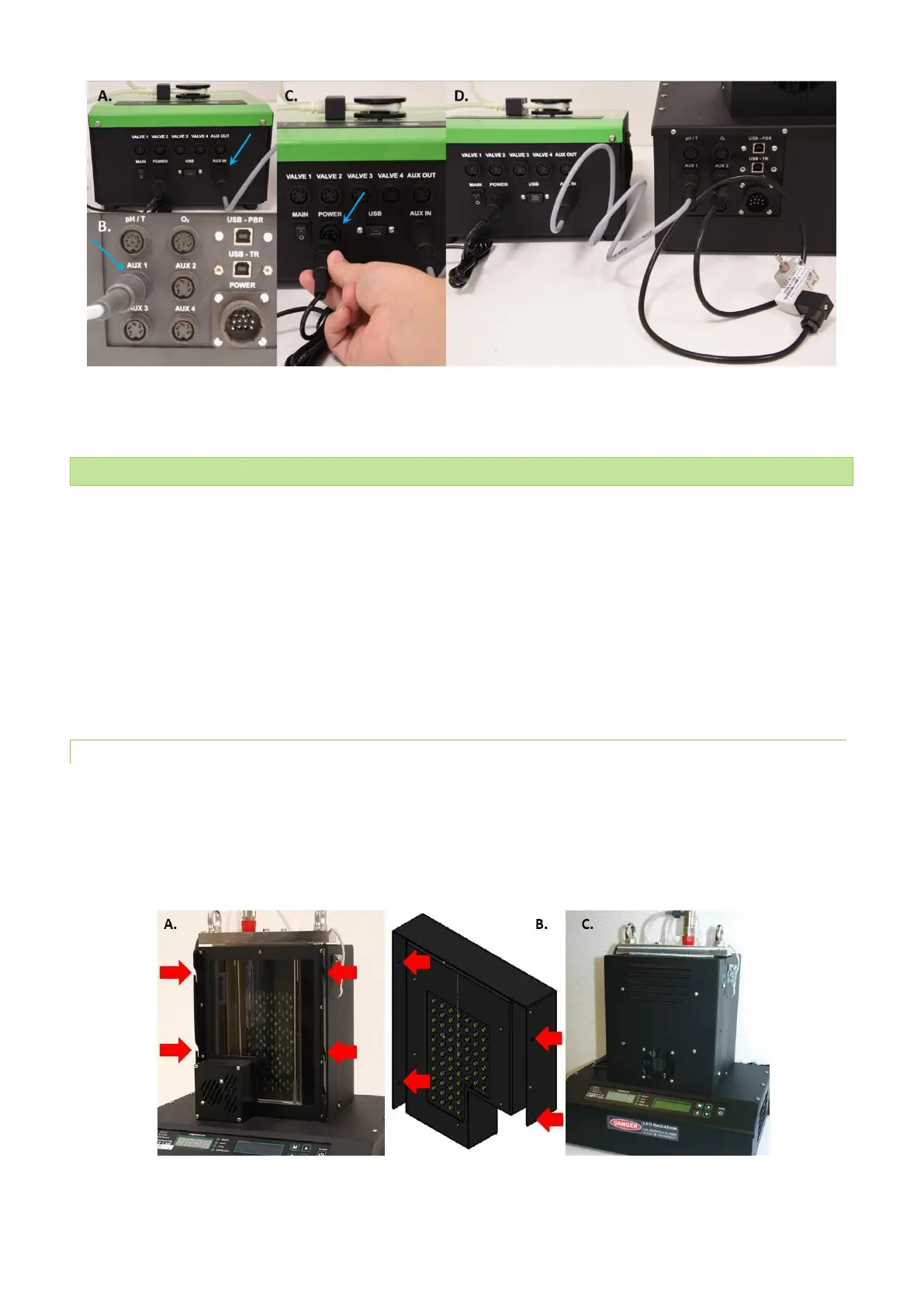

Fig. 49 Connection of peristaltic pump with PBR FMT150.2.
5.11 EXTERNAL LIGHT PANEL
The Photobioreactor can be supplemented with an additional external light panel that helps to accommodate specific
needs of different organisms or to increase illumination intensity. External light panel is offered in three versions:
• single color,
• single color with additional IR LEDs,
• bicolour.
See chapter 3.1.2 on page 10 for detail list of available versions. Please note that the external LED panel cannot be used
simultaneously with the magnetic stirrer. One or the other can be used at one time. Following instructions are designated
for PBR FMT150.1 version.
5.11.1 INSTALLATION
Follow instructions below to install and operate the external light panel:
• See the proper position of the holders in Fig. 50A.
• Position the Light Source by inserting its pivot joints into the respective slots in the holders – see Fig. 50B.
• Fig. 50C shows the proper position of the Light Source.
Fig. 50 Correct positioning of the external light panel and the final set-up of the PBR FMT150 with the external light source.
