PIAGGIO Beverly 400 E5 - Page 114

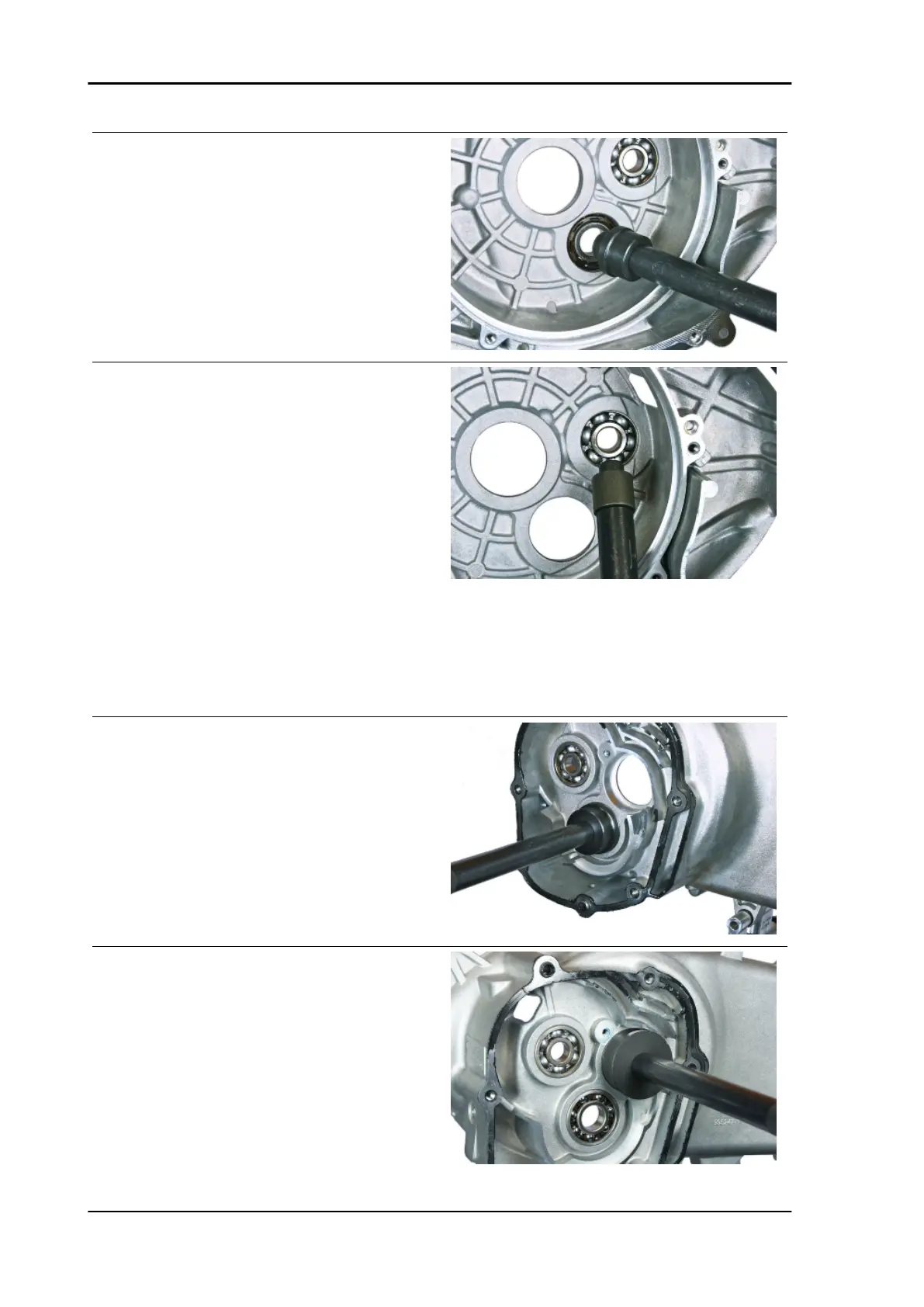

Wheel axle bearing removal
- Using the specific tools remove the bearing.
Specific tooling
020376Y Adaptor handle
020357Y 32 x 35-mm Adaptor
020363Y 20-mm guide
Removing the intermediate gear bearing
- Using the specific tools remove the bearing.
Specific tooling
020376Y Adaptor handle
020456Y Ø 24 mm adaptor
020412Y 15-mm guide
FITTING
- Heat the crankcase by means of the specific tool and then insert the bearings.
Specific tooling
020151Y Air heater
Fitting the Wheel axle bearing
- Using the equipment set a new bearing.
Specific tooling
020376Y Adaptor handle
020359S 42 x 47 mm Adaptor
020363Y 20-mm guide
Fitting the Clutch shaft bearing
- Using the equipment set a new bearing.
Specific tooling
020376Y Adaptor handle
020360S 52 x 55 mm adaptor
020363Y 20-mm guide
Engine Beverly 400 E5
ENG - 114
