PIAGGIO Beverly 400 E5 - Page 129

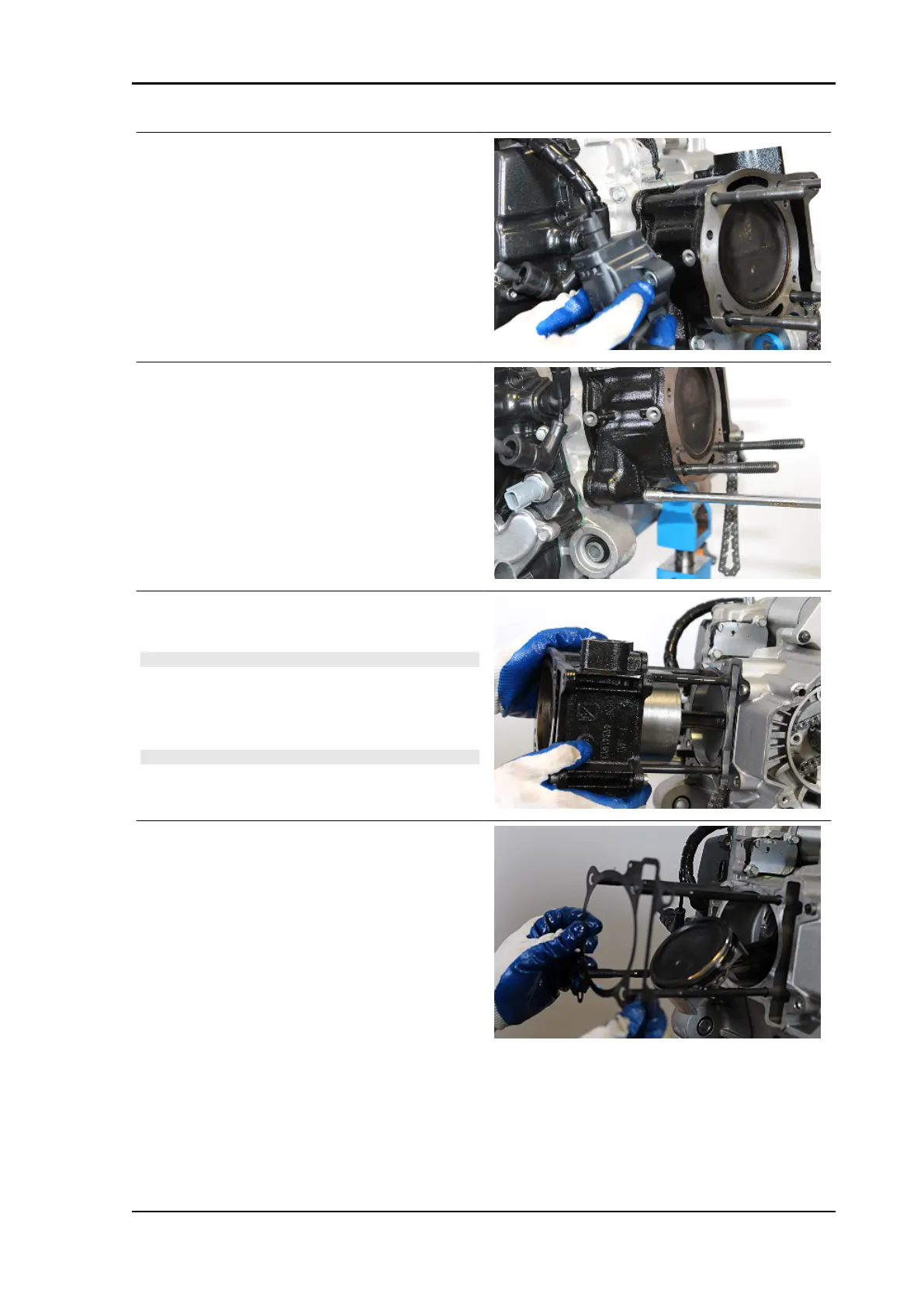

- Remove the coil.
- Unscrew and remove the lower cylinder fixing
screw.
- Remove the cylinder, paying attention to the cyl-
inder - head alignment dowels.
N.B.
IN ORDER NOT TO DAMAGE THE BASE GASKET WITH
THE PISTON LOCK FORK 020512Y DURING THE MOUNT-
ING PHASE, IT IS RECOMMENDED TO INSERT THE
ALIGNMENT DOWELS OF THE CYLINDER - CRANKCASE
UNDER THE CYLINDER DURING THE ASSEMBLY.
CAUTION
TO PREVENT DAMAGING THE PISTON, SUPPORT IT
WHILE REMOVING THE CYLINDER.
- Remove the base gasket.
Beverly 400 E5 Engine
ENG - 129
