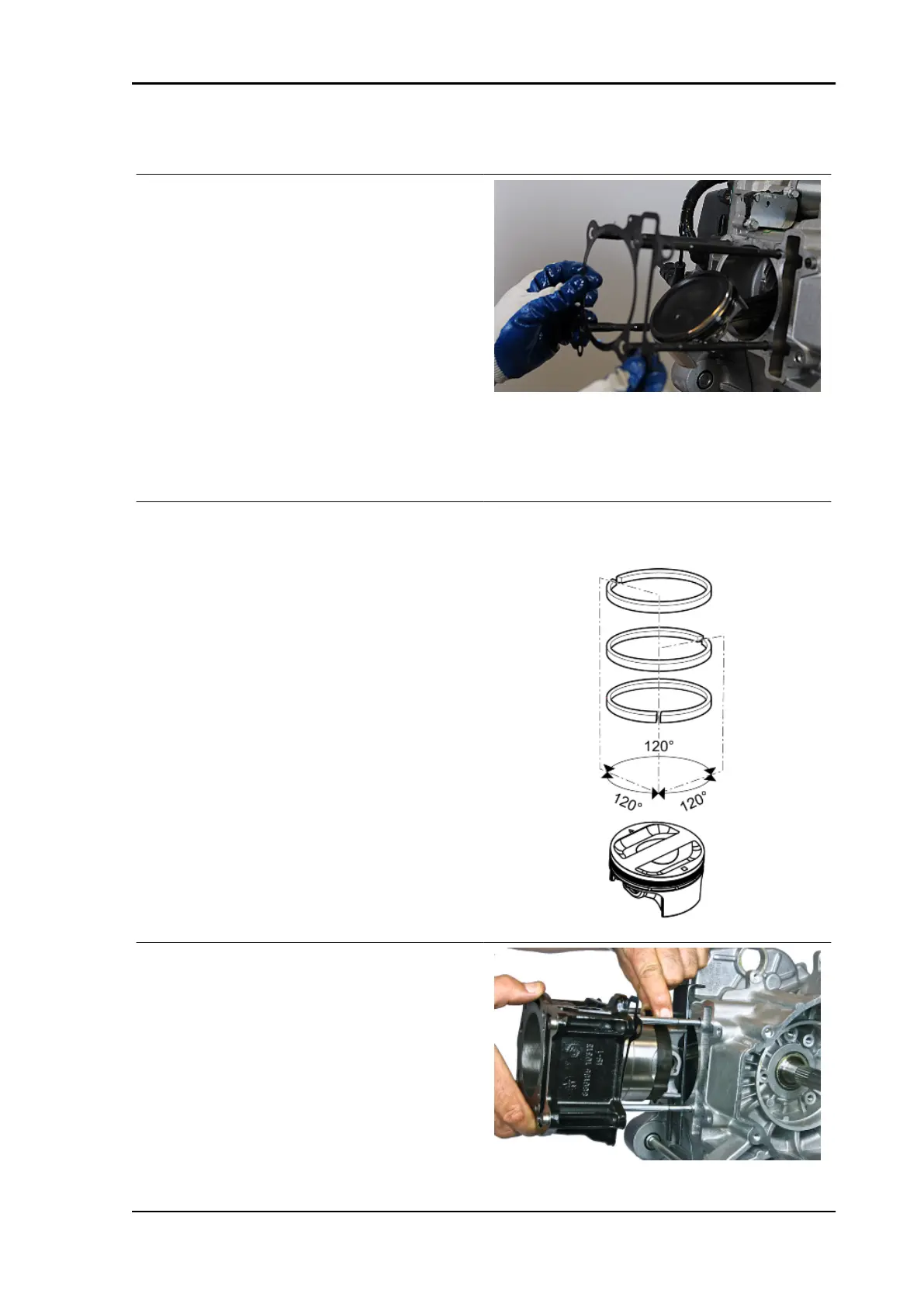

Refitting the cylinder
- Insert the cylinder base gasket.
- Fit the specific tool.
Specific tooling
020426Y Piston fitting fork
- Place the seal rings as indicated in the figure.
- Place the cylinder and the specific tool.
Specific tooling
020128Y Piston fitting ring
Beverly 400 E5 Engine
ENG - 131
