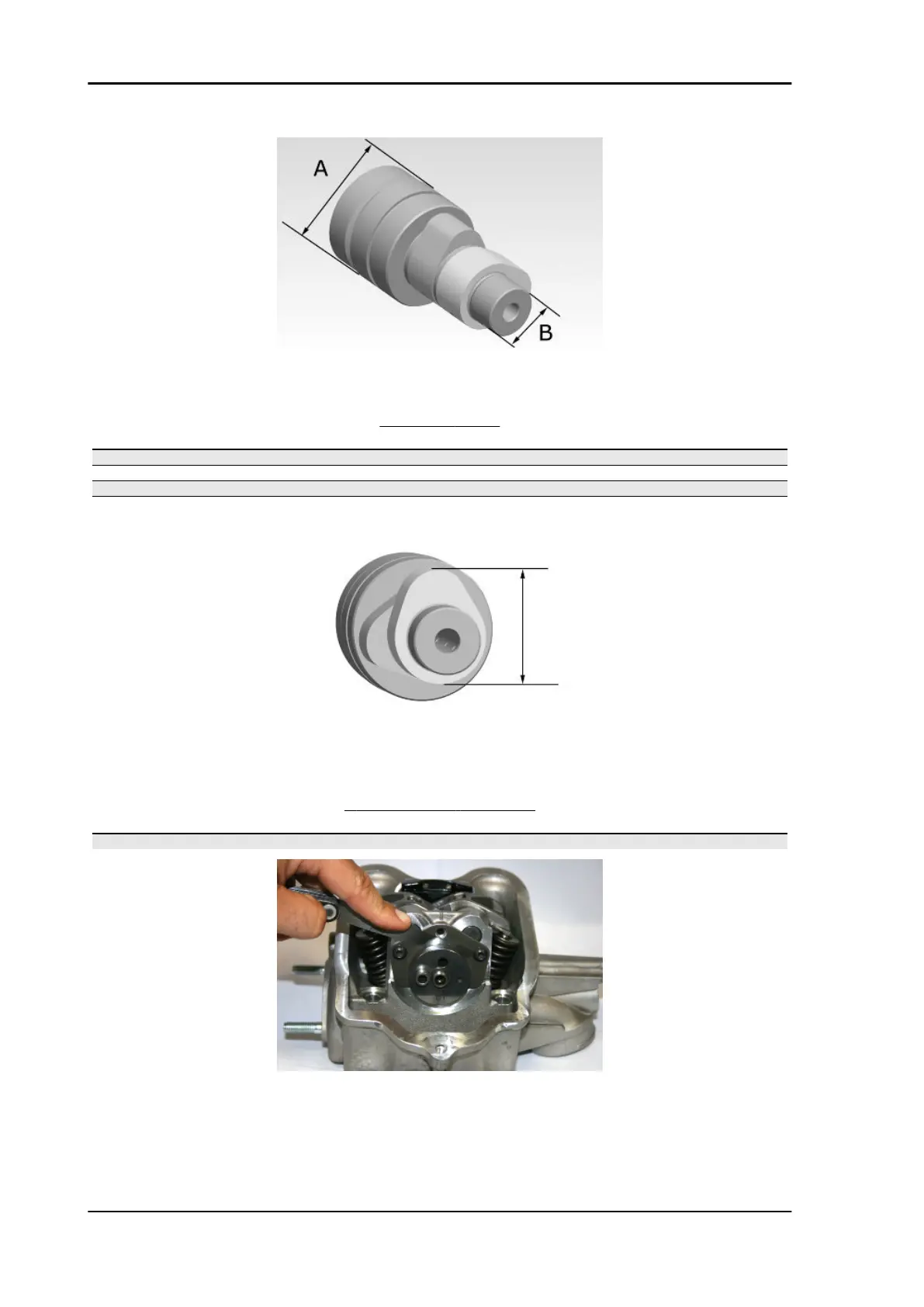

-Using a gauge, measure the cam height.
STANDARD HEIGHT
Specification Desc./Quantity
Camshaft check: Wear limit Exhaust: (1.178)in (29.945)mm
Camshaft check: Wear limit Intake: (1.218)in (30.948)mm
Camshaft check: Standard height Intake: (1.220±0.001)in (31.008±0.03)mm
Camshaft check: Standard height Exhaust: (1.181±0.001)in (30.005±0.03)mm
Check the axial clearance of the camshaft
CAMSHAFT AXIAL CLEARANCE
Specification Desc./Quantity
Camshaft check: Standard axial clearance: (0.003÷0.016)in (0.09÷0.41)mm
- Measure the external diameter of the rocking lever pins
- Check the rocker pins do not show signs of wear or scoring.
- Measure the internal diameter of each rocker
