Check there are no signs of wear on the pad from contact with the cam and on the jointed adjustment
plate.

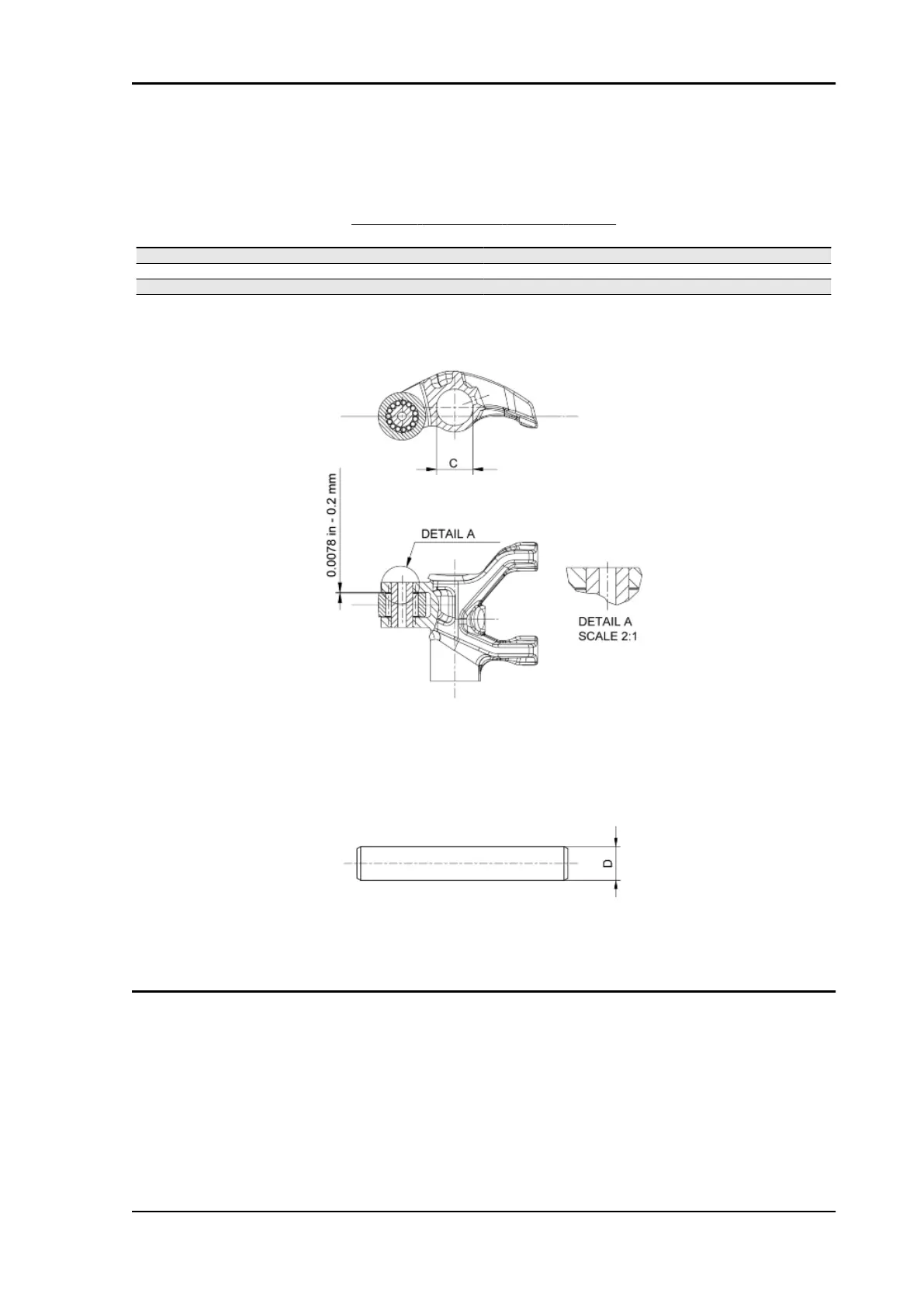

DIAMETER OF PINS AND ROCKING LEVERS
Specification Desc./Quantity
Rocking lever inside diameter: Standard diameter (C) Ø(0.512÷0.513)in Ø(13.015÷13.035)mm
Rocking lever pin diameter: Standard diameter (D) Ø(0.510÷0.511)in Ø(12.977÷12.985)mm
Nominal clearance (0.001÷0.002)in (0.030÷0.058)mm
Maximum clearance allowed (0.003)in (0.08)mm
Beverly 400 E5 Technical Data
DT - 41
