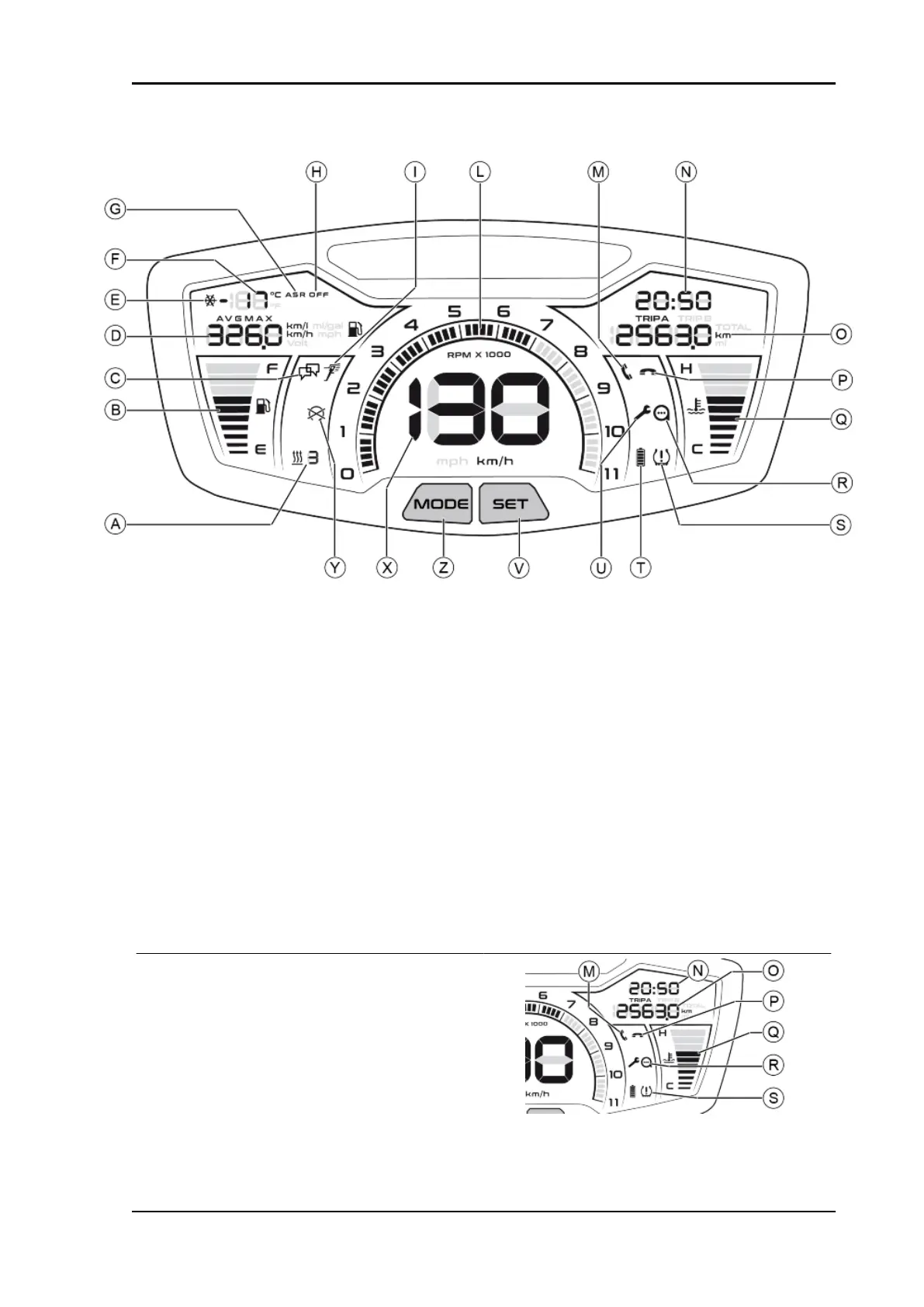

Key:
A = Heated accessory icon and heating level management provision (optional - requires both PMP3
control units and heating modules to be present)
B = Fuel gauge with fuel symbol
C = Icon for SMS message on smartphone
D = Multifunctional panel
E = Ice hazard icon
F = Ambient temperature indicator
G = ASR system activation icon
H = ASR system deactivation icon
I = Side stand icon
L = Tachometer
M = Smartphone multimedia profiles connection
icon (for further details, please consult the app
manual)
N = Clock
O = Total/partial odometer
P = Icon for missed call on the smartphone
Q = Coolant temperature gauge
Beverly 400 E5 Electrical system
ELE SYS - 69
