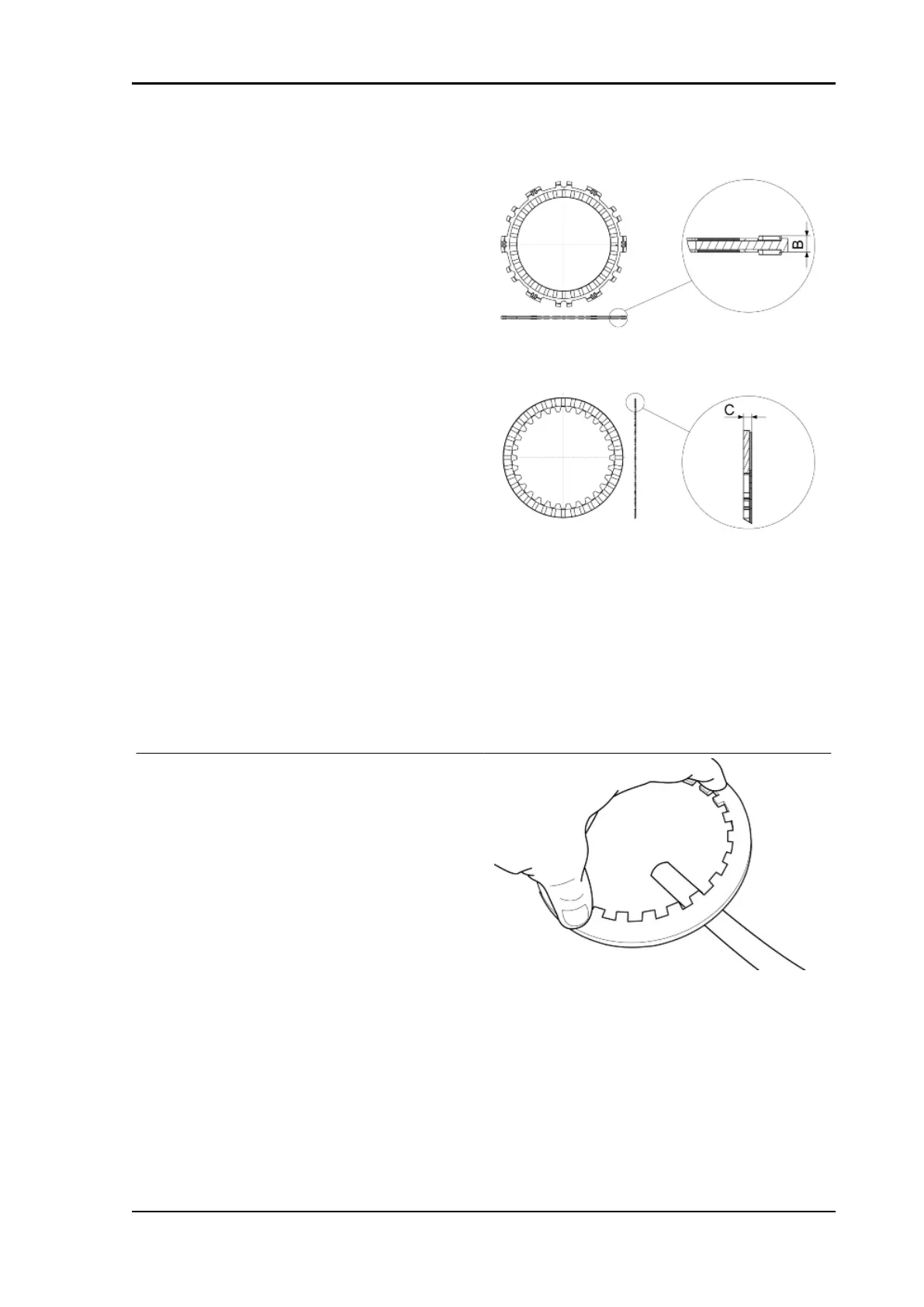

DISCS WEAR LIMIT
If the discs exceed the following wear limits, replace them all.
Characteristic
Clutch discs wear limit
Conductor disc wear limit «B» = 2.6 mm
Trimmed duct wear limit «C» = 1.7 mm
CLUTCH DISCS REVISION: MAXIMUM DEFOR-
MATION
Measure the maximum deformation of the discs by
positioning them on a reference plane and check-
ing with a feeler gauge. If out of specification,
replace them all.
Characteristic
Clutch discs maximum deformation
Max. duct disc unevenness «D» 0.2 mm
Beverly 400 E5 Engine
ENG - 97
