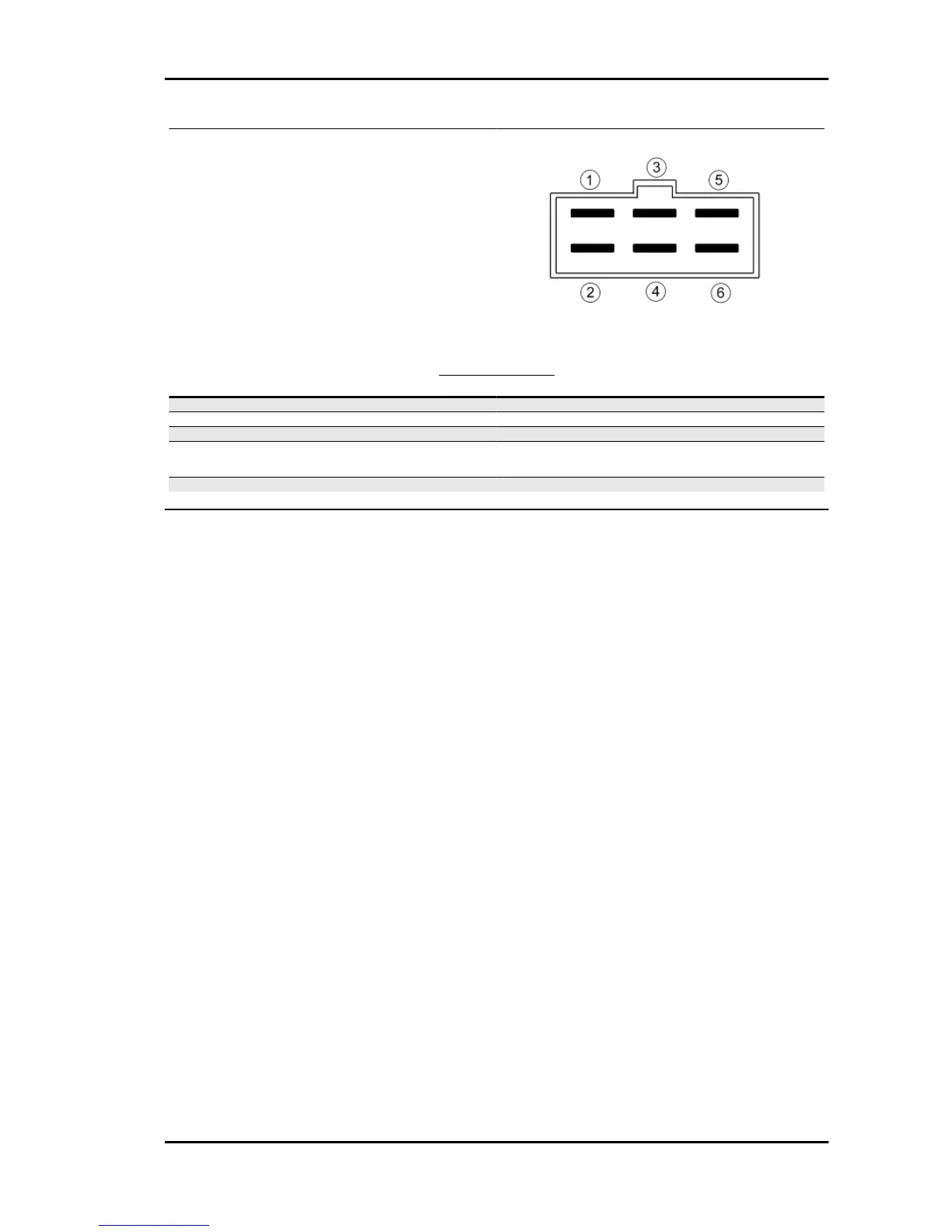

Connect the tester positive probe to pin 4 of the
connector of the fuel pump control device, and the
negative probe to pin 3, making sure there is bat-
tery voltage as indicated in the table.
PUMP SUPPLY
Specification Desc./Quantity
Key set to «KEY ON» Supply to the pump for 13 seconds
Engine revs from 0 to 200 rpm Always «OFF»
Engine revs from 200 to 1200 rpm Always «ON»
Engine revs from 1200 to 2000 rpm
0.2 seconds «ON»
9 seconds «OFF»
Engine rpm ] 2000 r.p.m. Always «ON»
Runner 125 - 200 Pump electrics check
- 115
