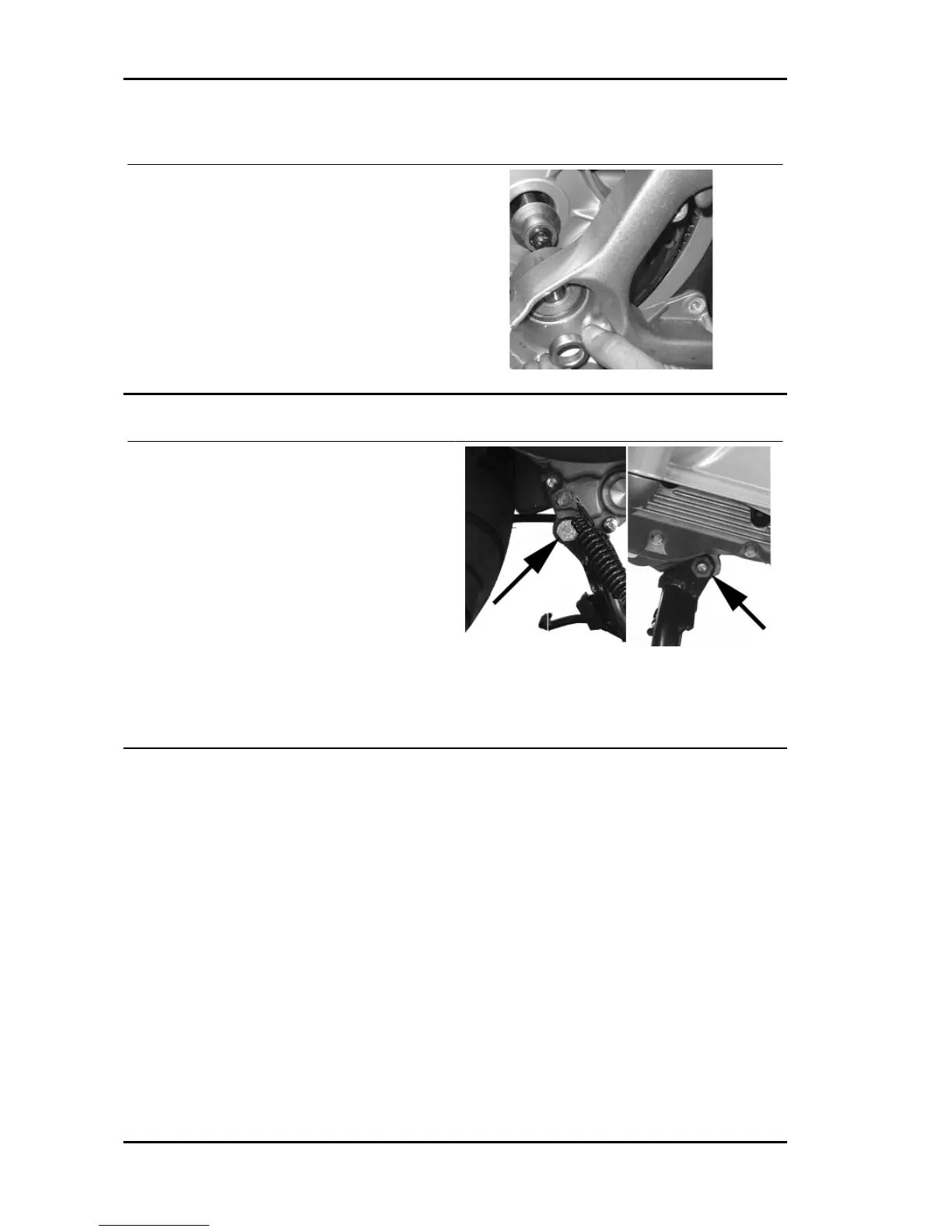

Refitting
- The refitting procedure is in the reverse order of
the removal operation being careful to respect the
torques indicated and the spacer assembly layout
as shown in the photo.
Locking torques (N*m)
Bracket fixing screws to the engine crank-
case: 20 ÷ 25 Lower shock absorber clamp 33 ÷
41 Wheel axle clamping 104 ÷ 126
Centre-stand
REMOVAL
- Use a jack to support the vehicle properly.
- Remove the two return springs from the centre
stand.
- Undo the nut shown in the figure.
- Remove the bolt from the right side.
- Remove the centre stand.
FITTING
- On refitting tighten the nut to the specified torque.
Locking torques (N*m)
Centre stand fixing bolt 25 ÷ 30 Nm
Suspensions Runner 125 - 200
SUSP - 238
