PIAGGIO Runner 125 - Piston Rings

ENGINE 125 COUPLING CATEGORIES
Name Initials Cylinder Piston Play on fitting
Cylinder A 56.997 ÷ 57.004 56.945 ÷ 56.952 0.045 - 0.059
Cylinder B 57.004 ÷ 57.011 56.952 ÷ 56.959 0.045 - 0.059
Piston C 57.011 ÷ 57.018 56.959 ÷ 56.966 0.045 - 0.059
Piston D 57.018 ÷ 57.025 56.966 ÷ 56.973 0.045 - 0.059
Cylinder 1st Oversize A1 57.197 ÷ 57.204 57.145 ÷ 57.152 0.045 - 0.059
Cylinder 1st Oversize B 1 57.204 ÷ 57.211 57.152 ÷ 57.159 0.045 - 0.059
Piston 1st Oversize C 1 57.211 ÷ 57.218 57.159 ÷ 57.166 0.045 - 0.059
Piston 1st Oversize D 1 57.218 ÷ 57.225 57.166 ÷ 57.173 0.045 - 0.059
Cylinder 2nd Oversize A2 57.397 ÷ 57.404 57.345 ÷ 57.352 0.045 - 0.059
Cylinder 2nd Oversize B 2 57.404 ÷ 57.411 57.352 ÷ 57.359 0.045 - 0.059
Piston 2nd Oversize C 2 57.411 ÷ 57.418 57.359 ÷ 57.366 0.045 - 0.059
Piston 2nd Oversize D 2 57.418 ÷ 57.425 57.366 ÷ 57.373 0.045 - 0.059
Cylinder 3rd Oversize A 3 57.597 ÷ 57.604 57.545 ÷ 57.552 0.045 - 0.059
Cylinder 3rd Oversize B 3 57.604 ÷ 57.611 57.552 ÷ 57.559 0.045 - 0.059
Piston 3rd Oversize C 3 57.611 ÷ 57.618 57.559 ÷ 57.566 0.045 - 0.059
Piston 3rd Oversize D 3 57.618 ÷ 57.625 57.566 ÷ 57.573 0.045 - 0.059
Piston rings
Crankcase - crankshaft - connecting rod
CRANKSHAFT
Titolo
Durata/Valore Testo Breve (< 4000 car.) Indirizzo Immagine
Crankshaft Crankshaft to crankcase axial
clearance
Crankshaft to crankcase axial clearance

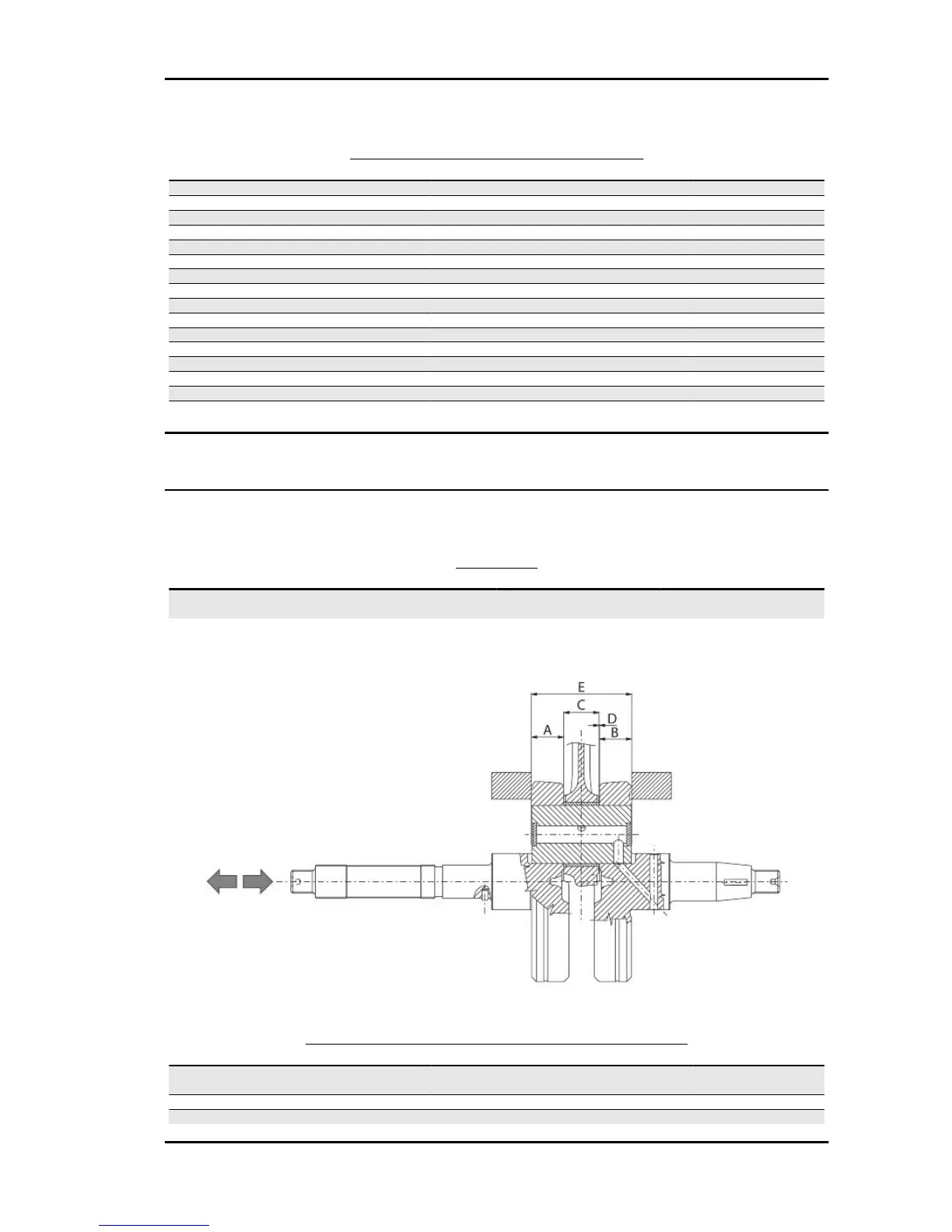

CRANKSHAFT/ CRANKCASE AXIAL CLEARANCE
Name
Description Dimensions Initials Quantity
Half-shaft, transmission
side
16.6 +0-0.05 A D = 0.20 - 0.50
Flywheel-side half-shaft 16.6 +0-0.05 B D = 0.20 - 0.50
Connecting rod 18 -0.10 -0.15 C D = 0.20 - 0.50
Runner 125 - 200 Characteristics
CHAR - 17
