PIAGGIO Runner 125 - Inspecting the Piston

Inspecting the piston
- Carefully clean the seal housings.

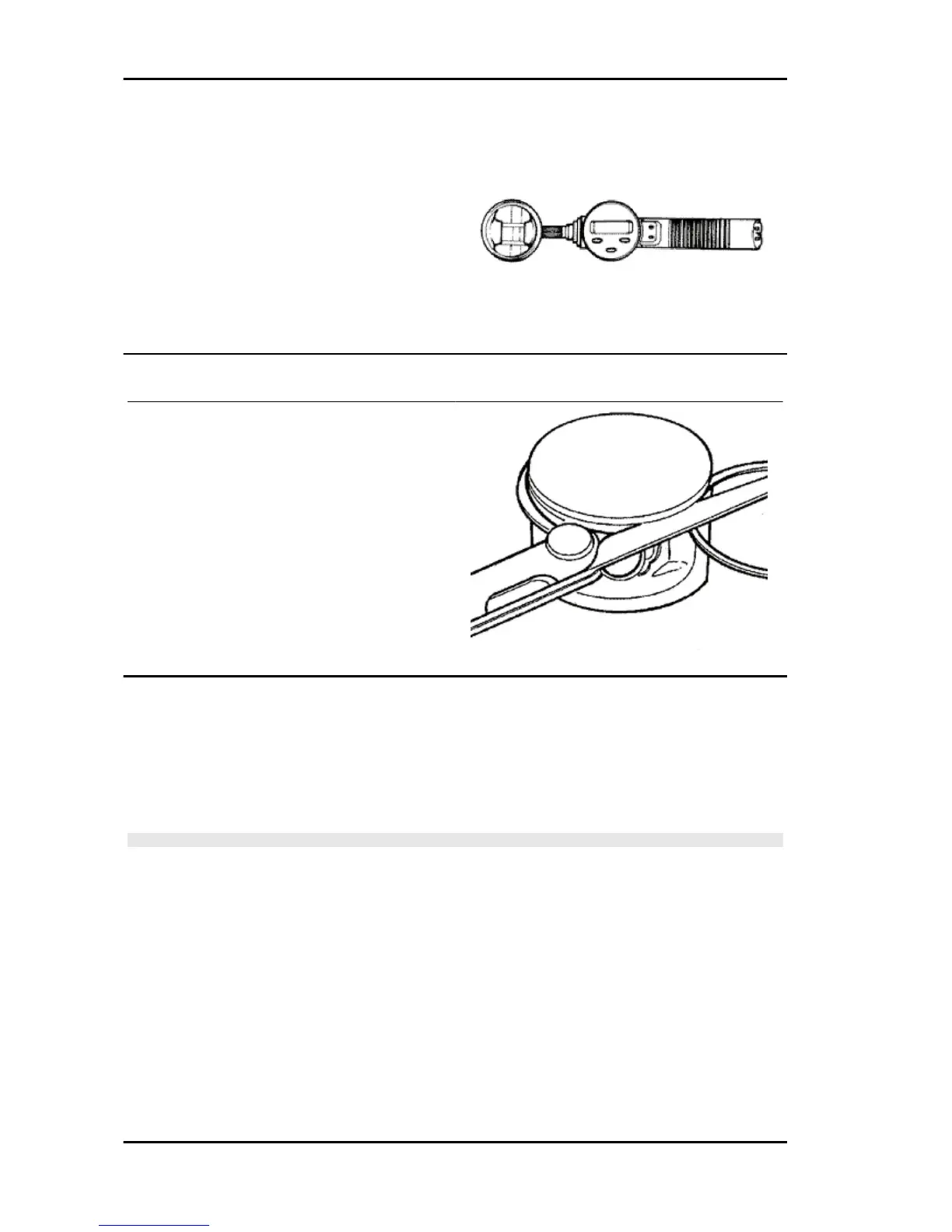

- Measure the coupling clearance between the
seal rings and the grooves using suitable sensors,
as shown in the diagram.
- If the clearance is greater than that indicated in
the table, replace the piston.
Inspecting the piston rings
- Alternately insert the three sealing rings into the cylinder, in the area where it retains its original di-
ameter. Using the piston, insert the rings perpendicularly to the cylinder axis.
- Measure the opening (see figure) of the sealing rings using a feeler gauge.
- If any measurements are greater than specified, replace the piston rings.
N.B.
BEFORE REPLACING ONLY THE PISTON RINGS, ENSURE THAT THE CLEARANCE BETWEEN
THE PISTON RINGS AND THE PISTON RING GROOVES, AND BETWEEN THE PISTON AND THE
CYLINDER, IS AS SPECIFIED. IN ANY CASE, NEW PISTON RINGS USED IN COMBINATION WITH
A USED CYLINDER MAY HAVE DIFFERENT BEDDING CONDITIONS THAN THE STANDARD.
