This section describes the operations to be carried out on the engine and the tools to be used.
Automatic transmission
Transmission cover

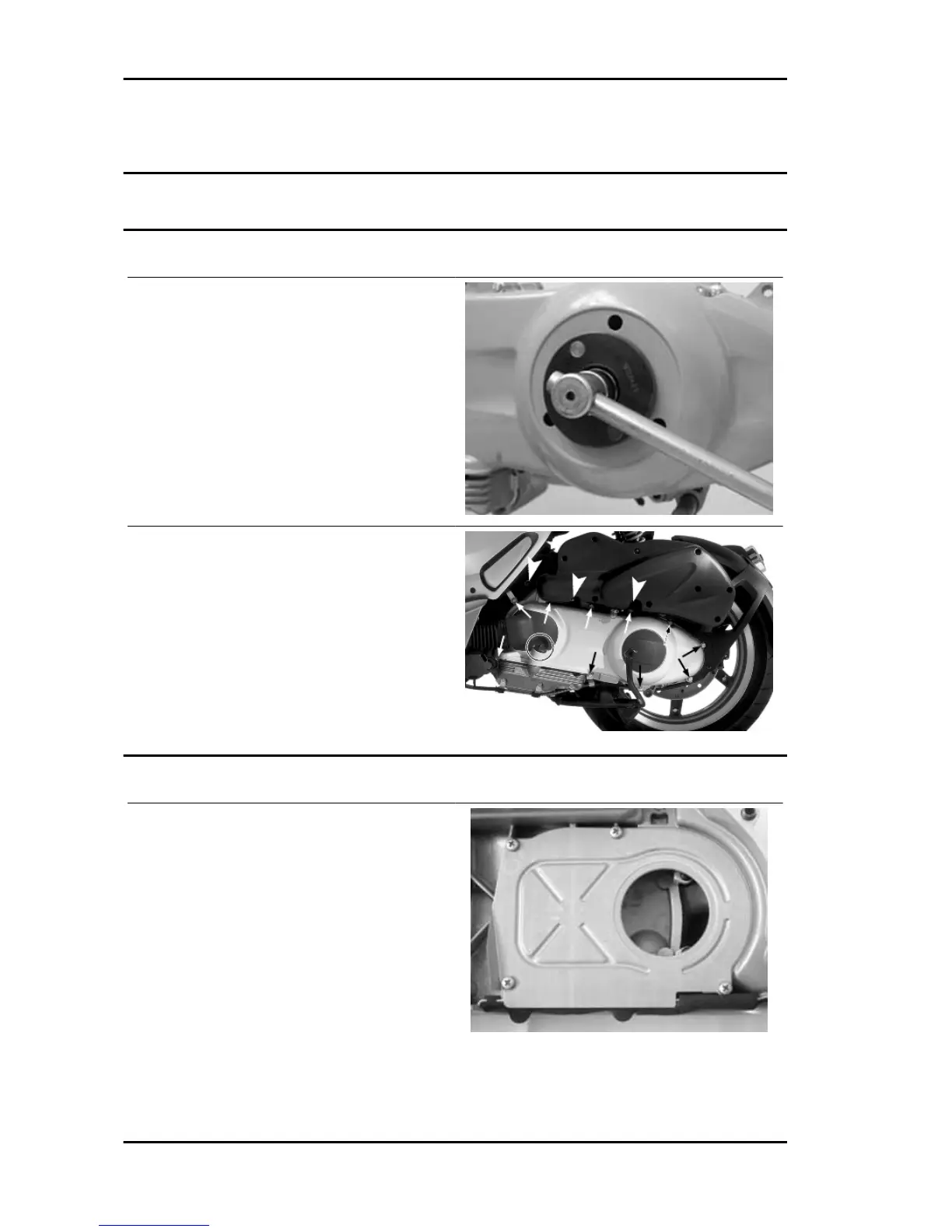

- To remove the transmission cover it is necessary
to remove the plastic cover first, by inserting a
screwdriver in the slotted holes. Using the clutch
bell lock wrench shown in the figure, remove the
driven pulley shaft locking nut and washer.
Specific tooling
020423Y driven pulley lock wrench
- Remove the cap/dipstick from the engine oil filling
hole.
- Remove the 2 retainers of the air filter housing.
- Remove the screw of the engine compartment
cover case.
- Remove the 10 transmission cover screws.
- Remove the transmission cover operating on the
front and rear tabs.
Air duct
- Remove the 4 screws and the housing.
Engine Runner 125 - 200
ENG - 126
