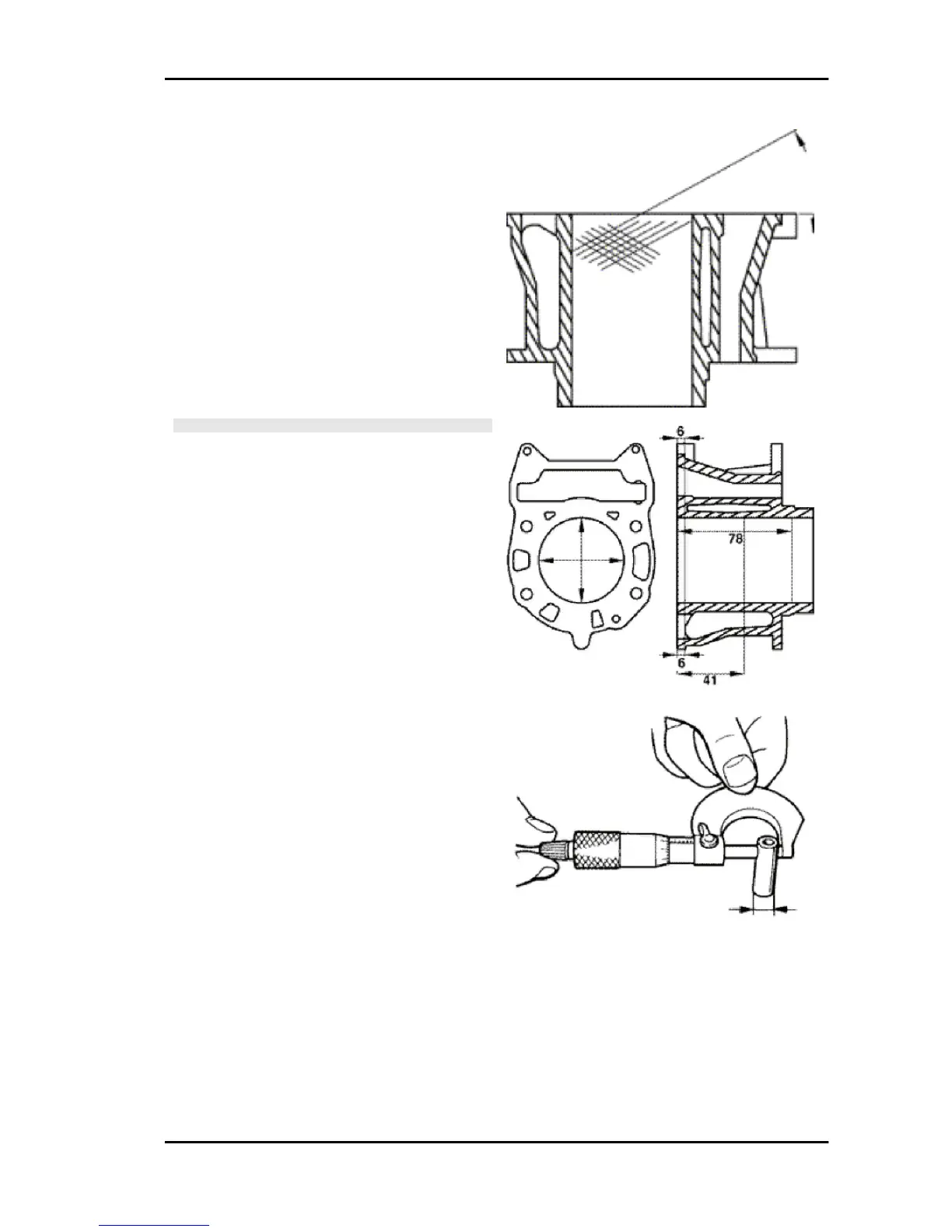

- The cylinder surface roughness should be 0.9
micron.
- This is indispensable for a good seating of the
sealing rings, which in turn minimises oil consump-
tion and guarantees optimum performance.
For 125 engines
- The pistons are oversized due to cylinder rectifi-
cation and are subdivided into three categories
1st, 2nd, 3rd with 0.2-0.4-0.6 mm oversize. They
are also classified into 4 categories A-A, B-B, C-
C, D-D.
N.B.
THE PIN HOUSINGS HAVE 2 LUBRICATION CHANNELS.
FOR THIS REASON MEASUREMENT OF THE DIAMETER
MUST BE CARRIED OUT ACCORDING TO THE AXIS OF
THE PISTON.
Characteristic
Pin diameter Standard diameter: 200 cc
68.990 ÷ 69.018
Pin diameter Standard diameter: 125 cc
56.997 ÷ 57.025
Pin diameter : Piston 200 cc
68.933 - 68.961 mm
piston diameter
56.945 ÷ 56.973 mm
Pin diameter: Standard clearance
0.015 ÷ 0.029 mm
Pin diameter Standard diameter
14.996 - 15.000 mm
Wrist pin seat on the piston: Standard diameter
15.001 ÷ 15.006 mm
Diameter of the wrist pin seat on the piston:
Standard clearance
0.001 ÷ 0.010 mm
Runner 125 - 200 Engine
ENG - 157
