Name Description Dimensions Initials Quantity
Spacer tool 51.4 +0.05 E D = 0.20 - 0.50
Slot packing system
200 models
Characteristic
Compression ratio, 200 models
11.5 ± 0.5 : 1

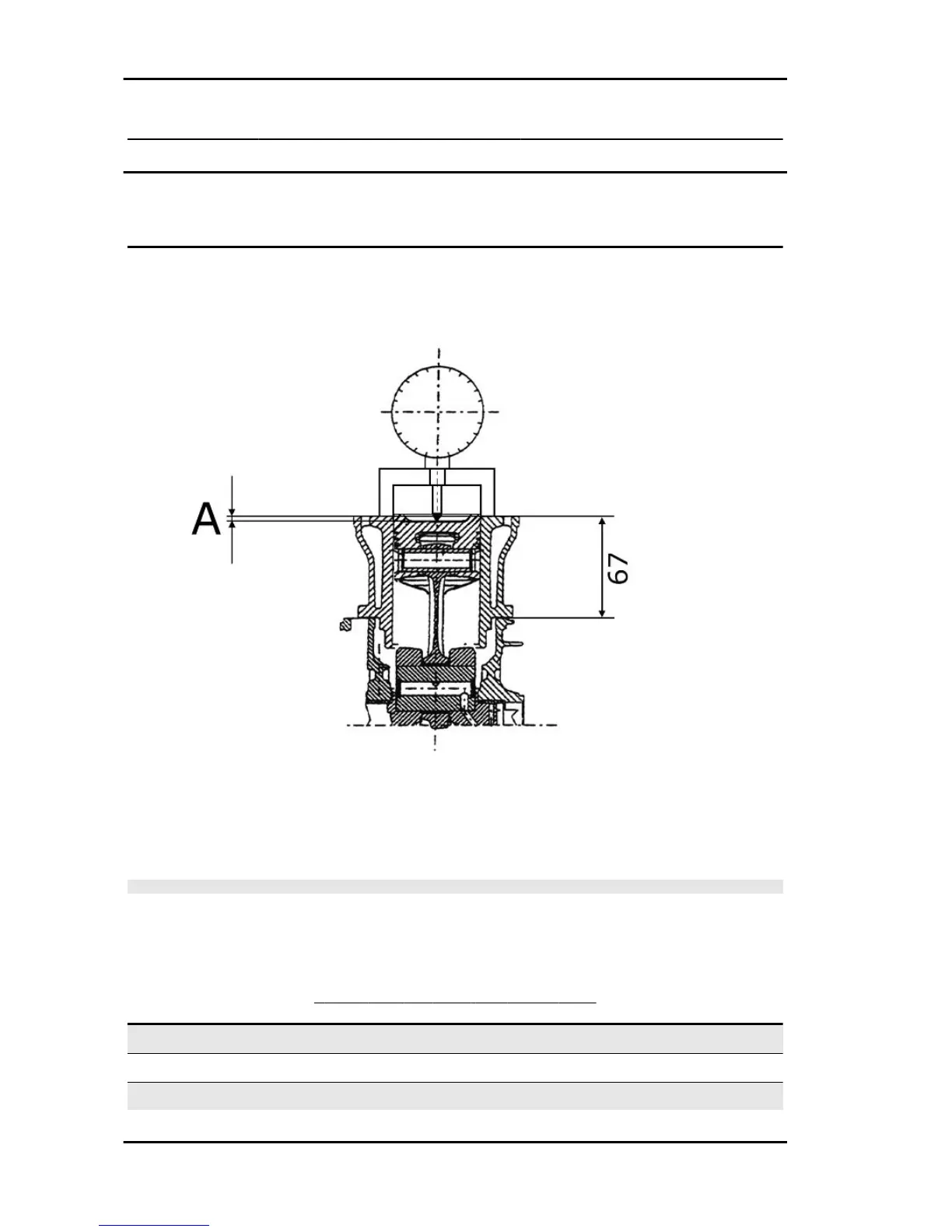

Measurement «A» to be taken, is a value of piston re-entry. It indicates by how much the plane formed
by the piston crown descends below the plane formed by the upper part of the cylinder. The further the
piston falls inside the cylinder, the less the base gasket to be applied (to recover the compression ratio)
and vice versa.
N.B.
NO GASKETS AND SEALS SHOULD BE ASSEMBLED BETWEEN THE CRANKCASE AND CYL-
INDER AND THE DIAL GAUGE EQUIPPED WITH SUPPORT SHOULD BE SET TO ZERO FOR
MEASUREMENT «A» TO BE TAKEN WITH THE PISTON AT TOP DEAD CENTRE POSITION AND
ON A RECTIFIED PLANE.
VERSION 200 WITH FIBRE HEAD GASKET (1.1)
Name
Measure A Thickness
Shimming 200 - Cylinder 67 - Head gas-
ket 1.1 - Base gasket 0.4
1.70 ÷ 1.60 0.4 ± 0.05
Shimming 200 - Cylinder 67 - Head gas-
ket 1.1 - Base gasket 0.6
1.60 ÷ 1.40 0.6 ± 0.05
Shimming 200 - Cylinder 67 - Head gas-
ket 1.1 - Base gasket 0.8
1.40 ÷ 1.30 0.8 ± 0.05
Characteristics Runner 125 - 200
CHAR - 18
