Characteristic
Compression ratio, 125 models
12 ± 0.5: 1

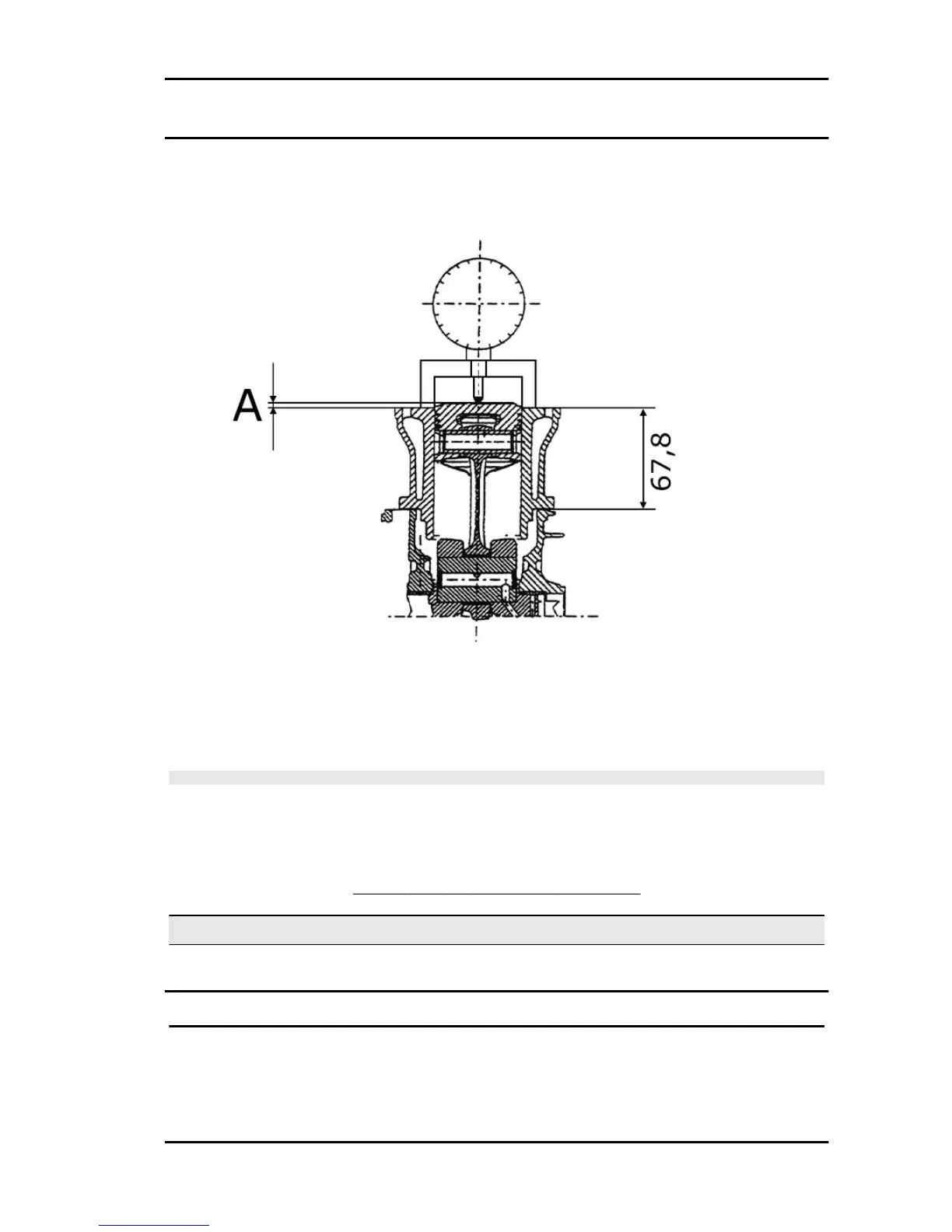

Measurement «A» to be taken, is a value of piston protrusion. It indicates by how much the plane formed
by the piston crown protrudes from the plane formed by the upper part of the cylinder. The further the
piston protrudes from the cylinder, the thicker the base gasket to be used (to restore the compression
ratio) and vice versa.
N.B.
NO GASKETS AND SEALS SHOULD BE ASSEMBLED BETWEEN THE CRANKCASE AND CYL-
INDER AND THE DIAL GAUGE EQUIPPED WITH SUPPORT SHOULD BE SET TO ZERO FOR
MEASUREMENT «A» TO BE TAKEN WITH THE PISTON AT TOP DEAD CENTRE POSITION AND
ON A RECTIFIED PLANE.
VERSION 125 WITH METAL HEAD GASKET (0.3)
Name
Measure A Thickness
Shimming 125 - Cylinder 67.8 - Head
gasket 0.3 - Base gasket 0.4
1.40 ÷ 1.65 0.4 ± 0.05
Shimming 125 - Cylinder 67.8 - Head
gasket 0.3 - Base gasket 0.6
1.65 ÷ 1.90 0.6 ± 0.05
Version 125
Characteristic
Compression ratio, 125 models
12 ± 0.5: 1
Runner 125 - 200 Characteristics
CHAR - 19
