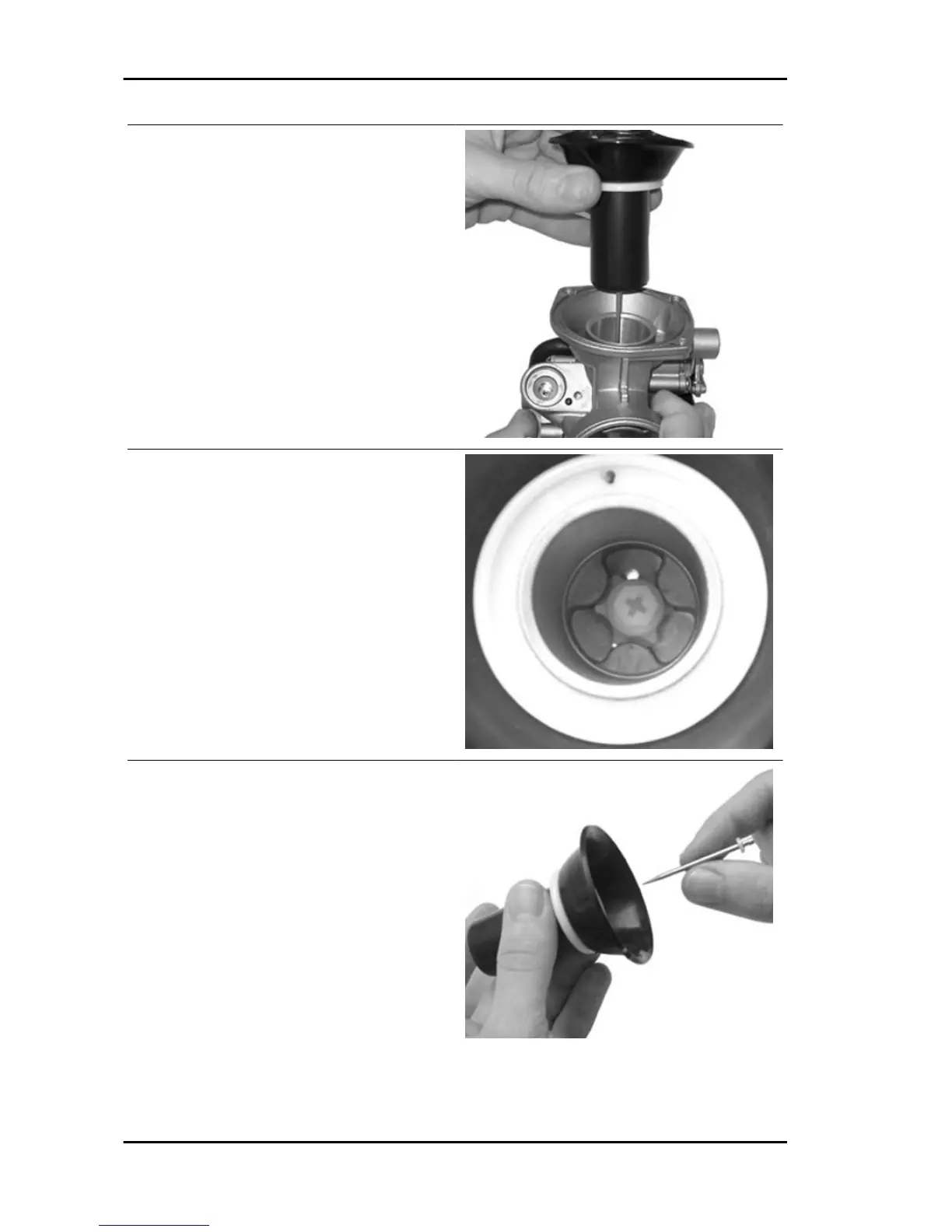

Remove the vacuum valve together with the dia-
phragm.
Unscrew the bayonet joint 1/8 of a turn, remove it,
take out the spring and vacuum valve plunger
Remove the 4 screws shown in the figure.
Engine Runner 125 - 200
ENG - 196
