TO CARRY OUT THIS CHECK PAY SPECIAL ATTENTION
NOT TO GENERATE SHORT CIRCUITS USE A CABLE
SECTION WITH A TERMINAL SUITABLE TO BE CONNEC-
TED TO THE STARTER.
Characteristic
Check the automatic starter: Kehin: Protrusion
value
XX ÷ XX mm at approx. 20°C
Check the automatic starter: Kehin maximum
protrusion
XXX ÷ XXX mm
Check the automatic starter: Keihin maximum
time
5 min
Walbro
- Check that the automatic starter piston is not de-
formed or rusty.
- Check that the piston slides freely from the seat
to the support.
- Check that the piston sealing gasket is not de-
formed.
- The starter must be more or less functional de-
pending on the ambient temperature.

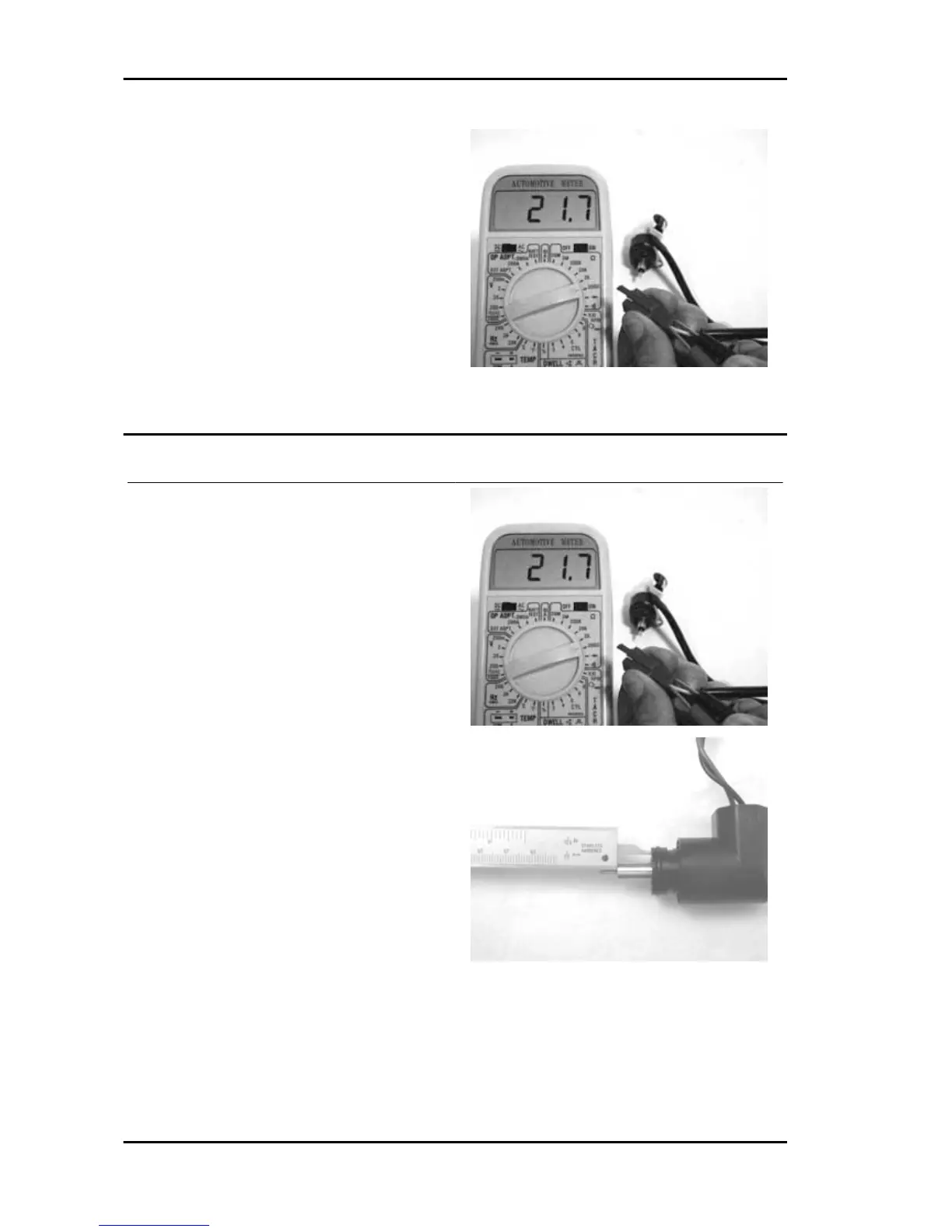

- Measure the protrusion of the piston as shown in
the figure and check its corresponding value.
- Make sure that the starter is adjusted for the am-
bient temperature.
- The starter should disconnect progressively by
means of electrical heating.
- Check the starter resistance when adjusted to the
ambient temperature (20 - 25° C).
With a 12V battery power the automatic starter and
check that the piston protrudes as much as possi-
ble.
- The correct warm up time depends on the ambi-
ent temperature.
- If protrusion, resistance or timing values are dif-
ferent from the ones prescribed, replace the start-
er.
Engine Runner 125 - 200
ENG - 214
