Removal
- Place a suitable container to collect the oil and
disconnect the oil pipe from the calliper operating
the joint.

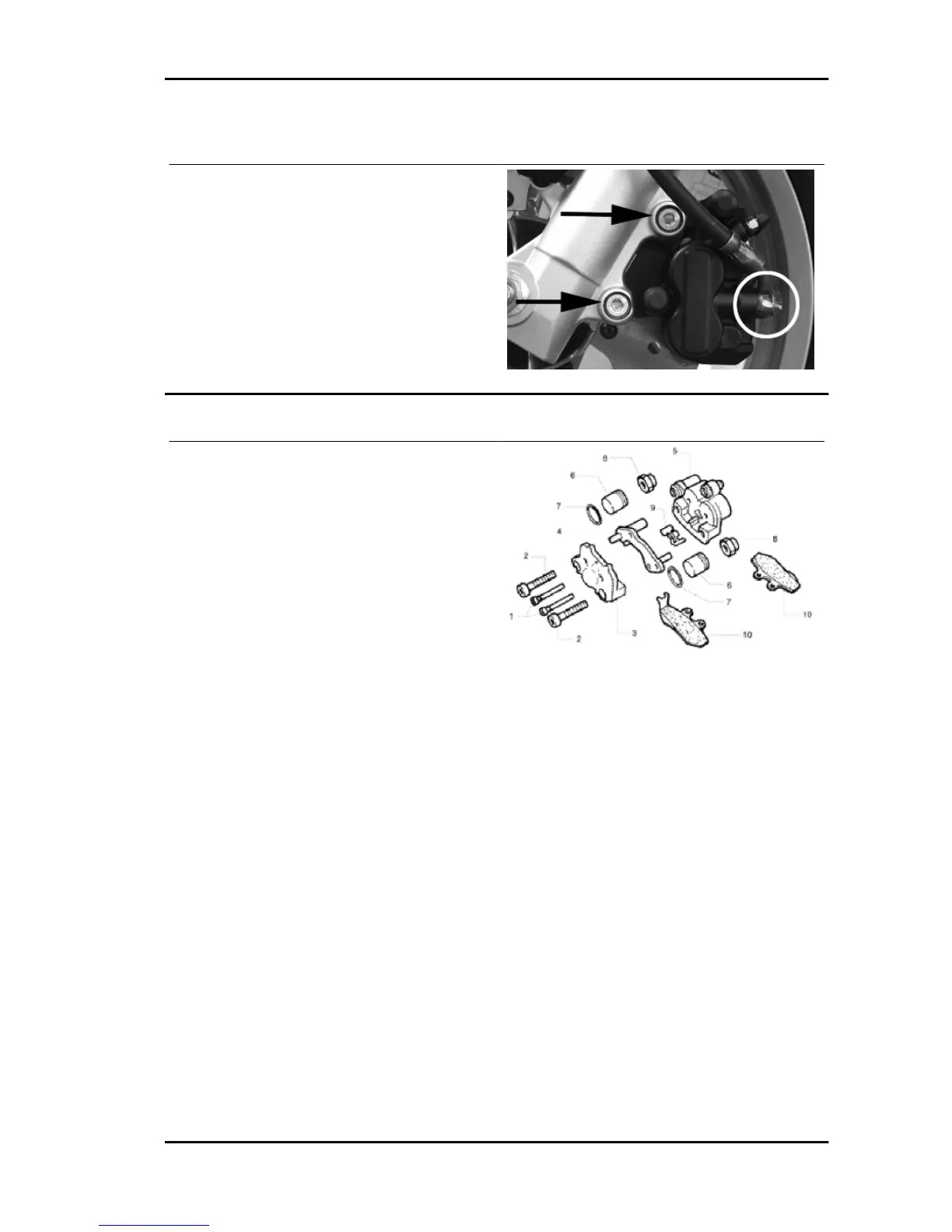

- Remove the two screws (shown in picture) fixing
the calliper to the fork and remove the fork.
Overhaul
Proceed as follows:
1) remove the two male hexagonal screws (1) and
take out the two pads (10);
2) remove the two male hexagonal screws (2) and
remove the reaction plate (3);
3) take out the fixed plate (4) from the guide;
4) remove the internal elements from the floating
body (5) with the help of short blows of com-
pressed air through the brake fluid pipe in order to
facilitate the expulsion of pistons (6).
5) Check:
- that the plates and the body are whole and in
good condition;
- that the cylinder and the floating body of the cal-
liper do not show signs of scratches or erosion,
otherwise replace the entire calliper;
- that the guides of the fixed plate are not scratched
or eroded, otherwise replace the entire plate;
- that the brake pad check spring works properly.
Refitting
1) insert the pistons (6) and the sealing rings (7) in
the body;
2) place the guide rubbers (8) and refit the fixed
plate (4);
3) assemble the reaction plate (3) tightening the
screws (2), insert the brake pad check spring (9)
