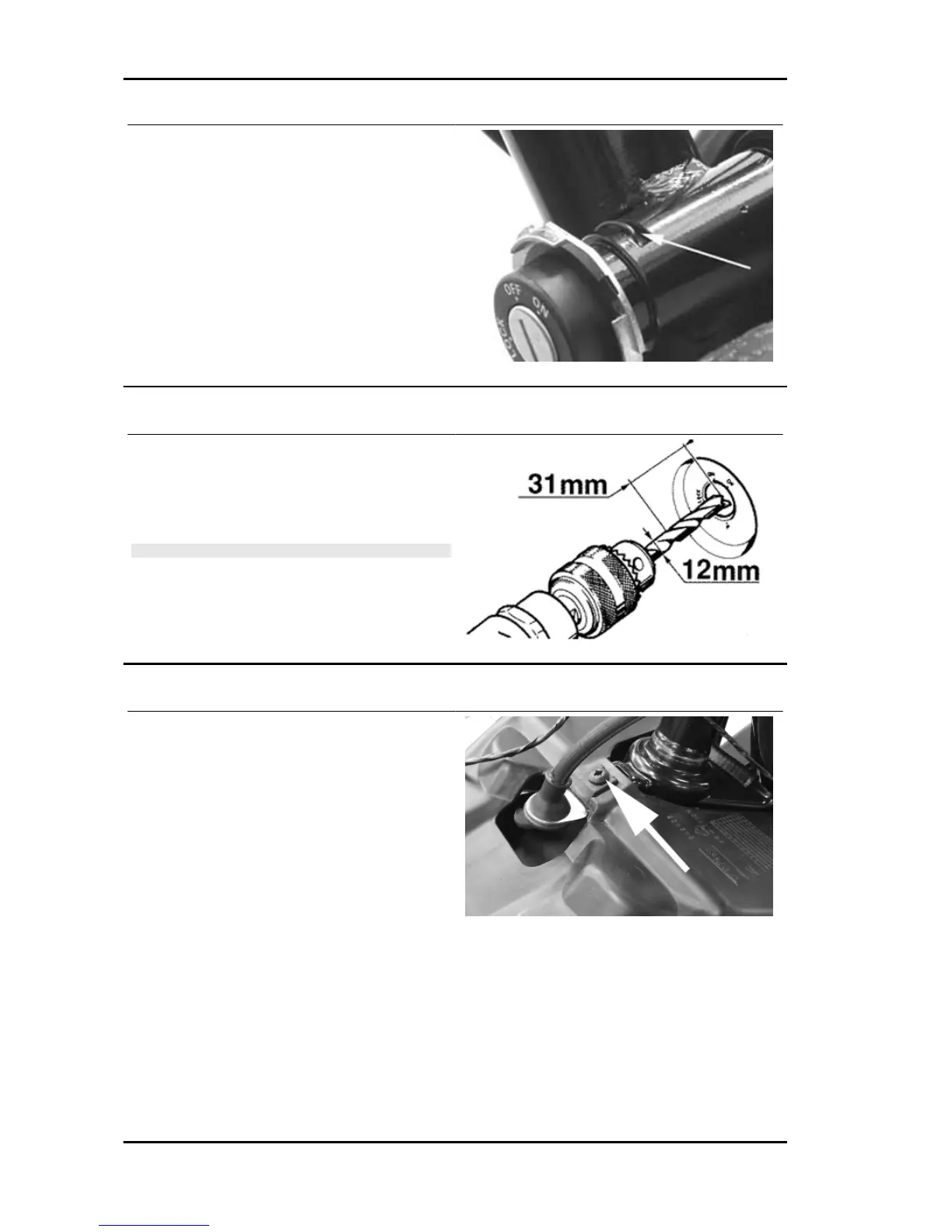

PIAGGIO Runner 125 - Front wheel housing

- Lightly push the master-cylinder and extract the
lock from the notch shown in the figure.
- Hence extract the master-cylinder complete with
the key-switch.
- For the reassembly proceed in the reverse order.
Removing the ignition key-switch when on *lock*
In position "Lock", it is not possible to access the
cylinder retaining spring. The spring must then be
removed as shown in the figure, allowing the lock
spring to be pressed out.
N.B.
FOR REASSEMBLY FROM THIS POSITION, RELEASE THE
STEERING WHEEL AND SET THE LOCK BODY (INSIDE
AND OUTSIDE PART) TO "OFF". THEN, PROCEED AS DE-
SCRIBED IN PARAGRAPH REMOVAL, LOCK IN OFF PO-
SITION.
Front wheel housing
•
Remove the front fork;
•
Unscrew the central stud of the wheel
well at the frame;
•
Disconnect the brake pipe to the pump
and pull it out;;
•
Remove the odometer transmission..
Chassis Runner 125 - 200
CHAS - 274
