Carburettor
- Disassemble the carburettor in its parts, wash all
of them with solvent, dry all body grooves with
compressed air to ensure adequate cleaning.
- Check carefully that the parts are in good condi-
tion.
- The throttle valve should move freely in the
chamber. Replace it in case of excessive clear-
ance due to wear.
- If there are wear marks in the chamber causing
inadequate tightness or a free valve slide (even if
it is new), replace the carburettor.
- It is advisable to replace the gaskets at every refit
WARNING
PETROL IS HIGHLY EXPLOSIVE ALWAYS REPLACE THE
GASKETS TO AVOID PETROL LEAKS

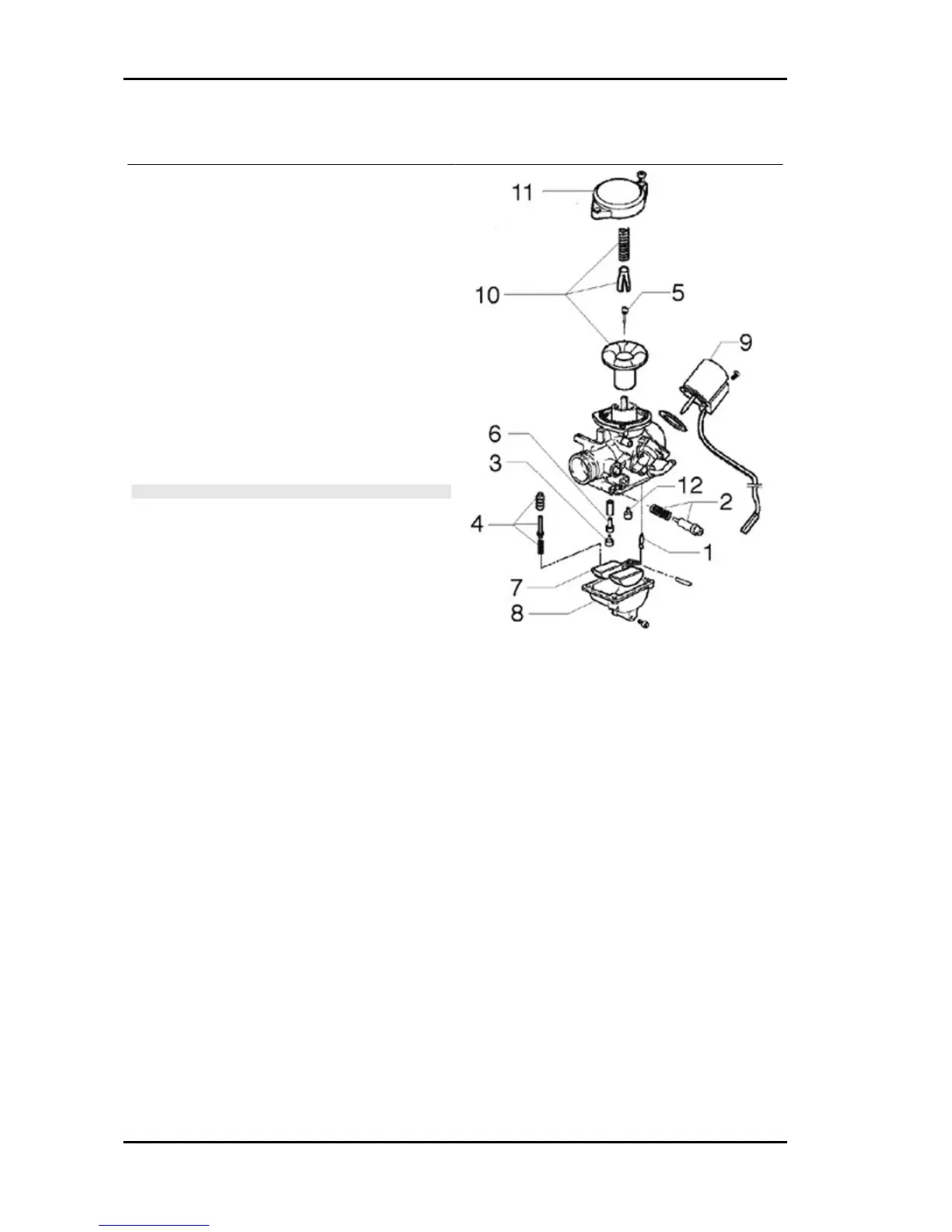

1. Diaphragm cover
2. Gas valve spring
3. Tapered pin support
4. Tapered pin spring
5. Tapered pin
6. Throttle valve diaphragm
7. Automatic starter
8. Idle speed adjustment screw
9. Accelerating pump rocking lever
10.Idle mixture adjustment screw
11.Float pin
12.Acceleration pump unit
13.Float
14.Tank
15.Minimum jet
16.Maximum jet
17.Diffuser
18.Tank drainage screw.
Maintenance Runner 125 - 200
MAIN - 38
