PIAGGIO Runner 125 - Page 65

30. Fuel pump
31. Automatic starter
32. Key switch
33. Starter control winding
34. Spark plug
35. HV coil
KEY
Ar: Orange Az: Sky Blue Bi: White Bl: Blue Gi: Yellow Gr: Grey Ma: Brown Ne: Black Ro: Pink Rs:
Red Ve: Green Vi: Purple

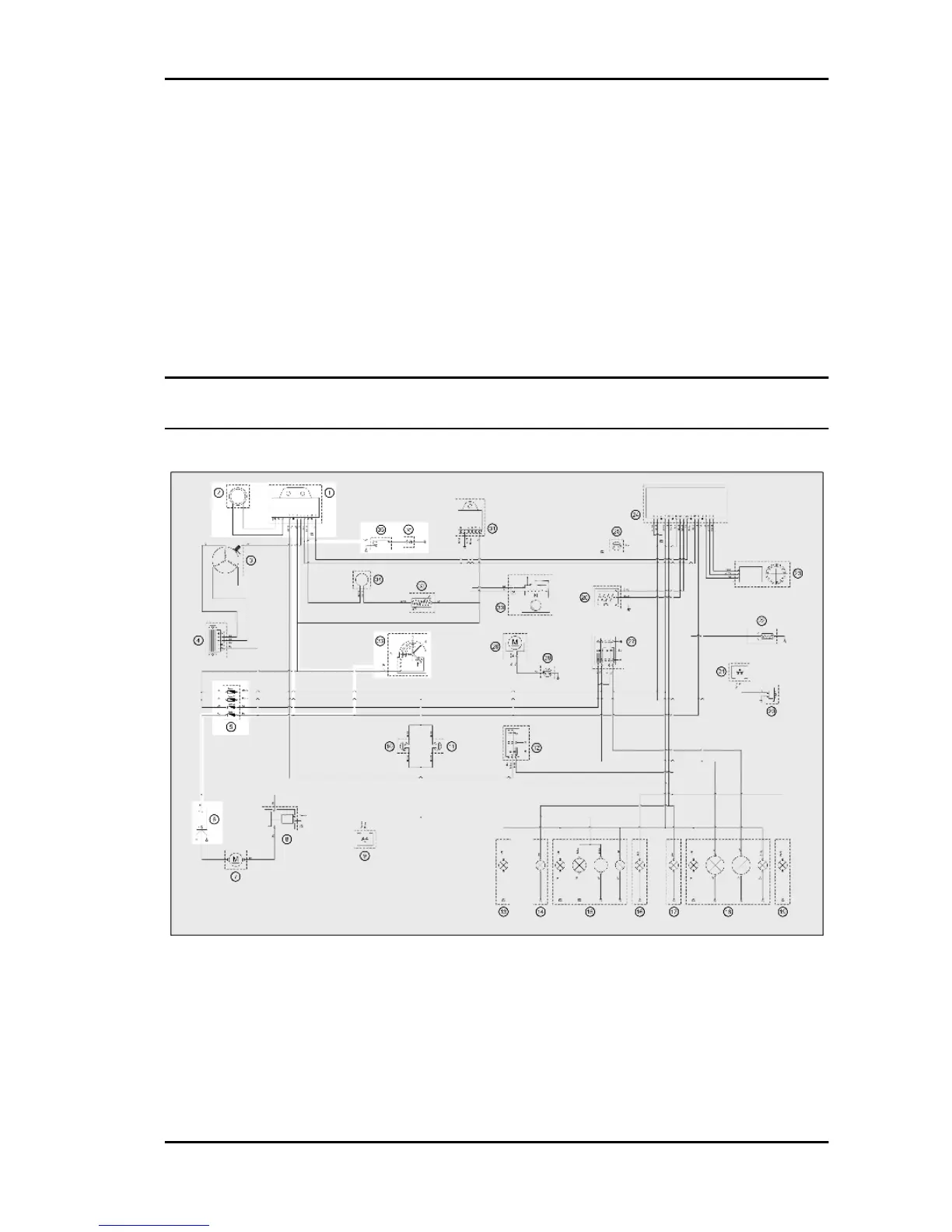

Conceptual diagrams
Ignition
KEY (With electric pump)
1. Electronic ignition device
2. Immobilizer aerial
5. Fuses
6. Battery
33. Key switch
35. Spark plug
Runner 125 - 200 Electrical system
ELE SYS - 65
