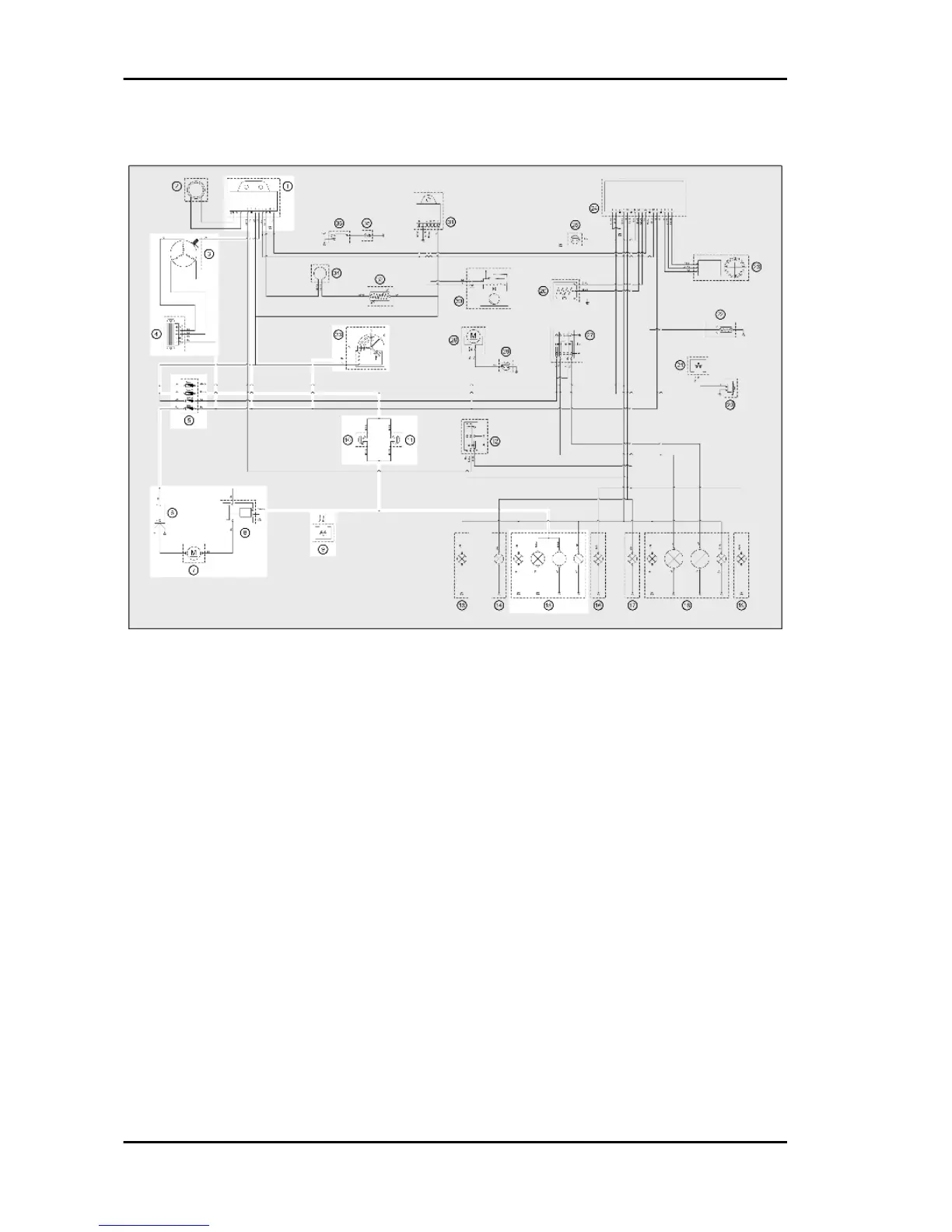

Battery recharge and starting
KEY (With electric pump)
1. Electronic ignition device
3. Magneto flywheel - Pick-up
4. Voltage regulator
5. Fuses
6. Battery
7. Starter motor
8. Start-up remote control switch
9. Start-up button
10. Stop button on rear brake
11. Stop button on front brake
15. Rear light
A. Tail light bulbs
B. Stop light bulbs
33. Key switch
Electrical system Runner 125 - 200
ELE SYS - 70
