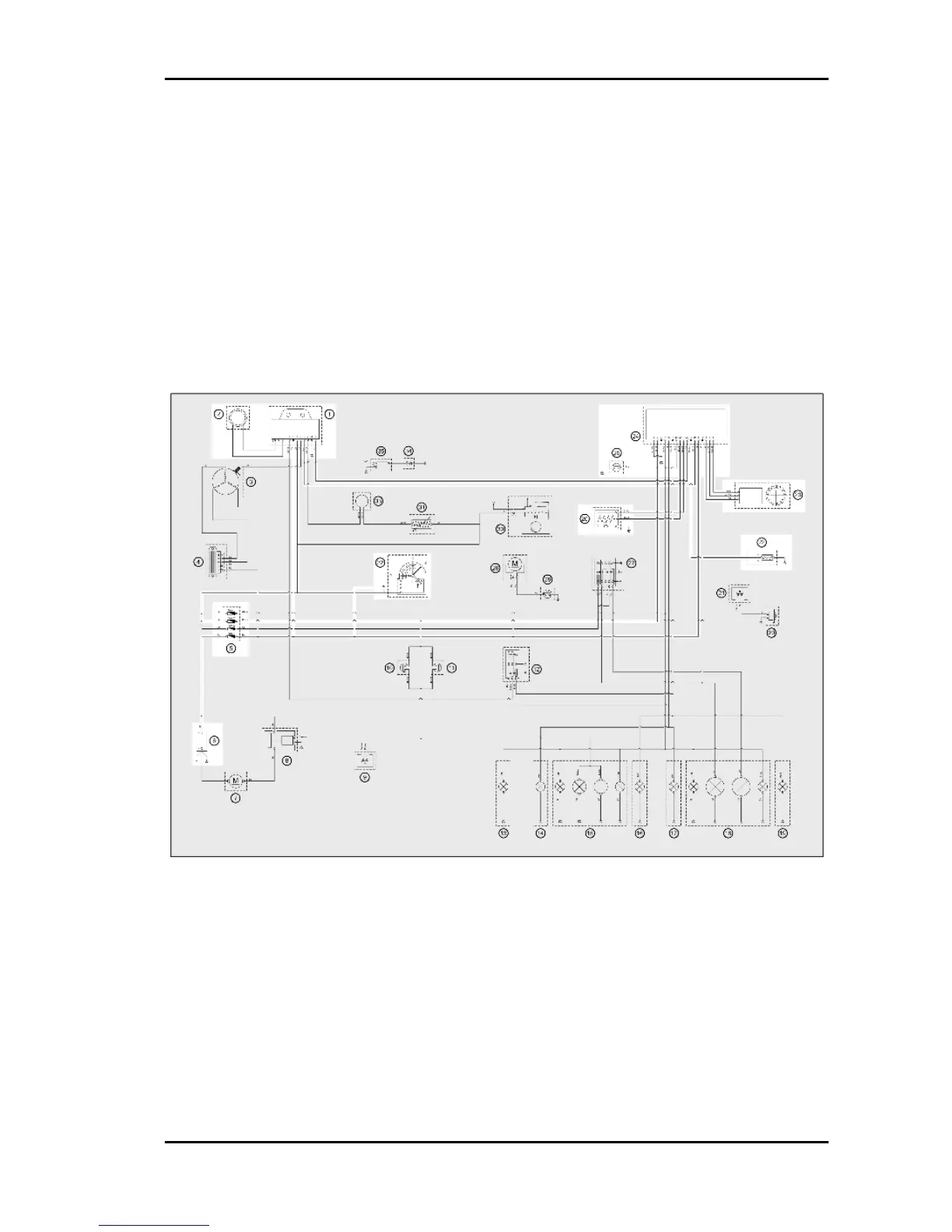

12. Fuel level
13. High-beam warning light
14. Right turn indicator
15. Left turn indicator
16. Oil reserve warning light
17. Low fuel warning light
20. Immobilizer LED
25. Engine oil pressure sensor
26. Fuel level transmitter
33. Key switch
KEY (Without electric pump)
1. Electronic ignition device
2. Immobilizer aerial
5. Fuses
6. Battery
22. Thermistor
23.Wheel turning sensor
24. Instrument panel
1. +Battery
2. +Key
Runner 125 - 200 Electrical system
ELE SYS - 73
